Product description
Sliding nut for quick and easy connection of FLS mounting rails

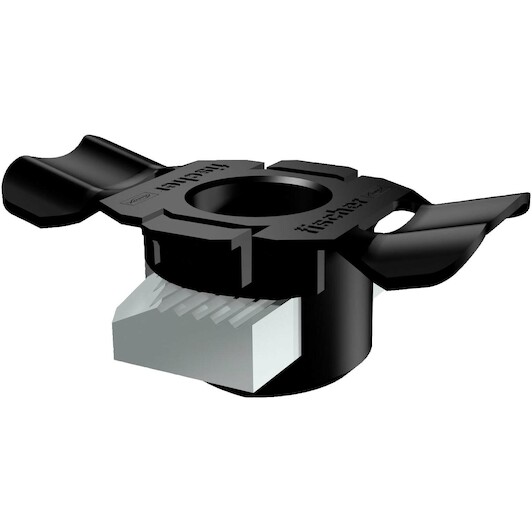

The fischer channel nut FSM Clix P quickly and easily connects the rails with each other and to the substrate with the construction elements SV and MW in the FLS mounting rails. The channel nut FSM Clix P is securely fixed by means of a 90° rotation. The contact tongue and the pronounced teeth of the channel nut make the installation process easier. fischer offers the FSM Clix P in the sizes M6, M8, and M10. The galvanised zinc version is suitable for installation in buildings. The fire protection certificate offers added safety.
- Quick assembly by 90° rotation of the sliding nut in the rail
- Simple creation of rail constructions in connection with FLS channels
- Application-appropriate corrosion protection through electrogalvanisation
- For use in dry interior areas
- Fire protection test R120
- MLAR R30 sample cable system test
- The special and disappearing thrust block of the sliding nut Clix P plastic holder enables a connection of connecting elements and channels without plastic interlayer to establish a safe longitudinal metallic connection
- The especially developed spring leg on the FSM Clix P guarantees the necessary contact pressure of the connector to the channel to help for a secure adjustment during installation
- The teeth on the sliding nut enable an exact and secure positioning in the FLS channel and ease the installation of connector elements
- The unique stop element on the FSM Clix P connector guarantees the accurate 90°-turn of the connectors in the channel to ensure a save and precise installation
Application

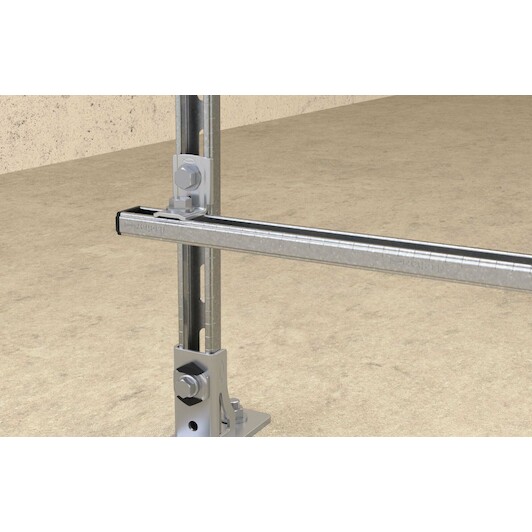

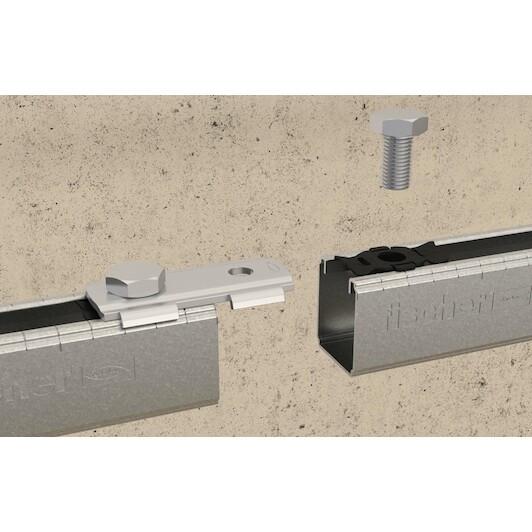

- FSM Clix P is suitable for interconnecting FLS channels by using connecting elements
- For use in dry interior areas
