Product description
The efficient with short expansion element

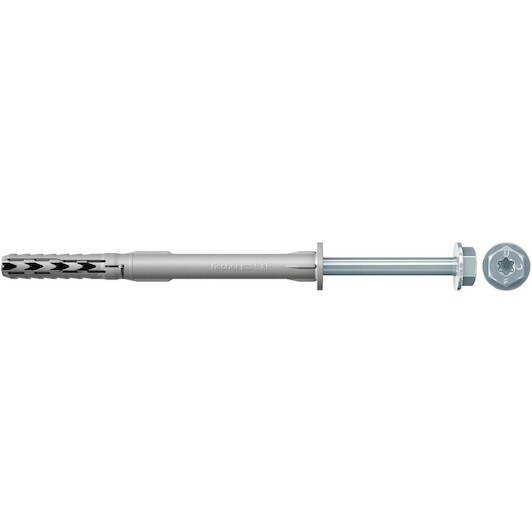

The fischer frame fixing SXR-FUS is a plug made of high-quality nylon along with the fischer hexagonal screw and moulded washer. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of only 50 mm, the frame fixing can be handled in an especially cost-effective manner for multiple fixing of non-load-bearing systems. The fischer frame fixing SXR-FUS is particularly recommended with the hexagonal screw and moulded washer for fixing metal constructions.
- Low anchorage depth saves time and costs
- ETA approval in concrete and masonry
- With safety screw with hexagonal head and moulded washer
- Plug expands in solid building materials
- The plug anchors itself in the cavity in perforated building materials
- The special functioning allows for use in solid and hollow building materials with an anchorage depth of just 50 mm, ensuring an economical fixing
- The ETA assessment covers use in a range of solid and hollow building materials, and guarantees a secure fixing
- The specially developed combination of plugs and screws ensures the very best handling. The plug has a noticeable hold, making installation more convenient
- The extensive range offers the right plug for every fixing
Suitable for
- The SXR is suitable for push-through installation

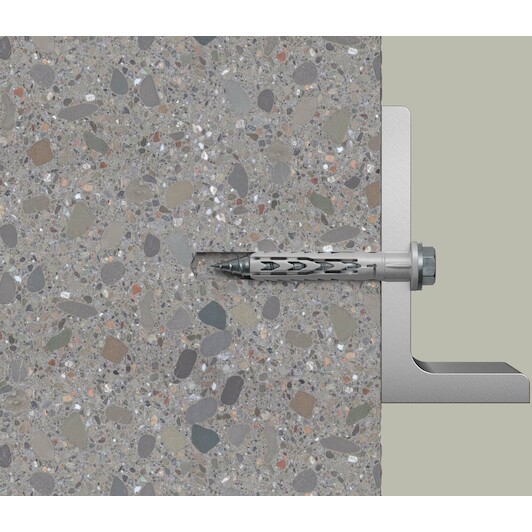

- The SXR expands in solid building materials

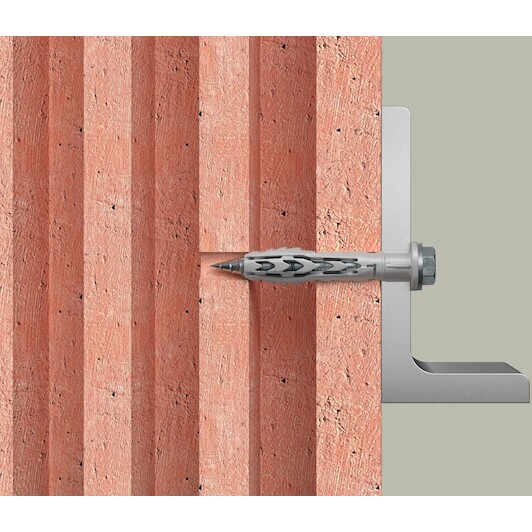

- In hollow building materials the loads are transferred in the area of the block fillets
- With vertically perforated bricks, only use rotary drilling (no impact drilling)
- Countersunk head screws are recommended for fixing timber constructions. For metal constructions, plug with wide sleeve rim and hexagon head screws with moulded washer
Building materials
Approved for:
- Concrete >= C12/15
- Vertically perforated brick
- Hollow blocks made from lightweight concrete
- Perforated sand-lime brick
- Solid sand-lime brick
- Aerated concrete
- Solid block made from lightweight and normal weight concrete
- Solid brick
- Thermal insulation blocks
Also suitable for:
- Natural stone with dense structure
- Solid panel made from gypsum
Application
- Façade, ceiling and roof substructures made of wood and metal
- Windows
- Gates and doors
- Wardrobes
- Kitchen hanging cabinets
- Squared timbers
- Beams
- TV consoles
- Wall covering
- Metal brackets
- Metal supports
- Cable ducts
- Cable trays
