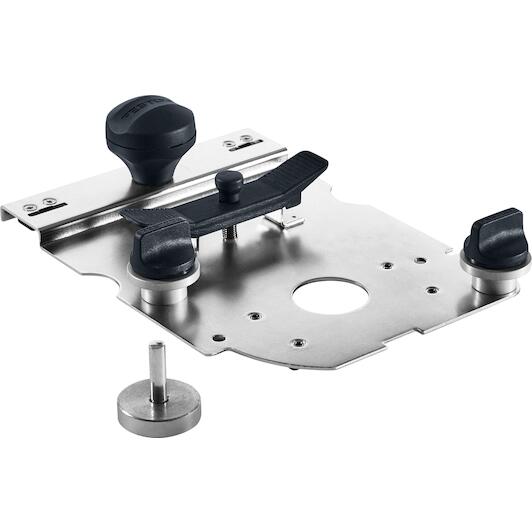

FESTOOL FP-LR 32 guide plate - 494340

Scope of delivery

• Centring mandrel

Product description

Holes in series.

Hole series are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The hole series drilling system is a set for fast and simple production of series of holes for shelf supports, rear wall supports and fittings with the OF 1010 or OF 1400 router.

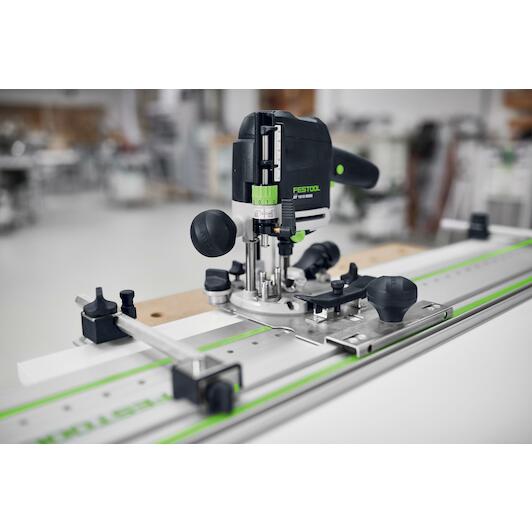

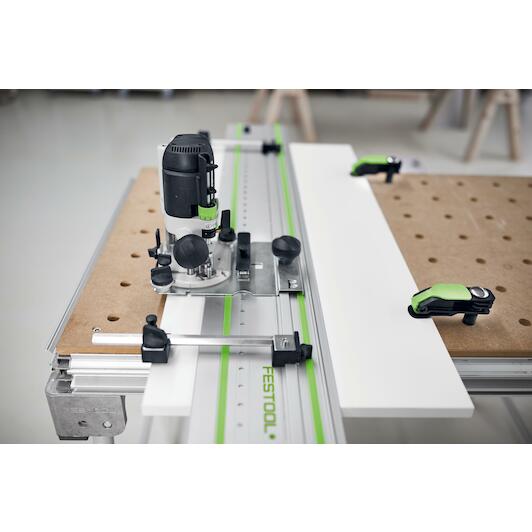

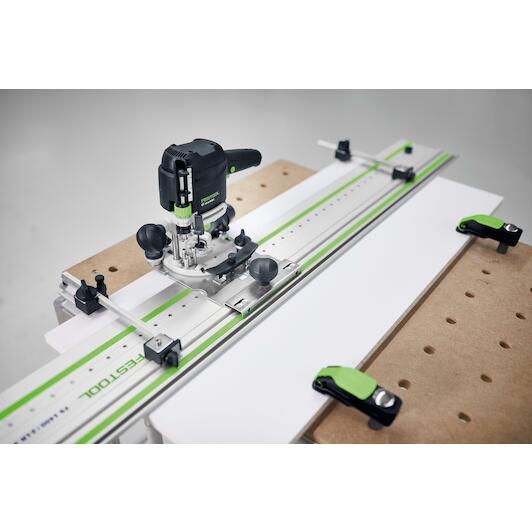

• With the LR 32 system - comprising the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the hole drilling system - precise rows of holes spaced 32 mm apart can be drilled with the Festool router
• The LR 32 set can be supplemented with this additional guide plate, if for instance a second router with a different drill should be prepared
• Centring mandrel for perfect centring of the router on the guide plate
• Spring-loaded positioning rocker for effective operation when drilling the hole series
• Perfectly guided through fine adjustment of the guide play and additional handle on the guide plate

Ideally suited for

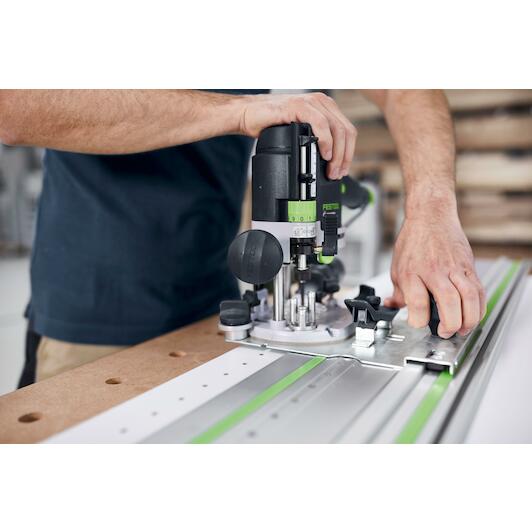

• Preparing holes series with 32 mm spacing
• Drilling of fittings like cupboard hinges
• For routers OF 900, OF 1000, OF 1010, OF 1400 in the FS-LR32 hole drilling system
