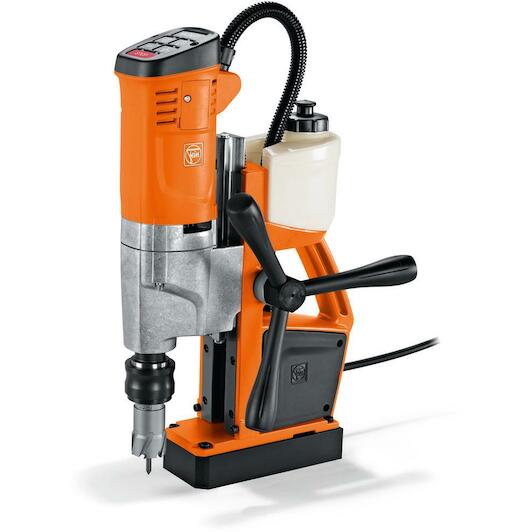

FEIN KBU 35 Q universal magnetic core drill up to 35 mm 1100W in case - 72705361000

FEIN
Supplier number: FEIN 72705361000 | EAN 4014586886039
Recommended Retail Price €1,538.36
1,306.48 tax incl.
€1,079.73 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 2 products in stock.

✆ Talk to a specialist

Perfect combination

Versatile drilling performance with Fein

Practical benefits
  • Powerful motor with speed stability: The 1100W motor with tacho electronics maintains constant speed under heavy loads for clean and efficient drilling.
  • Quick tool-free cutter changes: You swap core bits up to 35 mm quickly and without wrenches using the integrated QuickIN mounting system.
  • Strong magnetic base and sensor: With 10000 N holding power, a tilt sensor, and a clear magnetic force display, you secure safe positioning on steel.

In a nutshell

The right choise for

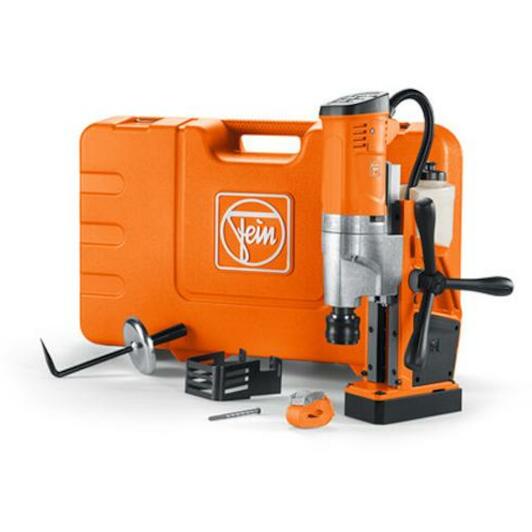

With the Fein kbu 35 Q, you achieve precise and stable drilling in heavy steel structures, vertical beams, or on-site installations. The powerful 1100W motor with tacho electronics maintains a constant speed under heavy loads, ensuring clean and efficient drilling up to 35 mm in diameter. Its magnetic base delivers 10000 n of holding power, combined with a tilt sensor and a magnetic force display for maximum positioning safety. The tool-free QuickIN mounting system lets you swap core bits swiftly without wrenches, reducing downtime. Weighing 10.7 kg and supplied in a durable carry case with a coolant tank, lashing strap, swarf hook, centering pins, and a contact guard, you are ready for any demanding metalworking job.



Product information Accessories FAQ
€1,306.48
In stock - tax incl.

Product information

Key features according to our expert

  • Input power: 1100 W
  • Tool holder type: QuickIn
  • Max. core drilling diameter: 35 mm
  • Clamping force magnetic base: 10000 N
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 10,7 kg

Scope of delivery

  • 1 refrigerant container
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin
  • 1 contact guard
  • 1 case

Product description

  • Universal magnetic core drill up to 35 mm
  • KBU 35 Q
  • Small right/left-handed Universal magnetic core drill with 1-speed, powerful stroke and highest functionality for flexible work on site.

Key features

  • Extremely wear-resistant machine concept with swivelling motor cable protection hose for heavy-duty use in industry and construction.
  • Perfect combination of weight and power due to compact design with optimised weight and FEIN 1 100W high-performance motor with tacho electronics for highly stable speed for reliable and cost-effective work.
  • Right/left-hand turning function, electronic speed adjustment and a stroke range of 260 mm allow universal use such as core and spiral drilling, tapping as well as reaming and countersinking. Small and light.
  • Simple operating concept with no danger of confusion in sight of the user.
  • Convenient indication of magnetic force.
  • Large magnetic force.
  • Tilt sensor.
  • Additional magnetic switch in the drill stand.
  • Integrated coolant tank.
  • Feed handwheel that can be changed from side to side.
  • Speed memory "Memory-Function".
  • Personal safety switch.

All Features

Input power
1100 W
Tool holder type
QuickIn
Max. core drilling diameter
35 mm
Clamping force magnetic base
10000 N
Supplied in
Case
Type of system case
Not applicable
Weight
10,7 kg
Reduced power
550 W
Changing core drills
without tools
Tapping
M 14
Cable with plug
4 m
Galvanisation max. ø
31 mm
Magnetic holding force
10 000 N
Up to stroke range
260 mm
Core drilling depth max.
50 mm
Hm core drill max. ø
35 mm
Dimensions magnetic base
175 x 80 mm
Core drill chuck
QuickIN
Hss core drill max. ø
35 mm
Spiral drill max. ø
16 mm
Nom. absorbed power
1 100 W
Reaming max. ø
16 mm
Battle
135 mm

Accessories

View more accessories (307)

Frequently asked questions about this product

Answered by specialists
Which tool holder does this magnetic core drill use?
It features a QuickIN tool holder, allowing fast, tool-free core drill bit changes.
What is the maximum core drilling diameter?
You can drill holes up to a maximum diameter of 35 mm with a cutting depth of up to 50 mm.
What is the holding force of the magnetic base?
The magnetic base provides 10000 N of magnetic holding power for secure attachment to steel.
What is included with the machine in the case?
You receive the drill in a carry case with a coolant tank, lashing strap, swarf hook, centering pins, and a contact guard.
How much does the Fein KBU 35 Q weigh?
The machine weighs 10.7 kg, making it easy to manage both on-site and in the workshop.
