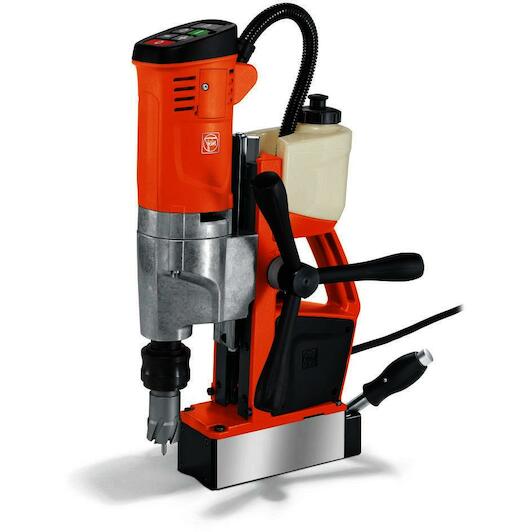

FEIN KBU 35 PQW universal magnetic core drill up to 35 mm 1010W in case - 72707261000

FEIN
Supplier number: FEIN 72707261000 | EAN 4014586890548
Recommended Retail Price €1,794.88
1,424.48 tax incl.
€1,177.25 excl. VAT (incl. all environmental contributions)
On order: delivered from 16/10/2026

✆ Talk to a specialist

Perfect combination



Product information Accessories
€1,424.48
tax incl.

Product information

Key features according to our expert

  • Input power: 1010 W
  • Tool holder type: Weldon
  • Max. core drilling diameter: 35 mm
  • Clamping force magnetic base: 9000 N
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 12,5 kg
  • Tool holder size: 3/4"

Scope of delivery

  • 1 refrigerant container
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin Ø 6.35 x 100 mm
  • 1 contact guard
  • 1 case

Product description

  • Universal magnet core drill up to 35 mm
  • KBU 35 PQW
  • Small right/left-handed Universal magnet core drill with 1 speed, powerful stroke, permanent magnet and highest functionality for very safe and flexible work on the construction site.

Key features

  • Permanent magnet for very safe work at great heights as well as swivelling motor cable protection hose and high processing quality for heavy-duty use.
  • Small and lightweight machine with high torque for permanently high processing speed thanks to FEIN high-performance motor and tacho electronics.
  • Machine with extra-large stroke range for all drilling tasks such as core and spiral drilling, tapping, countersinking and reaming. Extra narrow permanent magnet with pre-magnetisation.
  • Tilt sensor.
  • Simple operating concept with no danger of confusion in view of the user.
  • Convenient indication of magnetic force.
  • Clockwise/anticlockwise rotation.
  • Integrated coolant tank.
  • Speed memory ,,Memory-Function".
  • Feed handwheel that can be changed sideways.
  • Personal safety switch.

All Features

Input power
1010 W
Tool holder type
Weldon
Max. core drilling diameter
35 mm
Clamping force magnetic base
9000 N
Supplied in
Case
Type of system case
Not applicable
Weight
12,5 kg
Tool holder size
3/4"
Reduced power
550 W
Changing core drills
without tools
Tapping
M 14
Cable with plug
4 m
Galvanisation max. ø
31 mm
Magnetic holding force
9 000 N
Up to stroke range
260 mm
Core drilling depth max.
50 mm
Hm core drill max. ø
35 mm
Dimensions magnetic base
195 x 70 mm
Core drill chuck
3/4" Weldon
Hss core drill max. ø
35 mm
Spiral drill max. ø
16 mm
Nom. absorbed power
1 010 W
Reaming max. ø
16 mm
Battle
135 mm
