fein_72705561000

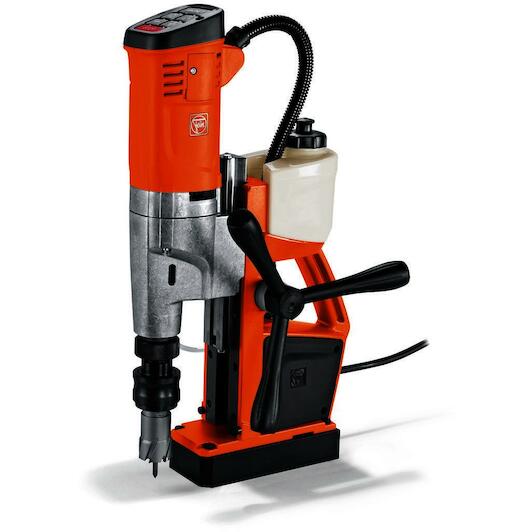

FEIN KBU 35 MQ universal magnetic core drill up to 35 mm 1100W in case - 72705561000

FEIN
Supplier number: FEIN 72705561000 | EAN 4014586886053
Recommended Retail Price €1,961.86
1,665.88 tax incl.
€1,376.76 excl. VAT (incl. all environmental contributions)
On order: delivered from 16/10/2026

✆ Talk to a specialist

Perfect combination

Efficient metal drilling with Fein reliability

Practical benefits
  • Powerful motor for tough drilling: The 1100 W motor enables you to core drill up to 35 mm quickly.
  • Versatile toolholder setup: With the MT2 mount and QuickIN system, you change cutters and taps without wasting time.
  • Secure magnetic base holding: You work safely and accurately thanks to the dependable 10000 N magnetic holding force.

In a nutshell

The right choise for

With the Fein kbu 35 mq magnetic core drill, you drill precise holes up to 35 mm in structural steel beams and metal fabrications. The powerful 1100 w motor provides steady performance on site and in the workshop. Thanks to the magnetic base with 10000 n of holding force, you work with complete stability in vertical, horizontal, or overhead positions. Combining an MT2 mount with the QuickIN quick-change system, it allows you to switch between core drilling, tapping, and countersinking without delays. Weighing only 10.7 kg, it comes in a robust carry case complete with a coolant tank, lashing strap, chip hook, centering pins, contact guard, and drift key.



Product information Accessories FAQ
€1,665.88
tax incl.

Product information

Key features according to our expert

  • Input power: 1100 W
  • Tool holder type: Morse taper; QuickIn
  • Max. core drilling diameter: 35 mm
  • Clamping force magnetic base: 10000 N
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 10,7 kg
  • Tool holder size: MK2

Scope of delivery

  • 1 refrigerant container
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin
  • 1 contact guard
  • 1 driving wedge
  • 1 case

Product description

  • Universal magnetic core drill up to 35 mm
  • KBU 35 MQ
  • Small right/left-handed Universal magnet core drill with 1 speed, powerful stroke, MK2 toolholder and highest functionality for flexible working on site.

Key features

  • Extremely wear-resistant machine concept with swivelling motor cable protection hose for heavy-duty use in industry and construction.
  • Perfect combination of weight and power due to compact design with optimised weight and FEIN 1 100W high-performance motor with tacho electronics for highly stable speed for reliable and cost-effective work.
  • Right/left-hand turning function, electronic speed adjustment and a stroke range of 260 mm allow universal use such as core and spiral drilling, tapping as well as reaming and countersinking. Small with MK2 toolholder.
  • Simple operating concept with no danger of confusion in sight of the user.
  • Comfortable indication of magnetic force.
  • Large magnetic force.
  • Tilt sensor.
  • Additional magnetic switch in the drill stand.
  • Integrated coolant tank.
  • Feed handwheel that can be changed from side to side.
  • Speed memory "Memory-Function".
  • Personal safety switch.
  • * Optional accessories.

All Features

Input power
1100 W
Tool holder type
Morse taper; QuickIn
Max. core drilling diameter
35 mm
Clamping force magnetic base
10000 N
Supplied in
Case
Type of system case
Not applicable
Weight
10,7 kg
Tool holder size
MK2
Reduced power
550 W
Hm core drill max. ø
35 mm
Changing core drills
without tools
Tapping
M 14
Cable with plug
4 m
Galvanisation max. ø
31 mm
Magnetic holding force
10 000 N
Up to stroke range
260 mm
Core drill chuck
QuickIN
Core drilling depth max.
50(75)* mm
Dimensions magnetic base
175 x 80 mm
Hss core drill max. ø
35 mm
Spiral drill max. ø
18 mm
Nom. absorbed power
1 100 W
Reaming max. ø
18 mm
Tool holder
MK 2
Battle
135 mm

Accessories

View more accessories (295)

Frequently asked questions about this product

Answered by specialists
What is the maximum core drilling diameter?
You can drill core holes up to a maximum diameter of 35 mm.
What tool holder type does this machine use?
The machine is equipped with an MT2 tool holder and a QuickIN core drill quick-change system.
What is the magnetic holding force?
The magnetic base delivers a holding power of 10000 N for a secure hold on metal.
Can you use this machine for thread tapping?
Yes, clockwise and anti-clockwise operation with electronic speed control allows tapping up to M14.
What is included in the carry case?
You receive the case with a coolant tank, lashing strap, chip hook, centering pins, contact guard, and drift key.
