fein_72705761000

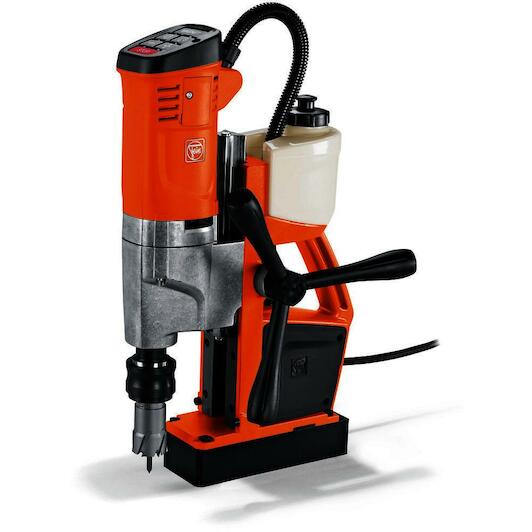

FEIN KBU 35-2 Q universal magnetic core drill up to 35 mm 1100W in case - 72705761000

FEIN
Supplier number: FEIN 72705761000 | EAN 4014586886077
Recommended Retail Price €2,051.40
1,534.68 tax incl.
€1,268.33 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

✆ Talk to a specialist

Perfect combination

Efficient magnetic drilling on site

Practical benefits
  • Constant high drilling power: The high-performance 1100W motor with tacho electronics ensures you maintain a stable speed under heavy loads.
  • Versatile two speed mechanics: Clockwise and anti-clockwise operation combined with variable speed control lets you perform core drilling, twist drilling, and tapping with Fein.
  • Secure magnetic holding force: With a clamping force of 9500 N and an integrated tilt sensor, you work safely and firmly on steel surfaces.

In a nutshell

The right choise for

With the Fein kbu 35-2 q magnetic core drill, you drill precise holes up to 35 mm in demanding steel structures. The high-performance 1100W motor with tacho electronics maintains a constant speed under heavy loads, while the magnetic base with 9500 n holding force and an integrated tilt sensor ensures a secure, stable grip. Featuring two mechanical gears, variable speed control, and forward/reverse rotation, you can tackle core drilling, twist drilling, and tapping up to M14 with total control. The keyless QuickIN mounting system allows swift, tool-free cutter changes to keep your work moving. Supplied in a robust carry case with a coolant tank, lashing strap, chip hook, contact guard, and centering pin.



Product information Accessories FAQ
€1,534.68
tax incl.

Product information

Key features according to our expert

  • Input power: 1100 W
  • Tool holder type: QuickIn
  • Max. core drilling diameter: 35 mm
  • Clamping force magnetic base: 9500 N
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 11,1 kg

Scope of delivery

  • 1 refrigerant container
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin
  • 1 contact guard
  • 1 case

Product description

  • Universal magnetic core drill up to 35 mm
  • KBU 35-2 Q
  • Small right/left-handed Universal magnet core drill with 2 gears, powerful stroke and high speed for efficient spiral drilling on site.

Key features

  • Extremely wear-resistant machine concept with swivelling motor cable protection hose for heavy-duty use in industry and construction.
  • Perfect combination of weight and power due to compact design with optimised weight and FEIN 1 100W high-performance motor with tacho electronics for highly stable speed for reliable and cost-effective work.
  • Right/left-hand turning function, electronic speed adjustment and a stroke range of 260 mm allow universal use such as core and spiral drilling, tapping as well as reaming and countersinking. Small with mechanical gearbox with 2 gears for spiral drilling.
  • Simple operating concept with no danger of confusion in view of the user.
  • Convenient indication of magnetic force.
  • Large magnetic force thanks to 3-coil magnet and width of only 70 mm.
  • Tilt sensor.
  • Additional magnetic switch in the drill stand.
  • Integrated coolant tank.
  • Feed handwheel that can be changed sides.
  • Speed memory "Memory-Function".
  • Personal safety switch.

All Features

Input power
1100 W
Tool holder type
QuickIn
Max. core drilling diameter
35 mm
Clamping force magnetic base
9500 N
Supplied in
Case
Type of system case
Not applicable
Weight
11,1 kg
Tapping
M 14
Hm core drill max. ø
35 mm
Changing core drills
without tools
Up to stroke range
260 mm
Reduced power
550 W
Galvanisation max. ø
31 mm
Magnetic holding force
9 500 N
Core drill chuck
QuickIN
Cable with plug
4 m
Core drilling depth max.
50 mm
Dimensions magnetic base
186 x 70 mm
Hss core drill max. ø
35 mm
Spiral drill max. ø
16 mm
Nom. absorbed power
1 100 W
Reaming max. ø
16 mm
Battle
135 mm

Accessories

View more accessories (309)

Frequently asked questions about this product

Answered by specialists
What is the maximum drilling diameter with core drill bits?
You can drill core holes up to a diameter of 35 mm.
What tool holder type does this magnetic drill use?
It features a tool-free QuickIN holder for fast and easy bit changes.
What is the holding force of the magnetic base?
The magnetic base delivers a clamping force of 9500 N for a secure hold on metal.
Can you use this machine for thread tapping?
Yes, with forward/reverse rotation and electronic speed control, you can tap threads up to M14.
What items are included in the scope of delivery?
It comes in a transport case with a coolant tank, lashing strap, chip hook, centering pin, and contact guard.
