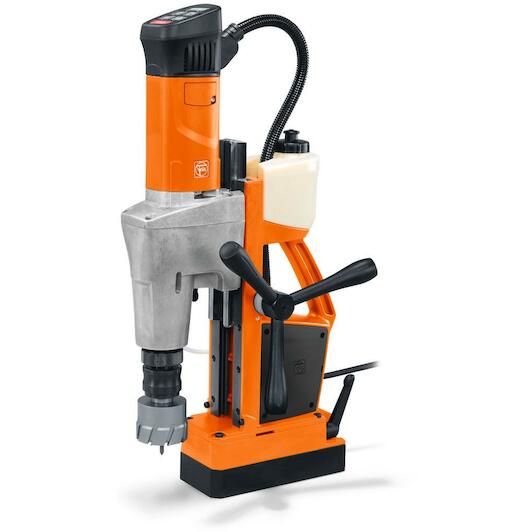

FEIN KBM 65 UQW magnetic core drill 1300 W in case - 72732661000

Recommended Retail Price €3,205.74
2,379.03 tax incl.
€1,966.14 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

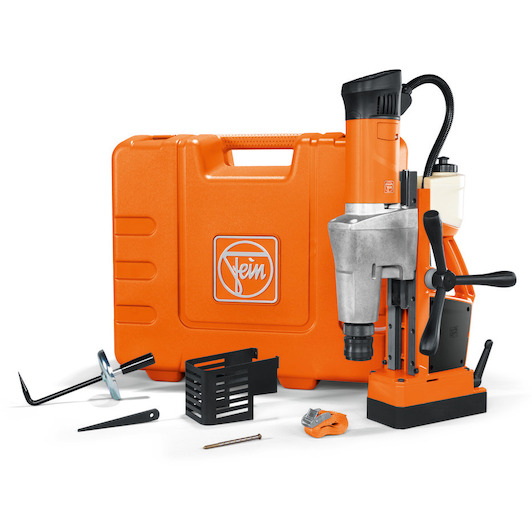

Scope of delivery

  • 1 refrigerant container
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin
  • 1 contact guard
  • 1 driving wedge
  • 1 case

Product description

  • Core drilling unit for metal up to 65 mm
  • KBM 65 UQW
  • Powerful right/left-handed Universal magnetic core drill with 2 gears, powerful stroke, MK3 toolholder, fine adjustment and very high functionality for flexible working in the workshop.

Key features

  • Extremely wear-resistant machine concept with swivel bearing motor cable protection hose for heavy-duty use in industry and construction.
  • Perfect combination of weight and power due to compact design with optimised weight and FEIN 1300 W high-performance motor with tacho electronics for highly stable speed for reliable and cost-effective work.
  • Right/left rotation, electronic speed adjustment and a stroke range of 315 mm allow universal use such as core and spiral drilling, tapping as well as reaming and countersinking. Fine adjustment of the drill axis for comfortable machine alignment.
  • MK3 toolholder.
  • Simple operating concept with no danger of confusion in view of the user.
  • Comfortable indication of magnetic force.
  • Large magnetic force.
  • Integrated coolant tank.
  • Feed handwheel that can be changed sides.
  • Speed memory "Memory-Function".
  • Personal safety switch.
  • * Optional accessories.
Key features according to our expert
  • Input power: 1300 W
  • Tool holder type: Morse taper
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 15,7 kg
  • Tool holder size: MK3
Specifications / All features
Input power
1300 W
Tool holder type
Morse taper
Supplied in
Case
Type of system case
Not applicable
Weight
15,7 kg
Tool holder size
MK3
Tapping
M 20
Core drilling depth max.
50(75)* mm
Hm core drill max. ø
65 mm
Changing core drills
without tools
Reduced power
730 W
Core drill chuck
3/4" Weldon
Galvanisation max. ø
50 mm
Up to stroke range
315 mm
Adjustment range drill stand
6 mm
Nom. absorbed power
1 300 W
Hss core drill max. ø
45 mm
Spiral drill max. ø
25/ mm
Swivel range drill stand
Reaming max. ø
25 mm
Tool holder
MK 3
Battle
145 mm
Cable with plug
4 m
