Scope of delivery
- 1 die for trapezoidal sheet (3 01 09 170 00 1)
- 1 punch (6 36 02 050 00 0)
Product description

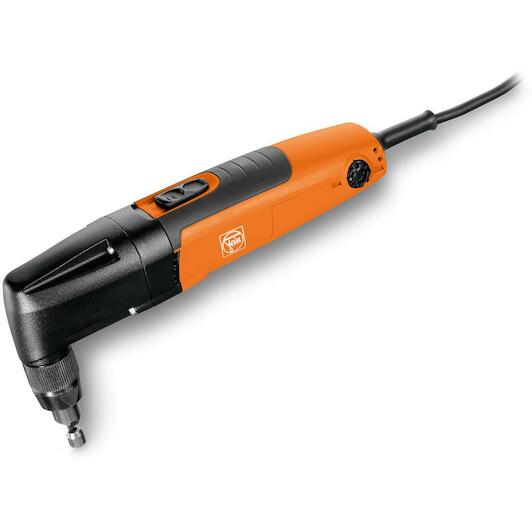

- Nibbler up to 1.3 mm
- BLK 1.3 TE

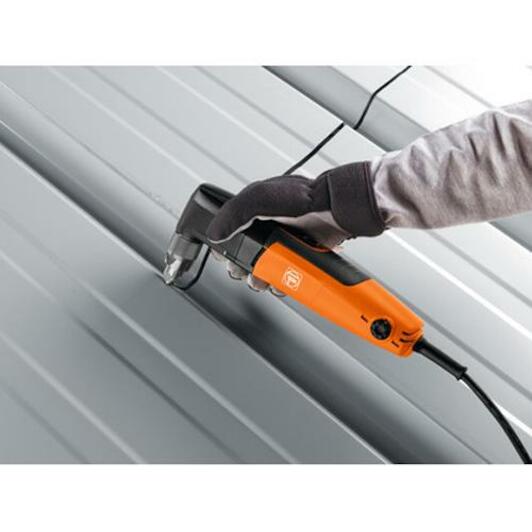

- Compact and fast nibbler for trapezoidal sheets.
Main features
- Adjustable cutting direction in increments of 45° 360° by die carrier that can be rotated without tools.
- 2.3 m/min cutting speed for excellent work progression.
- Optimal handling with up to 20% slimmer handle due to extremely slim drive head. Chip grid at the ventilation slots.
- Low operating costs due to long service life of punch and die.
- Short overlap range of up to 2.6 mm.
- Rotary punch for up to 30% longer service life.
- QuickIN quick-change system.
- Stainless steel up to 0.6 mm.
- Motor with exceptional power and long service life.
- 5-metre cable.
Key features according to our expert
-
Power: 350 W
-
Max. plate thickness: 1,3 mm
Specifications / All features
- Power
- 350 W
- Max. plate thickness
- 1,3 mm
- Cable with plug
- 5 m
- Bearing hole ø with die
- 19 mm
- Non-ferrous metal up to 250 n/mm²
- 2 mm
- Reduced power
- 210 W
- Radius of the smallest curve (inside/outside)
- 25 / 30 mm
- Nom. absorbed power
- 350 W
- Steel up to 600 n/mm²
- 0.8 mm
- Steel up to 400 n/mm²
- 1.3 mm
- Steel up to 800 n/mm²
- 0.6 mm
- Cutting track width
- 4 mm
- Number of strokes
- 1 000 - 1 800 1/min
- Cutting speed
- 2.3 m/min
