What drill bit diameters can you sharpen with the Drill Doctor DD750XIBM?

The included chuck allows you to sharpen drill bits from 2.5 to 19 mm in diameter.

Which point angles can be set on this sharpener?

You can adjust the point angle anywhere from 115° to 140° to suit different materials.

Can this machine create and restore split points?

Yes, it features a dedicated splitting port to create or sharpen split-point drill bits.

Which types of drill bits are compatible?

It sharpens standard HSS, cobalt, TiN-coated, carbide, and masonry drill bits.

What is included in the scope of delivery?

You receive the DD750XIBM, a hard carry case, 2.5-19 mm chuck, 180 grit diamond wheel, and an instructional DVD.

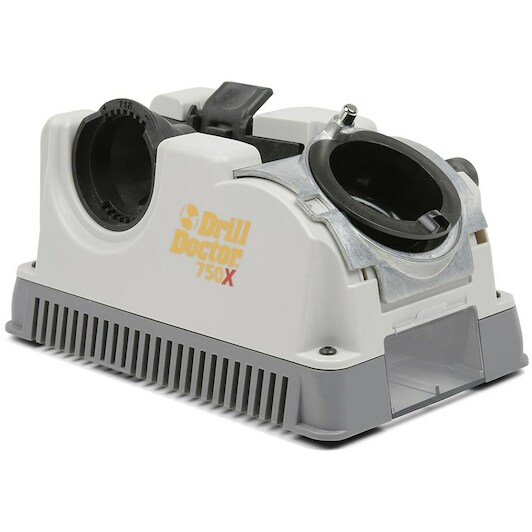

DRILL DOCTOR DD750XIBM Drill bit sharpener, 2.5-19 mm, in a case

Name: DRILL DOCTOR DD750XIBM Drill bit sharpener, 2.5-19 mm, in a case
Brand: DRILL DOCTOR
SKU: 02365852
Price: 250.2 EUR
Availability: InStock

Supplier number: DRILL DOCTOR DD750XIBM | EAN 0662949037631

250.20 tax incl.

€206.78 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered as of 03/11/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Precise bit sharpening by Drill Doctor

Practical benefits

Wide drill bit capacity: You sharpen standard twist bits from 2.5 to 19 mm diameter with the flexible chuck system.
Adjustable drill point angles: Set custom point angles between 115° and 140° to achieve optimal drilling performance in tough materials.
Diamond wheel and case: The included 180-grit diamond wheel and hard storage case keep your sharpening setup ready for transport.

In a nutshell

The right choise for

Restore worn twist and masonry drill bits to factory sharpness with the Drill Doctor DD750XIBM drill bit sharpener. Featuring a versatile chuck capacity of 2.5 to 19 mm and an adjustable point angle between 115° and 140°, it lets you customize the cutting angle to match the hardness of your workpiece. The dedicated splitting port creates and sharpens split points for precise bit centering without walking. With the 180 grit diamond sharpening wheel, you can accurately sharpen HSS, cobalt, TiN-coated, and carbide bits. Housed in a durable hard plastic carrying case, your complete sharpening setup stays fully protected in the workshop or on the job site.

Product information FAQ

€250.20

In stock - tax incl.

Key features according to our expert

Min. diameter: 2,5 mm
Max. diameter: 19 mm
Point angle: 115 °; 140 °

Scope of supply

DD750XIBM drill bit grinder
Hard plastic case
Drill centre holder, 2.5-19.0 mm (order no. DA70100PF)
Diamond grinding wheel, grit 180 (order no. DA31320GF)
Original instruction DVD

Product description

DD750XIBM drill bit sharpener.
The Drill Doctor DD750XIBM is the top-of-the-range model in the Drill Doctor product range.
With a sharpening range of 2.5-19.0 mm and its hard-plastic carrying case, this drill bit sharpener is also ideal for portable use.
This drill bit sharpener ensures you'll never have to work with blunt drill bits again.
The DD750XIBM features an adjustable cutting angle from 115° to 140° and a variable material removal function.

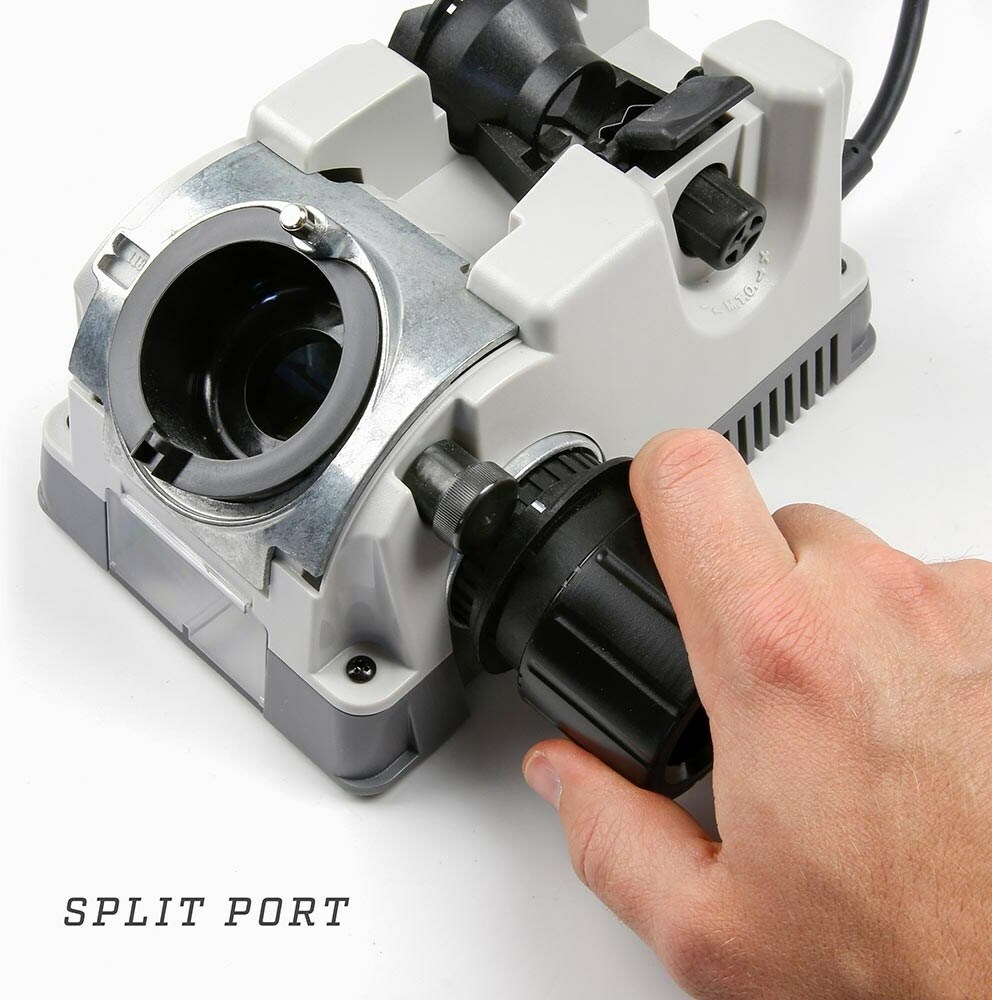

You can also fit the drill bits with a so-called 'split point'.
The split point, or cross-ground tip, ensures better centring of the drill bit and prevents it from 'running off course'.
Grinds standard drill bits from 2.5 to 19.0 mm
Adjustable grinding angle: 115° to 135°
Allows for the creation of a 'split point' on the drill bit
Suitable for HSS roll-ground, HSS-Cobalt, HSS-TIN, masonry and concrete drill bits
Variable material removal function. (Sharpen the drill bit only lightly, or sharpen it more heavily when it is blunter)
Very easy to centre and sharpen
Diamond grinding wheel can be replaced by the user
Durable construction

All Features

Min. diameter: 2,5 mm
Max. diameter: 19 mm
Point angle: 115 °; 140 °

Brand DRILL DOCTOR
02365852
EAN 0662949037631
Supplier number DRILL DOCTOR DD750XIBM

Frequently asked questions about this product

Answered by specialists

What drill bit diameters can you sharpen with the Drill Doctor DD750XIBM?: The included chuck allows you to sharpen drill bits from 2.5 to 19 mm in diameter.
Which point angles can be set on this sharpener?: You can adjust the point angle anywhere from 115° to 140° to suit different materials.
Can this machine create and restore split points?: Yes, it features a dedicated splitting port to create or sharpen split-point drill bits.
Which types of drill bits are compatible?: It sharpens standard HSS, cobalt, TiN-coated, carbide, and masonry drill bits.
What is included in the scope of delivery?: You receive the DD750XIBM, a hard carry case, 2.5-19 mm chuck, 180 grit diamond wheel, and an instructional DVD.
