What profile and dimensions does this V-belt have?

It features an XPZ profile with a width of 9,7 mm, a height of 8 mm, and a datum length Ld of 2800 mm.

What are the inside and outside lengths of this belt?

The outer length La is 2812 mm and the inside length Li is 108,74 inches (2762 mm).

Which pulleys is this V-belt compatible with?

This cogged V-belt is designed for standardized SPZ pulleys and compatible 3VX drives.

What operating temperature range can this belt withstand?

The belt is temperature resistant from -40 °C to +130 °C.

What material is used for the tensile member?

The internal tensile cord of this V-belt is made of PE (polyester).

CONTI XPZ2800P CONTI V FO PIONEER belt XPZ 2800 Ld Pio 3VX 1104

Name: CONTI XPZ2800P CONTI V FO PIONEER belt XPZ 2800 Ld Pio 3VX 1104
Brand: CONTI
SKU: 02679184
Price: 74.5 EUR
Availability: InStock

Supplier number: CONTI XPZ2800P | EAN 4010858979492

74.50 tax incl.

€61.57 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered tomorrow 22/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable power delivery with the XPZ 2800

Practical benefits

High torque drive transmission: The molded teeth let you transfer high drive forces smoothly across demanding mechanical systems.
Wide temperature operating range: You achieve steady continuous operation even under harsh thermal conditions from -40 °C to +130 °C.
Low maintenance tension stability: Strong internal tension members ensure you keep minimal elongation, preventing unwanted belt slippage over time.

In a nutshell

The right choise for

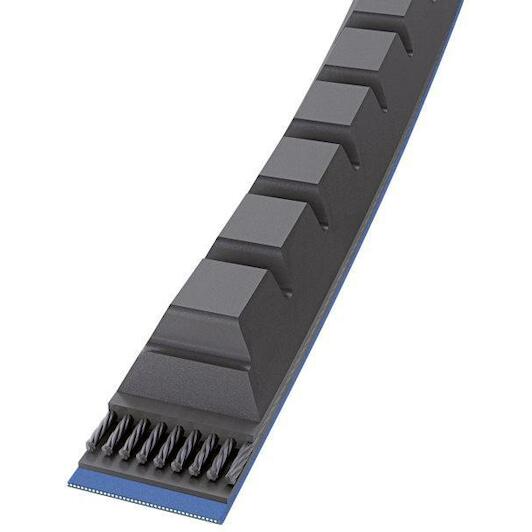

Keep your industrial machinery operating smoothly with the Conti Conti-V fo Pioneer xpz 2800 V-belt. Designed with a cogged xpz profile, a width of 9,7 mm, and a datum length Ld of 2800 mm, this belt delivers high torque reliably with minimal slip. Its durable polyester tensile member maintains continuous tension stability, preventing belt stretch and eliminating unnecessary machine downtime. Operating dependably in harsh thermal conditions from -40 °C to +130 °C, this belt fits standardized spz pulleys and compatible 3VX drives seamlessly. It provides the robust power transmission you need for demanding production machinery, blowers, and agricultural equipment.

Product information FAQ

€74.50

In stock - tax incl.

Key features according to our expert

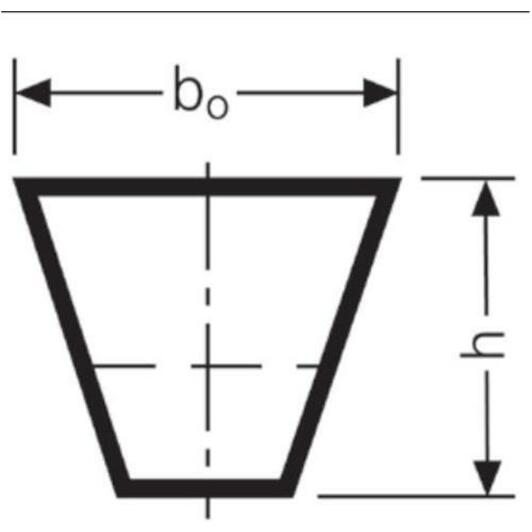

Length: 2800
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 2800 mm
Inner length (Li): 2762 mm; 108,74 inch
Outer length (La): 2812 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX1102
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 2800
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 2800 mm
Inner length (li): 2762 mm; 108,74 inch
Outer length (la): 2812 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX1102
Colour (manufacturer): Black/Blue

Brand CONTI
02679184
EAN 4010858979492
Supplier number CONTI XPZ2800P

Frequently asked questions about this product

Answered by specialists

What profile and dimensions does this V-belt have?: It features an XPZ profile with a width of 9,7 mm, a height of 8 mm, and a datum length Ld of 2800 mm.
What are the inside and outside lengths of this belt?: The outer length La is 2812 mm and the inside length Li is 108,74 inches (2762 mm).
Which pulleys is this V-belt compatible with?: This cogged V-belt is designed for standardized SPZ pulleys and compatible 3VX drives.
What operating temperature range can this belt withstand?: The belt is temperature resistant from -40 °C to +130 °C.
What material is used for the tensile member?: The internal tensile cord of this V-belt is made of PE (polyester).
