What profile does this V-belt have?

This V-belt has an XPZ profile, matching the RMA standard 3VX517 (or 3VX 518).

What are the dimensions of this belt?

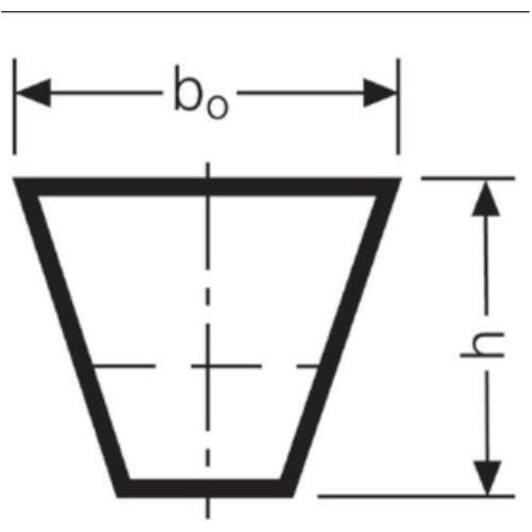

The belt has a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1312 mm.

What is the outer length of this V-belt?

While the datum length (Ld) is 1312 mm, the outer length (La) measures 1324 mm.

What material is the tension cord made of?

The internal tension member cord of this belt is made of durable polyester (PE).

What is the color of this belt?

This belt from the Conti V FO Pioneer line comes in black and blue.

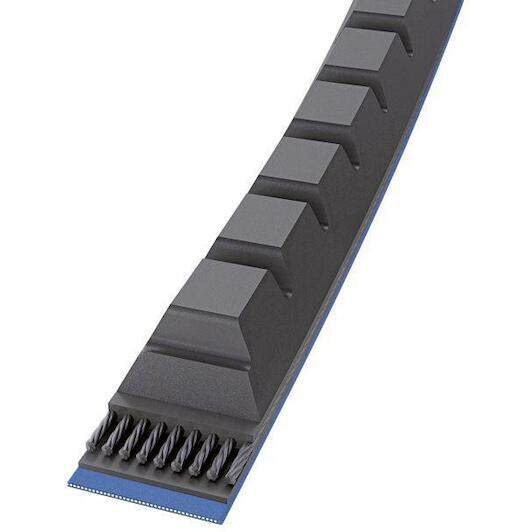

CONTI XPZ1312P CONTI V FO PIONEER belt XPZ 1312 Ld Pio 3VX 518

Name: CONTI XPZ1312P CONTI V FO PIONEER belt XPZ 1312 Ld Pio 3VX 518
Brand: CONTI
SKU: 02679081
Price: 32.86 EUR
Availability: InStock

Supplier number: CONTI XPZ1312P | EAN 4010858973643

32.86 tax incl.

€27.16 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Ordered before 20:00 - delivered as of 20/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Efficient power transmission with the Conti belt

Practical benefits

Efficient heavy-duty power delivery: The raw-edge cogged profile ensures you transmit maximum power smoothly with minimal slippage across demanding machinery drives.
Extreme temperature resistance built-in: Engineered with durable EPDM rubber and a PE tension member, it reliably withstands harsh conditions from -40 °C up to +130 °C.
Smooth and low-vibration operation: The precise 1312 mm datum length gives you stable running performance, reduced maintenance requirements, and consistent drive alignment.

In a nutshell

The right choise for

Keep your heavy-duty industrial machinery running with precision using the Conti V-belt from the Conti V fo Pioneer series. Featuring a transversely stiff cogged xpz profile and a durable polyester tension cord, it transmits high torque with minimal slippage across electric motors, ventilation fans, and manufacturing lines. The rugged epdm rubber compound withstands extreme ambient temperatures from -40 °C up to +130 °C without sacrificing stability. With an exact datum length of 1312 mm, a width of 9.7 mm, and a height of 8 mm, you can easily replace worn belts in compact pulley configurations and secure smooth, low-vibration power delivery.

Product information FAQ

€32.86

In stock - tax incl.

Key features according to our expert

Length: 1312
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1312 mm
Inner length (Li): 1274 mm; 50,157 inch
Outer length (La): 1324 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX517
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1312
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1312 mm
Inner length (li): 1274 mm; 50,157 inch
Outer length (la): 1324 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX517
Colour (manufacturer): Black/Blue

Brand CONTI
02679081
EAN 4010858973643
Supplier number CONTI XPZ1312P

Frequently asked questions about this product

Answered by specialists

What profile does this V-belt have?: This V-belt has an XPZ profile, matching the RMA standard 3VX517 (or 3VX 518).
What are the dimensions of this belt?: The belt has a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1312 mm.
What is the outer length of this V-belt?: While the datum length (Ld) is 1312 mm, the outer length (La) measures 1324 mm.
What material is the tension cord made of?: The internal tension member cord of this belt is made of durable polyester (PE).
What is the color of this belt?: This belt from the Conti V FO Pioneer line comes in black and blue.
