What profile and dimensions does this V-belt have?

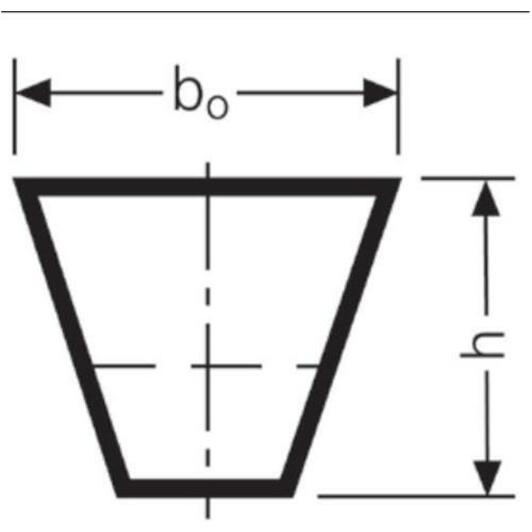

This Conti V-belt features an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1287 mm.

What are the inside and outside lengths of the XPZ 1287?

The outside length La is 1299 mm and the inside length Li is 49.173 inches.

Which RMA standard designation corresponds to this belt?

This belt corresponds to RMA designation 3VX507 (also referenced as 3VX 508).

What material is the tension cord made from?

The cord inside this V-belt is made of PE (polyester).

What are the primary applications of the Conti V FO Pioneer line?

It is designed for high-performance, smooth running, and continuous power transmission in heavy-duty drive systems.

CONTI XPZ1287P CONTI V FO PIONEER belt XPZ 1287 Ld Pio 3VX 508

Name: CONTI XPZ1287P CONTI V FO PIONEER belt XPZ 1287 Ld Pio 3VX 508
Brand: CONTI
SKU: 02679078
Price: 32.86 EUR
Availability: InStock

Supplier number: CONTI XPZ1287P | EAN 4010858973629

32.86 tax incl.

€27.16 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with the Conti V-belt

Practical benefits

High efficiency power transmission: You transfer heavy loads smoothly and efficiently with the robust, transversely stiff XPZ profile.
Excellent flexibility and cooling: The molded teeth reduce bending stress and dissipate heat effectively for optimal performance on small pulleys.
Durable and temperature resistant: You rely on dependable operation in demanding environments thanks to high resistance to wear and heat up to +130 °C.

In a nutshell

The right choise for

With the Conti xpz 1287 V-belt, you ensure high-efficiency, slip-free power transmission across demanding drive systems. Its transversely rigid xpz profile, equipped with a pe tension cord and a datum length of 1287 mm, delivers direct torque transfer while ensuring smooth and vibration-free running on pulleys. Engineered to withstand temperatures from -40 °C up to +130 °C, this belt guarantees durable performance and dependable operation in challenging industrial environments.

Product information FAQ

€32.86

In stock - tax incl.

Key features according to our expert

Length: 1287
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1287 mm
Inner length (Li): 1249 mm; 49,173 inch
Outer length (La): 1299 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX507
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific

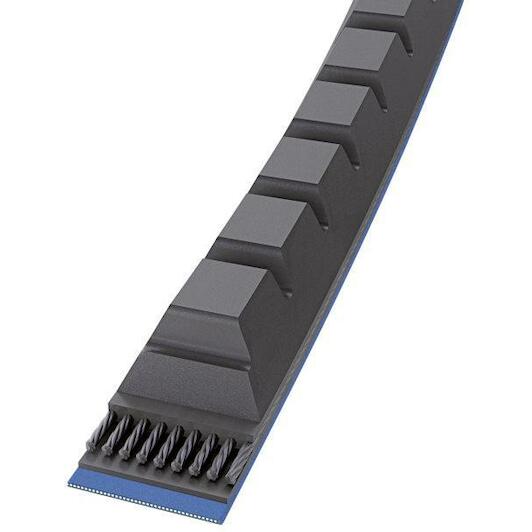

Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1287
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1287 mm
Inner length (li): 1249 mm; 49,173 inch
Outer length (la): 1299 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX507
Colour (manufacturer): Black/Blue

Brand CONTI
02679078
EAN 4010858973629
Supplier number CONTI XPZ1287P

Frequently asked questions about this product

Answered by specialists

What profile and dimensions does this V-belt have?: This Conti V-belt features an XPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1287 mm.
What are the inside and outside lengths of the XPZ 1287?: The outside length La is 1299 mm and the inside length Li is 49.173 inches.
Which RMA standard designation corresponds to this belt?: This belt corresponds to RMA designation 3VX507 (also referenced as 3VX 508).
What material is the tension cord made from?: The cord inside this V-belt is made of PE (polyester).
What are the primary applications of the Conti V FO Pioneer line?: It is designed for high-performance, smooth running, and continuous power transmission in heavy-duty drive systems.
