What are the dimensions of this V-belt?

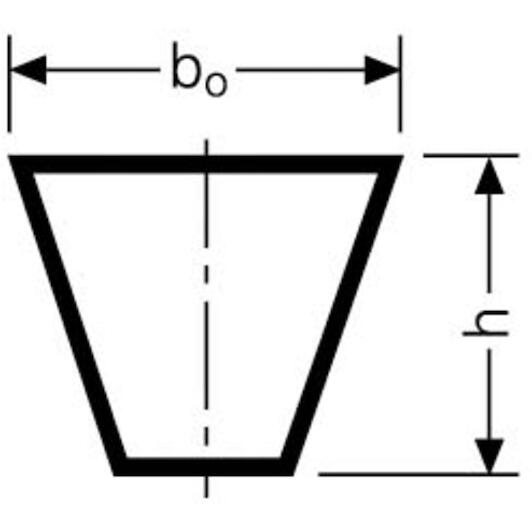

This V-belt has a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 887 mm (outer length La is 899 mm).

Which belt profiles and standards does the SPZ 887 match?

This SPZ belt corresponds to the American RMA 3V profile (code 3V349) and the 9N profile.

What material is used for the tension cords?

The tension cords are made of PE (polyester), ensuring high tensile strength and minimal elongation during operation.

Which pulleys is this belt compatible with?

This narrow V-belt is designed for use with standard SPZ and 3V pulleys in industrial machinery and drive systems.

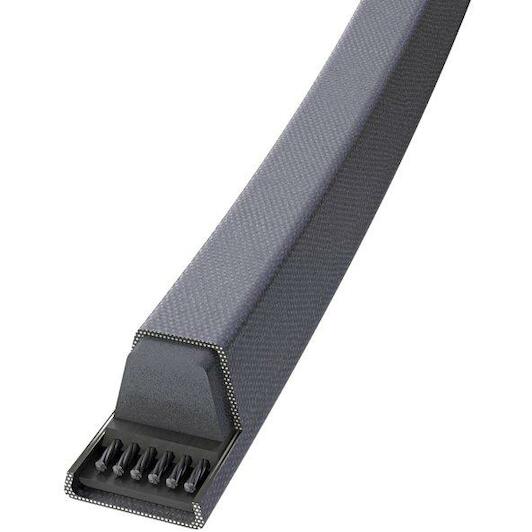

CONTI SPZ887 CONTI V-belt SPZ 887

Name: CONTI SPZ887 CONTI V-belt SPZ 887
Brand: CONTI
SKU: 05010035
Price: 20.61 EUR
Availability: InStock
Rating: 10 (1 reviews)

Supplier number: CONTI SPZ887 | EAN 4010858710903

1 review(s)

20.61 tax incl.

€17.03 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission for demanding drives

Practical benefits

High efficiency power transmission: The compact SPZ profile ensures you drive heavy-duty industrial machinery with minimal slip and maximum efficiency.
Wide operating temperature range: You can operate machinery continuously from -55 °C to +70 °C in dusty or moderately oily environments.
Durable low-stretch tension member: Built with a strong polyester cord, the Conti-V maintains consistent length and reliable dimensional stability during intensive use.

In a nutshell

The right choise for

With the Conti Conti-V spz 887 V-belt, you ensure reliable and efficient power transmission across demanding industrial machinery. Designed to replace worn drive belts in electric motors, pumps, fans, and compressors, its compact spz profile delivers a slip-free drive with maximum efficiency. Built with a robust polyester tension cord, the belt provides exceptional dimensional stability and minimal stretch during intensive, continuous operation. Its durable construction easily withstands temperatures ranging from -55 °C to +70 °C as well as dusty or oily environments, keeping your equipment running smoothly and without unplanned downtime.

Product information FAQ Reviews

€20.61

In stock - tax incl.

Key features according to our expert

Length: 887
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 887 mm
Inner length (Li): 849 mm; 33,425 inch
Outer length (La): 899 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V349
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 887
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 887 mm
Inner length (li): 849 mm; 33,425 inch
Outer length (la): 899 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V349
Colour (manufacturer): Black

Brand CONTI
05010035
EAN 4010858710903
Supplier number CONTI SPZ887

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This V-belt has a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 887 mm (outer length La is 899 mm).
Which belt profiles and standards does the SPZ 887 match?: This SPZ belt corresponds to the American RMA 3V profile (code 3V349) and the 9N profile.
What material is used for the tension cords?: The tension cords are made of PE (polyester), ensuring high tensile strength and minimal elongation during operation.
Which pulleys is this belt compatible with?: This narrow V-belt is designed for use with standard SPZ and 3V pulleys in industrial machinery and drive systems.
