What are the exact dimensions of this V-belt?

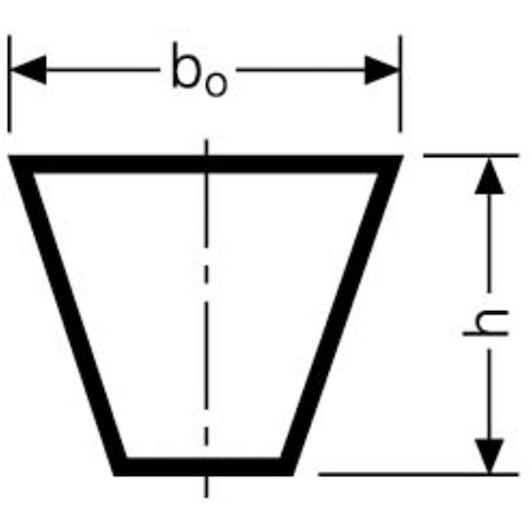

The belt has a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 772 mm. The outer length La is 784 mm.

What profile does the Conti CONTI-V SPZ 772 V-belt use?

It features an SPZ profile, also designated as 3V or 9N, with the RMA code 3V304.

What material is the tension cord made of?

The internal tension member is made of polyester (PE) for reliable strength and low stretch.

Which pulleys are compatible with this V-belt?

It is designed for use with standardized SPZ pulleys across various machinery and industrial drive systems.

CONTI SPZ772 CONTI V-belt SPZ 772

Name: CONTI SPZ772 CONTI V-belt SPZ 772
Brand: CONTI
SKU: 05010025
Price: 19.17 EUR
Availability: InStock

Supplier number: CONTI SPZ772 | EAN 4010858710767

19.17 tax incl.

€15.85 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered as of 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable drive performance with Conti

Practical benefits

Efficient mechanical power transmission: The SPZ profile delivers dependable, non-slip power transfer for your demanding machinery applications.
Broad operating temperature range: You can reliably operate drive systems in ambient temperatures ranging from -55 °C to +70 °C.
Resilient polyester tension cord: The durable cord construction minimizes belt stretch and ensures smooth, long-lasting performance.

In a nutshell

The right choise for

With the Conti Conti-V spz 772 V-belt, you ensure dependable, non-slip mechanical power transmission across industrial machinery, pumps, compressors, and ventilation systems. Worn or stretched drive belts often cause power loss and squealing, but this belt maintains its shape and tension under demanding conditions thanks to its resilient polyester tension cord. Featuring a width of 9.7 mm, a height of 8 mm, and a datum length of 772 mm, the spz profile fits standardized drive pulleys with precision. Operating reliably in temperatures ranging from -55 °C to +70 °C, it keeps your equipment running smoothly and efficiently.

Product information FAQ

€19.17

In stock - tax incl.

Key features according to our expert

Length: 772
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 772 mm
Inner length (Li): 734 mm; 28,897 inch
Outer length (La): 784 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V304
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 772
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 772 mm
Inner length (li): 734 mm; 28,897 inch
Outer length (la): 784 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V304
Colour (manufacturer): Black

Brand CONTI
05010025
EAN 4010858710767
Supplier number CONTI SPZ772

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: The belt has a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 772 mm. The outer length La is 784 mm.
What profile does the Conti CONTI-V SPZ 772 V-belt use?: It features an SPZ profile, also designated as 3V or 9N, with the RMA code 3V304.
What material is the tension cord made of?: The internal tension member is made of polyester (PE) for reliable strength and low stretch.
Which pulleys are compatible with this V-belt?: It is designed for use with standardized SPZ pulleys across various machinery and industrial drive systems.
