What are the dimensions and profile of this V-belt?

This narrow V-belt features an SPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 2487 mm.

What does the L=L designation mean for this Conti belt?

L=L indicates matched factory tolerances, allowing you to run multiple belts in a drive set without special matching.

What applications is this V-belt suitable for?

It is designed for industrial machinery drives, including fans, compressors, pumps, and conveyor systems.

What material is used for the tension cord?

The belt is reinforced with a high-strength, low-stretch polyester (PE) tension cord for dependable power delivery.

Which standard profiles correspond to SPZ?

The metric SPZ profile also corresponds to the US RMA/MPTA 3V and 9N profile designations (RMA 3V979).

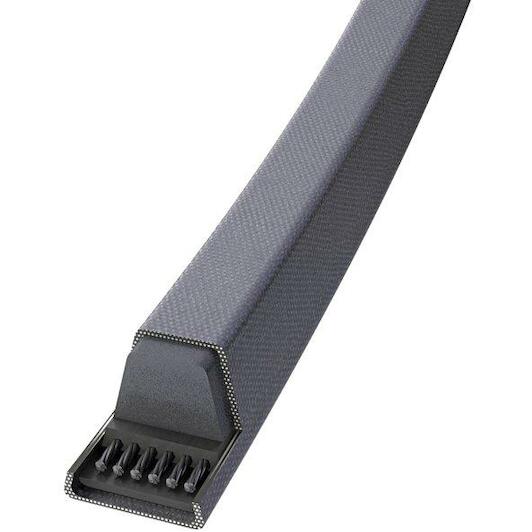

CONTI SPZ2487 CONTI V-belt SPZ 2487

Name: CONTI SPZ2487 CONTI V-belt SPZ 2487
Brand: CONTI
SKU: 05010118
Price: 53.12 EUR
Availability: InStock

Supplier number: CONTI SPZ2487 | EAN 4010858694104

53.12 tax incl.

€43.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 23/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable Conti-V power transmission

Practical benefits

High drive power efficiency: You transfer heavy loads smoothly across machinery thanks to the space-saving SPZ profile and durable PE cord.
Matched set ready: You install multiple belts together without tension mismatches thanks to exact L=L length tolerances.
Broad temperature tolerance: You maintain dependable operation in tough industrial settings from -55 °C up to +70 °C.

In a nutshell

The right choise for

With the Conti Conti-V V-belt spz 2487, you deliver dependable power transmission to demanding industrial drives. Engineered with a space-saving spz profile and a low-stretch pe tension cord, this narrow belt efficiently drives equipment such as pumps, fans, compressors, and conveyors. Thanks to the precise L=L matched-set tolerance, you can install multiple belts side by side without uneven tension or premature wear. Operating reliably in temperatures from -55 °C to +70 °C, it keeps your production running smoothly and efficiently.

Product information FAQ

€53.12

In stock - tax incl.

Key features according to our expert

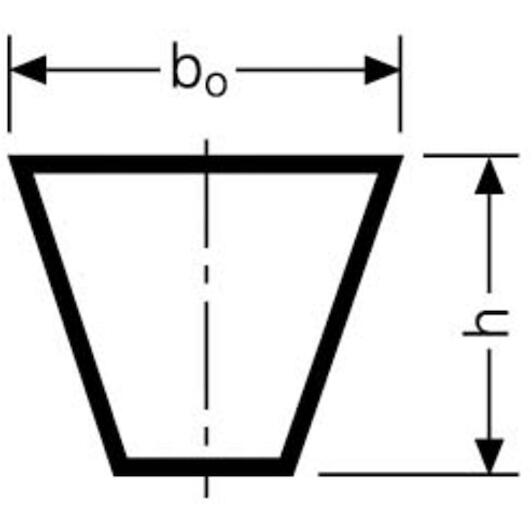

Length: 2487
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 2487 mm
Inner length (Li): 2449 mm; 96,417 inch
Outer length (La): 2499 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V979
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 2487
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 2487 mm
Inner length (li): 2449 mm; 96,417 inch
Outer length (la): 2499 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V979
Colour (manufacturer): Black

Brand CONTI
05010118
EAN 4010858694104
Supplier number CONTI SPZ2487

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile of this V-belt?: This narrow V-belt features an SPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 2487 mm.
What does the L=L designation mean for this Conti belt?: L=L indicates matched factory tolerances, allowing you to run multiple belts in a drive set without special matching.
What applications is this V-belt suitable for?: It is designed for industrial machinery drives, including fans, compressors, pumps, and conveyor systems.
What material is used for the tension cord?: The belt is reinforced with a high-strength, low-stretch polyester (PE) tension cord for dependable power delivery.
Which standard profiles correspond to SPZ?: The metric SPZ profile also corresponds to the US RMA/MPTA 3V and 9N profile designations (RMA 3V979).
