What are the dimensions of this V-belt?

It has a width of 9.7 mm, a height of 8 mm, a datum length Ld of 1202 mm, and an outside length La of 1214 mm.

Which belt profile standard does this belt fit?

It features an SPZ profile and also conforms to 3V and 9N drive standards.

What does the L=L designation mean?

L=L indicates matched tolerance manufacturing, allowing you to use multiple belts together in multi-groove drives without prior matching.

What material is used for the tension cord?

The internal tension cord is made of durable PE (polyester).

What is the operating temperature range?

This Conti V-belt operates reliably across temperatures from -55 °C to +70 °C.

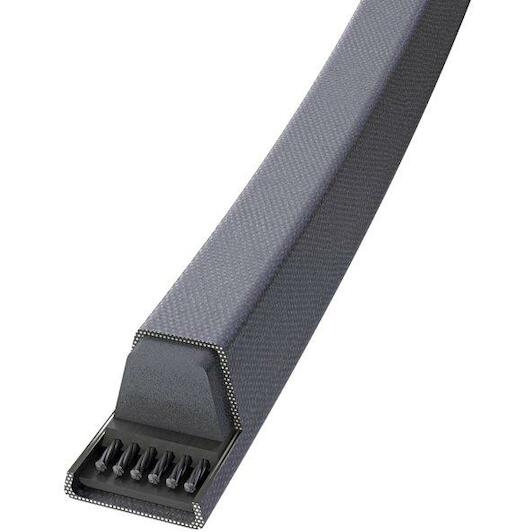

CONTI SPZ1202 CONTI V-belt SPZ 1202 3V 475

Name: CONTI SPZ1202 CONTI V-belt SPZ 1202 3V 475
Brand: CONTI
SKU: 05010061
Price: 27.94 EUR
Availability: InStock

Supplier number: CONTI SPZ1202 | EAN 4010858714222

27.94 tax incl.

€23.09 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable drive performance by Conti V

Practical benefits

Efficient industrial power transmission: The narrow SPZ profile provides a secure grip in pulleys to drive your machinery with consistent torque.
Minimal stretch under load: A durable polyester tensile cord prevents excessive elongation and preserves the 1202 mm datum length during heavy use.
Durable wear and dust resistance: The protective fabric wrap shields the core from abrasive debris and thermal stress to ensure a long operational lifespan.

In a nutshell

The right choise for

Keep your industrial machinery, agricultural equipment, and hvac drives running smoothly with the Conti Conti-V spz 1202 V-belt. Featuring a 9.7 mm top width and a 1202 mm datum length Ld, this narrow wedge belt delivers efficient, slip-free rotational power transmission between shafts. a durable internal polyester tension cord prevents stretching and maintains precise length under demanding mechanical loads. Thanks to the matched L=L tolerance manufacturing, you can easily install multiple belts together in multi-groove drives without prior sorting. The protective outer wrap resists dust and abrasive wear across operating temperatures from -55 °C to +70 °C, ensuring long-lasting performance.

Product information FAQ

€27.94

In stock - tax incl.

Key features according to our expert

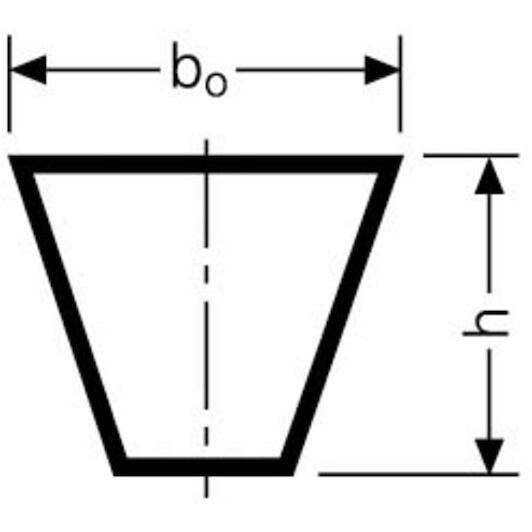

Length: 1202
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 1202 mm
Inner length (Li): 1164 mm; 45,826 inch
Outer length (La): 1214 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V473
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1202
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 1202 mm
Inner length (li): 1164 mm; 45,826 inch
Outer length (la): 1214 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V473
Colour (manufacturer): Black

Brand CONTI
05010061
EAN 4010858714222
Supplier number CONTI SPZ1202

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: It has a width of 9.7 mm, a height of 8 mm, a datum length Ld of 1202 mm, and an outside length La of 1214 mm.
Which belt profile standard does this belt fit?: It features an SPZ profile and also conforms to 3V and 9N drive standards.
What does the L=L designation mean?: L=L indicates matched tolerance manufacturing, allowing you to use multiple belts together in multi-groove drives without prior matching.
What material is used for the tension cord?: The internal tension cord is made of durable PE (polyester).
What is the operating temperature range?: This Conti V-belt operates reliably across temperatures from -55 °C to +70 °C.
