What are the dimensions of this V-belt?

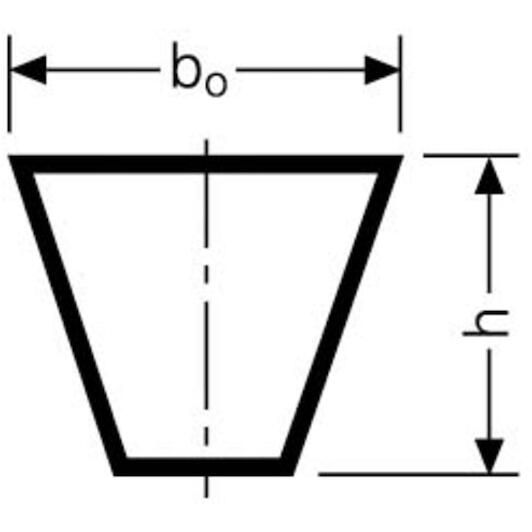

This belt features an SPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1180 mm.

What does the L=L designation mean on this CONTI belt?

L=L indicates matched factory tolerances, allowing multiple belts to be installed in multi-groove sets without manual matching.

What material is used for the tension cord?

The internal tension member is made of polyester (PE), providing high power transmission and low elongation.

Which standard profile codes correspond to this belt?

This wedge belt uses the SPZ profile (DIN 7753) and matches standard RMA 3V (3V465) as well as profile 9N.

What is the operating temperature range of this belt?

This belt is temperature resistant across a range from -55 °C to +70 °C.

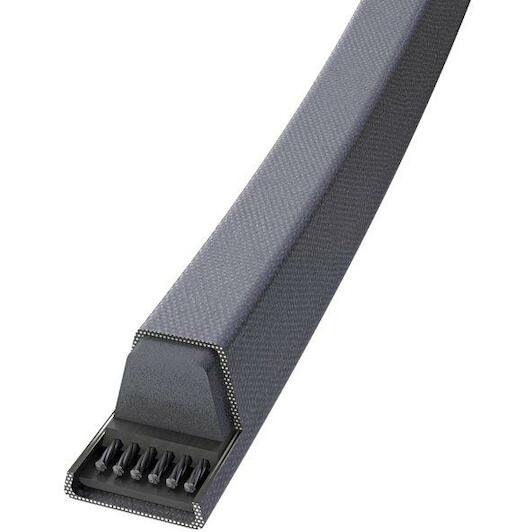

CONTI SPZ1180 CONTI V-belt SPZ 1180

Name: CONTI SPZ1180 CONTI V-belt SPZ 1180
Brand: CONTI
SKU: 05010059
Price: 26.93 EUR
Availability: InStock

Supplier number: CONTI SPZ1180 | EAN 4010858713065

26.93 tax incl.

€22.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable power transmission for demanding drives

Practical benefits

Efficient compact drive power: The SPZ narrow profile lets you transmit high torque smoothly across tight pulley configurations.
Minimal stretch under load: The integrated PE tension cord ensures consistent tension and reduces the need for frequent retightening.
Durable Conti V design: The tough outer wrap protects against friction and wear, ensuring a long operational service life.

In a nutshell

The right choise for

Ensure reliable, slip-free power transmission across electric motors, pumps, compressors, and fans with the Conti Conti-V V-belt spz 1180. Featuring a narrow spz profile with a 9.7 mm width, 8 mm height, and 1180 mm datum length, it transfers high torque smoothly across compact pulley setups. The integrated pe tension cord prevents unwanted stretching under heavy loads, maintaining consistent belt tension to prevent costly machine downtime. Thanks to matched L=L manufacturing tolerances, you can install multiple belts in multi-groove drives without manual matching. Engineered for demanding environments, this durable V-belt withstands temperatures from -55 °C to +70 °C for dependable industrial performance.

Product information FAQ

€26.93

In stock - tax incl.

Key features according to our expert

Length: 1180
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 1180 mm
Inner length Li: 1142 mm; 44,96 inch
Outer length La: 1192 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V465
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1180
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 1180 mm
Inner length li: 1142 mm; 44,96 inch
Outer length la: 1192 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V465
Colour (manufacturer): Black

Brand CONTI
05010059
EAN 4010858713065
Supplier number CONTI SPZ1180

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This belt features an SPZ profile with a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1180 mm.
What does the L=L designation mean on this CONTI belt?: L=L indicates matched factory tolerances, allowing multiple belts to be installed in multi-groove sets without manual matching.
What material is used for the tension cord?: The internal tension member is made of polyester (PE), providing high power transmission and low elongation.
Which standard profile codes correspond to this belt?: This wedge belt uses the SPZ profile (DIN 7753) and matches standard RMA 3V (3V465) as well as profile 9N.
What is the operating temperature range of this belt?: This belt is temperature resistant across a range from -55 °C to +70 °C.
