What are the dimensions of this V-belt?

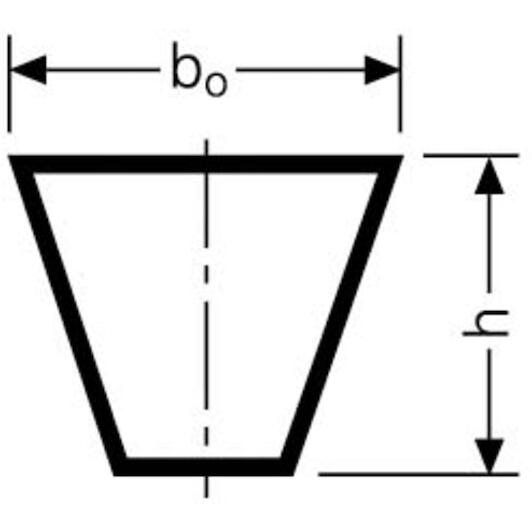

This SPZ V-belt has a top width of 9.7 mm, a height of 8 mm, a datum length Ld of 1147 mm, and an outside length La of 1159 mm.

What does the L=L designation mean?

L=L indicates matched-set manufacturing tolerances, allowing you to install multiple belts together without prior matching.

Which pulleys are compatible with this V-belt?

This belt is designed for use with standard SPZ, 3V, and 9N profile pulleys.

What material is used for the tension member?

The V-belt is built with a high-strength, low-stretch polyester (PE) tension member.

What is the operating temperature range for this V-belt?

The belt operates reliably in temperatures ranging from -55 °C to +70 °C.

CONTI SPZ1147 CONTI V-belt SPZ 1147

Name: CONTI SPZ1147 CONTI V-belt SPZ 1147
Brand: CONTI
SKU: 05010057
Price: 26.93 EUR
Availability: InStock

Supplier number: CONTI SPZ1147 | EAN 4010858713027

26.93 tax incl.

€22.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

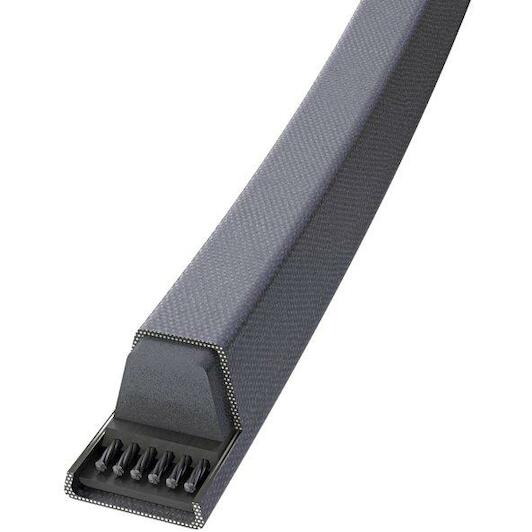

Efficient power transmission with the SPZ 1147

Practical benefits

Perfect matching in sets: Strict manufacturing tolerances allow you to install multiple belts together without tension mismatch or uneven wear.
Minimal stretch under load: The strong polyester cord ensures minimal elongation so you maintain consistent drive efficiency throughout heavy operation.
Compact narrow belt design: A 9.7 mm width profile delivers high power transmission within compact industrial drive systems.

In a nutshell

The right choise for

With the Conti Conti-V spz 1147 V-belt, you transfer mechanical torque reliably and efficiently across industrial machines, pumps, compressors, and ventilation drives. Its compact profile, measuring 9.7 mm in width and 8 mm in height, delivers powerful performance within tight installation spaces. The low-stretch polyester tension member prevents slipping and maintains consistent drive tension under demanding loads. Thanks to the strict L=L manufacturing tolerance, you can easily install multiple belts side by side in matched sets without length discrepancies. Featuring a datum length Ld of 1147 mm and an operating temperature range from -55 °C to +70 °C, it keeps your equipment running smoothly.

Product information FAQ

€26.93

In stock - tax incl.

Key features according to our expert

Length: 1147
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 1147 mm
Inner length (Li): 1109 mm; 43,661 inch
Outer length (La): 1159 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V452
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1147
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 1147 mm
Inner length (li): 1109 mm; 43,661 inch
Outer length (la): 1159 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V452
Colour (manufacturer): Black

Brand CONTI
05010057
EAN 4010858713027
Supplier number CONTI SPZ1147

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This SPZ V-belt has a top width of 9.7 mm, a height of 8 mm, a datum length Ld of 1147 mm, and an outside length La of 1159 mm.
What does the L=L designation mean?: L=L indicates matched-set manufacturing tolerances, allowing you to install multiple belts together without prior matching.
Which pulleys are compatible with this V-belt?: This belt is designed for use with standard SPZ, 3V, and 9N profile pulleys.
What material is used for the tension member?: The V-belt is built with a high-strength, low-stretch polyester (PE) tension member.
What is the operating temperature range for this V-belt?: The belt operates reliably in temperatures ranging from -55 °C to +70 °C.
