What are the dimensions and profile of this V-belt?

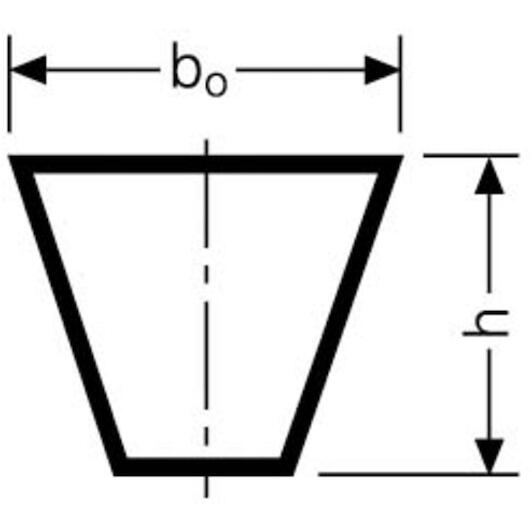

This V-belt features a narrow SPZ profile with a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1120 mm.

What does the L=L designation mean?

L=L indicates matched-set precision tolerances, allowing multiple belts to run together on multi-groove pulleys without pre-sorting.

What material is used for the tension cord?

The internal tension cord is made of polyester (PE), ensuring high tensile strength, dimensional stability, and minimal stretch.

What equivalent profile designations apply to SPZ 1120?

According to international industrial standards, this profile also corresponds to 3V, 9N, and the RMA code 3V441.

What applications is this V-belt designed for?

It is designed for demanding industrial and mechanical power transmission drives using standard SPZ pulleys.

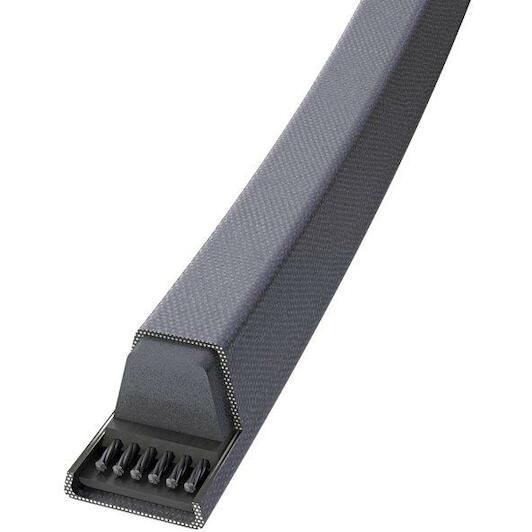

CONTI SPZ1120 CONTI V-belt SPZ 1120

Name: CONTI SPZ1120 CONTI V-belt SPZ 1120
Brand: CONTI
SKU: 05010055
Price: 24.79 EUR
Availability: InStock

Supplier number: CONTI SPZ1120 | EAN 4010858713058

24.79 tax incl.

€20.49 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 14/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable power with Conti

Practical benefits

Efficient and smooth drive: The SPZ profile with a 9.7 mm width ensures you achieve steady power transmission without slippage.
High dimensional cord stability: Built with a durable polyester tension cord, you experience low elongation and minimal maintenance over time.
Exact fit for machinery: With a datum length of 1120 mm, you easily achieve proper belt tension across compatible industrial pulleys.

In a nutshell

The right choise for

Keep your industrial machinery, pumps, compressors, and agricultural equipment running smoothly with the Conti Conti-V spz 1120 V-belt. Designed with an spz narrow profile measuring 9.7 mm in width and 8 mm in height, it fits accurately onto standardized pulleys for efficient power transmission without slippage. The durable polyester tension cord provides outstanding dimensional stability and minimal stretch, reducing maintenance and retensioning needs. Thanks to its matched-set L=L tolerance designation, you can install multiple belts together on multi-groove drives right away to ensure steady, reliable performance across all your demanding applications.

Product information FAQ

€24.79

In stock - tax incl.

Key features according to our expert

Length: 1120
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 1120 mm
Inner length (Li): 1082 mm; 42,598 inch
Outer length (La): 1132 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V441
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1120
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 1120 mm
Inner length (li): 1082 mm; 42,598 inch
Outer length (la): 1132 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V441
Colour (manufacturer): Black

Brand CONTI
05010055
EAN 4010858713058
Supplier number CONTI SPZ1120

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile of this V-belt?: This V-belt features a narrow SPZ profile with a top width of 9.7 mm, a height of 8 mm, and a datum length Ld of 1120 mm.
What does the L=L designation mean?: L=L indicates matched-set precision tolerances, allowing multiple belts to run together on multi-groove pulleys without pre-sorting.
What material is used for the tension cord?: The internal tension cord is made of polyester (PE), ensuring high tensile strength, dimensional stability, and minimal stretch.
What equivalent profile designations apply to SPZ 1120?: According to international industrial standards, this profile also corresponds to 3V, 9N, and the RMA code 3V441.
What applications is this V-belt designed for?: It is designed for demanding industrial and mechanical power transmission drives using standard SPZ pulleys.
