What are the exact dimensions of this V-belt?

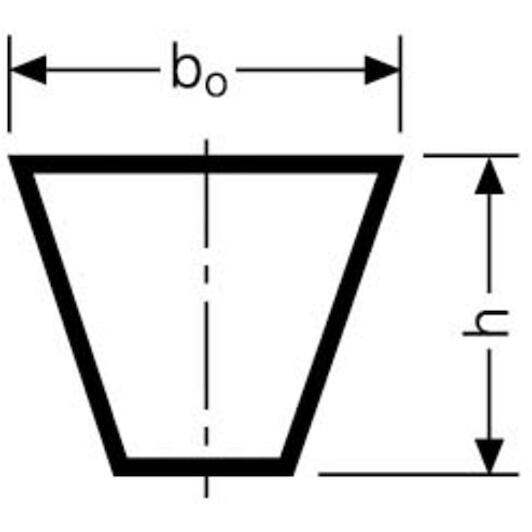

It features an SPB profile with a width of 16.3 mm, a height of 13 mm, and a datum length of 4310 mm (outer length 4332 mm).

What does the L=L designation mean?

L=L indicates matched manufacturing tolerances. Multiple belts can be installed together in sets without requiring prior matching.

Which standard profiles are compatible with this V-belt?

This SPB narrow V-belt corresponds to RMA profiles 5V1697 / 5V1700 and profile 15N.

What material is used for the tension cord?

The tension member inside the Conti V belt is made of polyester (PE) to ensure stable power transmission.

What is the operating temperature range for this belt?

This industrial V-belt is designed to operate within a temperature range of -55 °C to +70 °C.

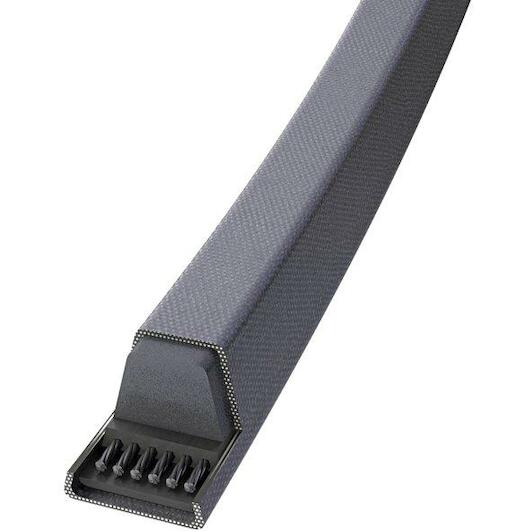

CONTI SPB4310 CONTI V-belt SPB 4310 5V1700

Name: CONTI SPB4310 CONTI V-belt SPB 4310 5V1700
Brand: CONTI
SKU: 05011217
Price: 188.78 EUR
Availability: InStock

Supplier number: CONTI SPB4310 | EAN 4010858974336

188.78 tax incl.

€156.02 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered as of 20/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Efficient power transmission with Conti

Practical benefits

Smooth high-torque power transfer: You achieve steady drive performance thanks to the standard SPB wedge profile with a 16.3 mm width and 13 mm height.
Minimal elongation under load: The reinforced polyester tensile cord maintains structural tension so you avoid slipping during demanding industrial machinery operations.
Reliable in harsh conditions: You operate machinery safely across varied environments thanks to antistatic properties compliant with the ISO 1813 standard.

In a nutshell

The right choise for

With the Conti V V-belt spb 4310, you achieve dependable and smooth power transmission across heavy industrial machinery, ventilation fans, and agricultural equipment. Its spb profile, measuring 16.3 mm in width and 13 mm in height, eliminates belt slip and torque loss between drive shafts and driven components. The integrated polyester tensile cord delivers low elongation under load, keeping your drive stable and efficient during demanding operations. Thanks to matched L=L manufacturing tolerances, you can install multiple belts together in multi-groove sets without prior matching. Featuring iso 1813 antistatic properties and an operating temperature range of -55 °C to +70 °C, it keeps your equipment running reliably in tough conditions.

Product information FAQ

€188.78

In stock - tax incl.

Key features according to our expert

Length: 4310
Width: 16,3 mm
Height: 13 mm
Profile (V-belt): SPB
Reference length Ld: 4310 mm
Inner length (Li): 4250 mm; 167,322 inch
Outer length (La): 4332 mm
Material (cord): PE
Product line: CONTI V
RMA: 5V1697
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 4310
Width: 16,3 mm
Height: 13 mm
Profile (v-belt): SPB
Reference length ld: 4310 mm
Inner length (li): 4250 mm; 167,322 inch
Outer length (la): 4332 mm
Material (cord): PE
Product line: CONTI V
Rma: 5V1697
Colour (manufacturer): Black

Brand CONTI
05011217
EAN 4010858974336
Supplier number CONTI SPB4310

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: It features an SPB profile with a width of 16.3 mm, a height of 13 mm, and a datum length of 4310 mm (outer length 4332 mm).
What does the L=L designation mean?: L=L indicates matched manufacturing tolerances. Multiple belts can be installed together in sets without requiring prior matching.
Which standard profiles are compatible with this V-belt?: This SPB narrow V-belt corresponds to RMA profiles 5V1697 / 5V1700 and profile 15N.
What material is used for the tension cord?: The tension member inside the Conti V belt is made of polyester (PE) to ensure stable power transmission.
What is the operating temperature range for this belt?: This industrial V-belt is designed to operate within a temperature range of -55 °C to +70 °C.
