What are the exact dimensions of this V-belt?

The belt has a width of 16.3 mm, a height of 13 mm, and a datum length Ld of 3450 mm (outer length La is 3472 mm).

Which profile and standards does this belt match?

It features an SPB profile and corresponds to the 5V (RMA 5V1358) and 15N standards.

What does the L=L designation mean on this CONTI-V belt?

L=L indicates matched tolerance sets, allowing you to install multiple belts together without prior matching.

What material is used for the tension cord?

The internal tension cord of this wrapped V-belt is made of polyester (PE).

What is the operating temperature range for this belt?

The belt is designed to operate in temperatures ranging from -55 °C to +70 °C.

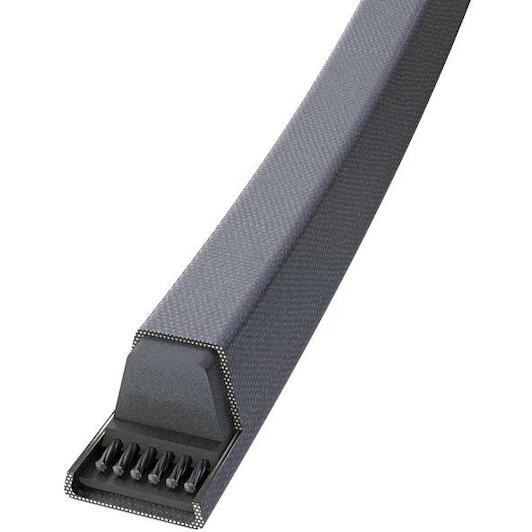

CONTI SPB3450 CONTI V-belt SPB 3450

Name: CONTI SPB3450 CONTI V-belt SPB 3450
Brand: CONTI
SKU: 05010116
Price: 158 EUR
Availability: InStock

Supplier number: CONTI SPB3450 | EAN 4010858740443

158.00 tax incl.

€130.58 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 21/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission for demanding industrial drives

Practical benefits

Matched sets without length deviations: Thanks to precise manufacturing tolerances, you can run multiple belts simultaneously with perfectly even load distribution.
High resistance to environmental factors: You maintain consistent machine operation with built-in resistance to dust, moderate oil exposure, and temperature extremes.
Robust Conti construction with low stretch: The durable polyester tension member ensures minimal elongation and reduces maintenance requirements over long operating periods.

In a nutshell

The right choise for

With the Conti Conti-V spb 3450 V-belt, you ensure reliable and efficient power transmission across heavy-duty industrial machinery, agricultural equipment, and hvac drive systems. Thanks to the L=L matched tolerance standard, you can install multiple belts simultaneously in matched sets with perfectly even load distribution and no length variations. The durable polyester tension cord minimizes elongation under heavy use, maintaining consistent power transfer and reducing maintenance needs. Engineered to withstand dust, oil, and temperatures ranging from -55 °C to +70 °C, this belt keeps your demanding drive systems running smoothly.

Product information FAQ

€158.00

In stock - tax incl.

Key features according to our expert

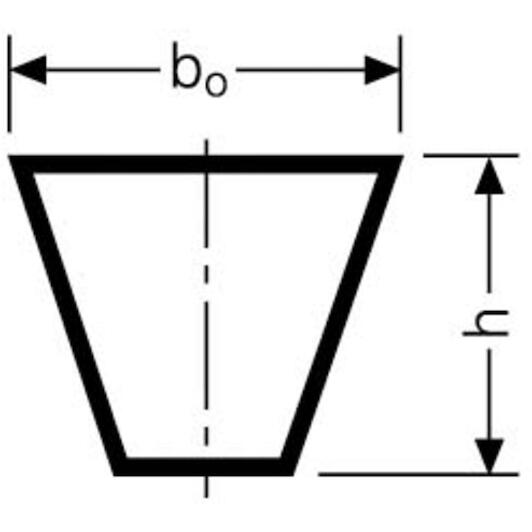

Length: 3450
Width: 16,3 mm
Height: 13 mm
Profile (V-belt): SPB
Reference length Ld: 3450 mm
Inner length (Li): 3390 mm; 133,464 inch
Outer length (La): 3472 mm
Material (cord): PE
Product line: CONTI V
RMA: 5V1358
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 3450
Width: 16,3 mm
Height: 13 mm
Profile (v-belt): SPB
Reference length ld: 3450 mm
Inner length (li): 3390 mm; 133,464 inch
Outer length (la): 3472 mm
Material (cord): PE
Product line: CONTI V
Rma: 5V1358
Colour (manufacturer): Black

Brand CONTI
05010116
EAN 4010858740443
Supplier number CONTI SPB3450

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: The belt has a width of 16.3 mm, a height of 13 mm, and a datum length Ld of 3450 mm (outer length La is 3472 mm).
Which profile and standards does this belt match?: It features an SPB profile and corresponds to the 5V (RMA 5V1358) and 15N standards.
What does the L=L designation mean on this CONTI-V belt?: L=L indicates matched tolerance sets, allowing you to install multiple belts together without prior matching.
What material is used for the tension cord?: The internal tension cord of this wrapped V-belt is made of polyester (PE).
What is the operating temperature range for this belt?: The belt is designed to operate in temperatures ranging from -55 °C to +70 °C.
