What are the dimensions of this Conti V-belt?

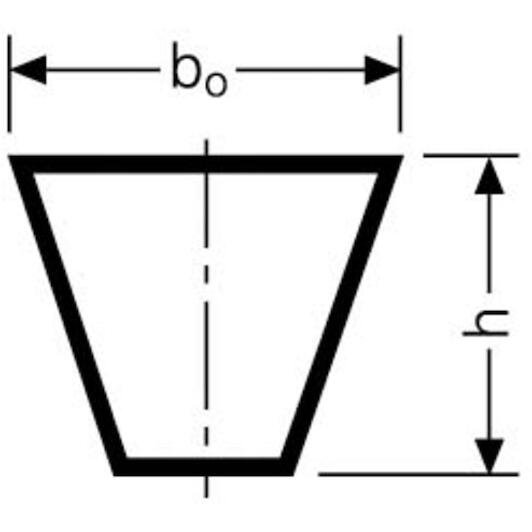

It features an SPA profile with a width of 12.7 mm, a height of 10 mm, and a datum length Ld of 2057 mm.

What does the L=L designation mean?

It indicates matched-set manufacturing tolerances. You can combine multiple belts on multi-groove drives without extra sorting.

What material is the tension cord made of?

The tension cord of this Conti-V belt is made of polyester (PE).

What is the operating temperature range for this belt?

This V-belt operates in a temperature range from -55 °C to +70 °C.

Is this V-belt antistatic?

Yes, it is electrically conductive according to ISO 1813.

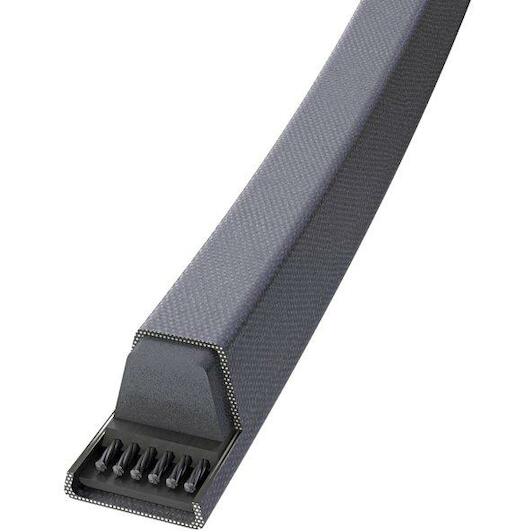

CONTI SPA2057 CONTI V belt SPA 2057

Name: CONTI SPA2057 CONTI V belt SPA 2057
Brand: CONTI
SKU: 05010219
Price: 64.64 EUR
Availability: InStock

Supplier number: CONTI SPA2057 | EAN 4010858722081

64.64 tax incl.

€53.43 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with the SPA 2057 V-belt

Practical benefits

Perfect matched set operation: Thanks to the matched-set L=L tolerance, you can fit multiple belts together without uneven tension or slip.
Built for demanding environments: Designed to endure temperatures from -55 °C to +70 °C, the wrapped profile also resists dust and moderate oil exposure.
High tensile polyester cord: The heavy-duty PE tension member minimizes elongation under load, keeping your mechanical drive operating at peak efficiency.

In a nutshell

The right choise for

With the Conti Conti-V spa 2057 V-belt, you quickly restore reliable, slip-free power transmission across industrial machinery, agricultural equipment, and hvac systems. Thanks to the precise L=L matched-set tolerance, you can fit multiple belts directly onto multi-groove drives without uneven tension or extra sorting. Its high-tensile polyester cord minimizes elongation under heavy loads, while the durable compound withstands demanding conditions from -55 °C to +70 °C. You easily replace worn or stretched drive belts and keep your workshop and plant motors running at peak performance.

Product information FAQ

€64.64

In stock - tax incl.

Key features according to our expert

Length: 2057
Width: 12,7 mm
Height: 10 mm
Profile (V-belt): SPA
Reference length Ld: 2057 mm
Inner length (Li): 2011 mm; 79,173 inch
Outer length (La): 2074 mm
Material (cord): PE
Product line: CONTI V
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 2057
Width: 12,7 mm
Height: 10 mm
Profile (v-belt): SPA
Reference length ld: 2057 mm
Inner length (li): 2011 mm; 79,173 inch
Outer length (la): 2074 mm
Material (cord): PE
Product line: CONTI V
Colour (manufacturer): Black

Brand CONTI
05010219
EAN 4010858722081
Supplier number CONTI SPA2057

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this Conti V-belt?: It features an SPA profile with a width of 12.7 mm, a height of 10 mm, and a datum length Ld of 2057 mm.
What does the L=L designation mean?: It indicates matched-set manufacturing tolerances. You can combine multiple belts on multi-groove drives without extra sorting.
What material is the tension cord made of?: The tension cord of this Conti-V belt is made of polyester (PE).
What is the operating temperature range for this belt?: This V-belt operates in a temperature range from -55 °C to +70 °C.
Is this V-belt antistatic?: Yes, it is electrically conductive according to ISO 1813.
