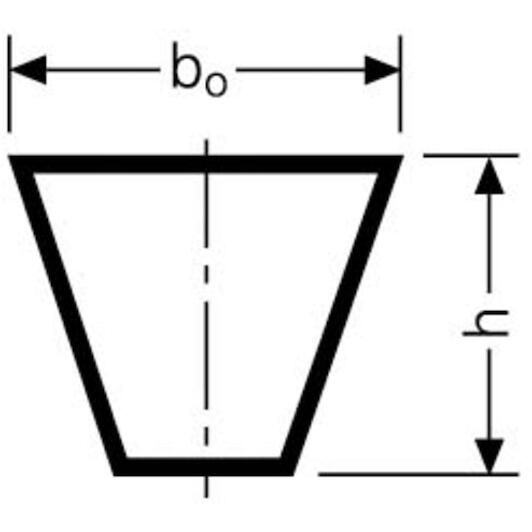

What are the dimensions of this V-belt?

The belt has an SPA profile with a top width of 12.7 mm, a height of 10 mm, a datum length Ld of 1882 mm, and an outside length La of 1899 mm.

What does the L=L designation mean?

L=L indicates matched set tolerances. It allows you to run multiple belts in a multi-groove drive without manual matching.

What material is used for the tension member?

The internal tension cord of this Conti belt is made of durable polyester (PE).

What is the inside length of this model?

The inside length Li of this belt is 72.283 inches.

What applications is the SPA profile used for?

The SPA narrow V-belt profile is designed for industrial machinery drives, including compressors, fans, pumps, and general mechanical engineering.

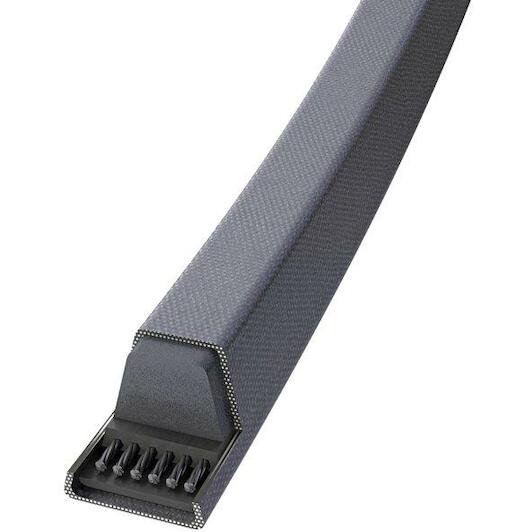

CONTI SPA1882 CONTI V belt SPA 1882

Name: CONTI SPA1882 CONTI V belt SPA 1882
Brand: CONTI
SKU: 05010209
Price: 59.75 EUR
Availability: InStock

Supplier number: CONTI SPA1882 | EAN 4010858721909

59.75 tax incl.

€49.38 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 23/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with the Conti SPA 1882 V-belt

Practical benefits

Smooth and efficient drive: You transfer high mechanical power without slippage thanks to the precise 12.7 mm SPA profile.
Strong low-stretch PE cord: The integrated polyester tension member minimizes elongation, keeping your machinery running reliably under constant load.
Perfect matching in sets: The L=L matched-set manufacturing ensures you can run multiple belts together with uniform tension distribution.

In a nutshell

The right choise for

With the Conti Conti-V V-belt spa 1882, you ensure dependable, high-efficiency power transmission in industrial machinery, compressors, pumps, and ventilation systems. Designed with an spa profile featuring a 12.7 mm width and 10 mm height, it eliminates slippage and handles demanding drive loads with ease. The internal polyester tension cord keeps elongation to a minimum, ensuring your equipment operates continuously at peak performance. Featuring a datum length Ld of 1882 mm and matched L=L tolerances, you can install multiple belts in multi-groove drives without uneven tension.

Product information FAQ

€59.75

In stock - tax incl.

Key features according to our expert

Length: 1882
Width: 12,7 mm
Height: 10 mm
Profile (V-belt): SPA
Reference length Ld: 1882 mm
Inner length (Li): 1836 mm; 72,283 inch
Outer length (La): 1899 mm
Material (cord): PE
Product line: CONTI V
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1882
Width: 12,7 mm
Height: 10 mm
Profile (v-belt): SPA
Reference length ld: 1882 mm
Inner length (li): 1836 mm; 72,283 inch
Outer length (la): 1899 mm
Material (cord): PE
Product line: CONTI V
Colour (manufacturer): Black

Brand CONTI
05010209
EAN 4010858721909
Supplier number CONTI SPA1882

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: The belt has an SPA profile with a top width of 12.7 mm, a height of 10 mm, a datum length Ld of 1882 mm, and an outside length La of 1899 mm.
What does the L=L designation mean?: L=L indicates matched set tolerances. It allows you to run multiple belts in a multi-groove drive without manual matching.
What material is used for the tension member?: The internal tension cord of this Conti belt is made of durable polyester (PE).
What is the inside length of this model?: The inside length Li of this belt is 72.283 inches.
What applications is the SPA profile used for?: The SPA narrow V-belt profile is designed for industrial machinery drives, including compressors, fans, pumps, and general mechanical engineering.
