What are the dimensions of this timing belt?

This belt has a nominal length of 550 mm, a pitch of 5 mm, and a width of 15 mm.

How many teeth does the Conti Synchrobelt HTD 5M 550 have?

This timing belt features exactly 110 teeth.

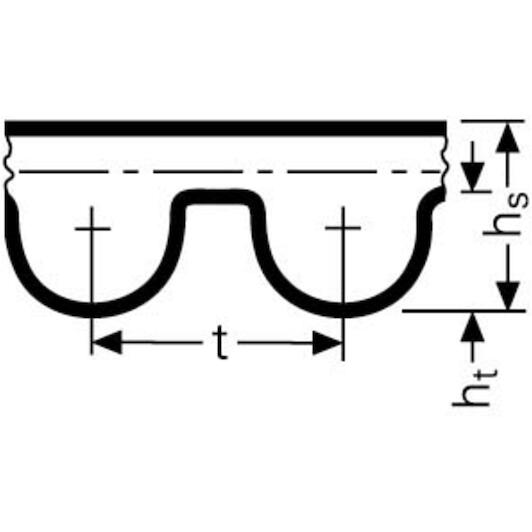

What tooth profile does this belt feature?

It features a curvilinear HTD 5M profile designed for secure, slip-free power transmission.

Which pulleys is this belt compatible with?

You can use it with timing pulleys designed for the HTD 5M tooth profile and a 15 mm belt width.

CONTI HTD 550 5M 15 Conti Synchrobelt timing belt - HTD555015

Name: CONTI HTD 550 5M 15 Conti Synchrobelt timing belt - HTD555015
Brand: CONTI
SKU: 05110108
Price: 26.31 EUR
Availability: PreOrder

Supplier number: CONTI HTD555015 | EAN

26.31 tax incl.

€21.74 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission for precision drives

Practical benefits

Conti Synchrobelt timing belt: You achieve slip-free power transmission thanks to the HTD 5M tooth profile with 110 teeth and 5 mm pitch.

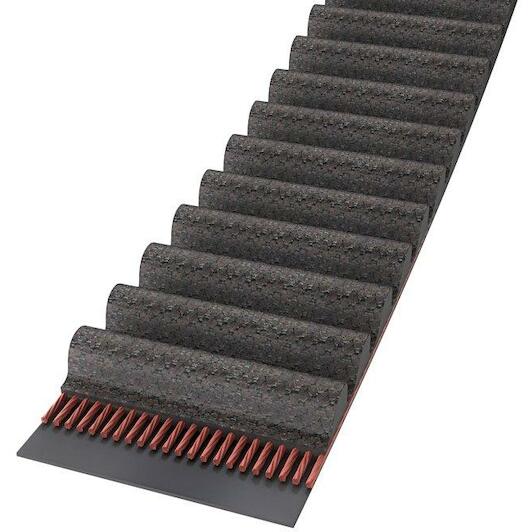

High dimensional stability: Embedded glass cord tension members prevent stretching so you maintain exact synchronization under continuous operating loads.
Quiet and durable operation: The wear-resistant rubber compound reduces running noise while providing dependable, maintenance-free performance in demanding drive systems.

In a nutshell

The right choise for

With the Conti Synchrobelt htd 5m timing belt, you achieve reliable, slip-free power transmission across your drive systems. Featuring an htd 5m curvilinear profile with 110 teeth and a 5 mm pitch, it prevents loss of synchronization between driving and driven shafts. Embedded glass cord tension members deliver exceptional dimensional stability, preventing stretching to keep your machinery, robotics, or conveyors running with precise timing. Its wear-resistant rubber construction significantly reduces operating noise compared to roller chains while eliminating lubrication requirements. Measuring 550 mm in nominal length and 15 mm in width, this belt delivers durable, maintenance-free performance under demanding operating loads.

Product information FAQ

€26.31

tax incl.

Key features according to our expert

Length: 550
Pitch: 5 mm
Width: 15 mm
Profile (timing belt): HTD 5M
Product line: CONTI SYNCHROBELT
Nominal length: 550 mm
Number of teeth: 110

Product description:

Timing belts for the lower and medium power range

Properties:

Temperature range
Depending on application
From -20 °C to +100 °C
Conditionally resistant to oil
Ozone-resistant
Suitable for tropical climates
Aging-resistant
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 550
Pitch: 5 mm
Width: 15 mm
Profile (timing belt): HTD 5M
Product line: CONTI SYNCHROBELT
Nominal length: 550 mm
Number of teeth: 110

Brand CONTI
05110108
EAN
Supplier number CONTI HTD555015

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this timing belt?: This belt has a nominal length of 550 mm, a pitch of 5 mm, and a width of 15 mm.
How many teeth does the Conti Synchrobelt HTD 5M 550 have?: This timing belt features exactly 110 teeth.
What tooth profile does this belt feature?: It features a curvilinear HTD 5M profile designed for secure, slip-free power transmission.
Which pulleys is this belt compatible with?: You can use it with timing pulleys designed for the HTD 5M tooth profile and a 15 mm belt width.
