What are the dimensions of this Conti timing belt?

This timing belt has a width of 25 mm, a total roll length of 30,000 mm (30 m), and an AT5 tooth profile with a 5 mm pitch.

What material is this timing belt made of?

It is made of wear-resistant polyurethane (PU) in white.

What applications is the Conti Synchrodrive AT5 HP suited for?

This open-ended timing belt is suited for linear drives, conveying systems, and material handling applications.

Can this open-ended belt be welded together?

Yes, the thermoplastic PU material allows the belt to be welded into an endless loop.

What substances is this belt resistant to?

It provides resistance to oils, greases, fuels, UV radiation, and ozone.

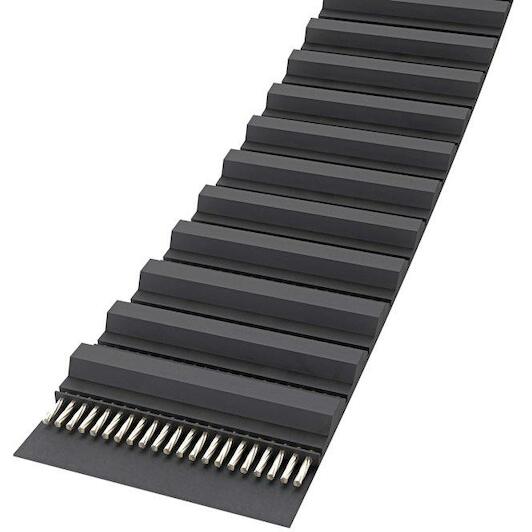

CONTI AT5 25 Conti Synchrodrive timing belt - AT525HP-W-R30

Name: CONTI AT5 25 Conti Synchrodrive timing belt - AT525HP-W-R30
Brand: CONTI
SKU: 02621004
Price: 30.9 EUR
Availability: InStock

Supplier number: CONTI AT525HP-W-R30 | EAN 4051817240383

30.90 tax incl.

€25.54 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

The minimum purchase order quantity for the product is 30.

Ordered before 20:00 - delivered as of 24/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Precise power transmission for linear drives

Practical benefits

Accurate and synchronous operation: The AT5 profile ensures you achieve reliable slip-free power transmission in demanding positioning and conveyor systems.
Durable wear-resistant polyurethane material: The tough polyurethane construction with tensile reinforcement minimizes elongation so you maintain consistent operational accuracy.
Flexible cut to length: Supplied on a 30 m roll, you can cut the exact length required for your specific setup.

In a nutshell

The right choise for

With the Conti Synchrodrive AT5 timing belt, you achieve reliable, slip-free power transmission for linear drives, conveyor systems, and precise positioning machinery. Made from wear-resistant white polyurethane (PU) with a 5 mm pitch and a 25 mm width, it delivers superior dimensional stability and minimal elongation during demanding industrial operations. Supplied on a continuous 30 m roll, this open-ended belt can be cut to the exact length required for your setup or thermally welded into an endless loop. The durable pu construction is also resistant to oils, greases, fuels, uv radiation, and ozone, ensuring smooth, accurate performance over the long term.

Product information FAQ

€30.90

In stock - tax incl.

Key features according to our expert

Length: 30000
Pitch: 5 mm
Width: 25 mm
Profile (timing belt): AT5
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Product description:

Open-ended polyurethane timing belts for linear and transport technology, entry systems

Properties:

Temperature range from -30 °C to +80 °C (please request technical advice for temperatures below -10 °C and above +50 °C)
Can be welded with thermoplastics
Wear-resistant
Raw materials and production are silicone free
Resistant to fuel and benzene
Oil- and grease-resistant
Resistant to UV and ozone
Suitable for tropical climates
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 30000
Pitch: 5 mm
Width: 25 mm
Profile (timing belt): AT5
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Brand CONTI
02621004
EAN 4051817240383
Supplier number CONTI AT525HP-W-R30

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this Conti timing belt?: This timing belt has a width of 25 mm, a total roll length of 30,000 mm (30 m), and an AT5 tooth profile with a 5 mm pitch.
What material is this timing belt made of?: It is made of wear-resistant polyurethane (PU) in white.
What applications is the Conti Synchrodrive AT5 HP suited for?: This open-ended timing belt is suited for linear drives, conveying systems, and material handling applications.
Can this open-ended belt be welded together?: Yes, the thermoplastic PU material allows the belt to be welded into an endless loop.
What substances is this belt resistant to?: It provides resistance to oils, greases, fuels, UV radiation, and ozone.
