What are the main dimensions of this timing belt?

It features a pitch length of 1067 mm (42 inches), a width of 50.8 mm (2 inches), and a tooth pitch of 12.7 mm.

How many teeth does the Conti Synchrobelt 420 H 200 have?

This timing belt has exactly 84 teeth with a trapezoidal H profile.

What does the code 420 H 200 indicate?

420 represents a pitch length of 42.0 inches (1067 mm), H is the profile (12.7 mm pitch), and 200 denotes a belt width of 2.00 inches (50.8 mm).

What is the operating temperature range for this belt?

Depending on the application, this belt operates in temperatures ranging from -20 °C to +100 °C.

CONTI 420 H 200 Conti Synchrobelt timing belt - 420H200

Name: CONTI 420 H 200 Conti Synchrobelt timing belt - 420H200
Brand: CONTI
SKU: 05110638
Price: 118.33 EUR
Availability: PreOrder

Supplier number: CONTI 420H200 | EAN

118.33 tax incl.

€97.79 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

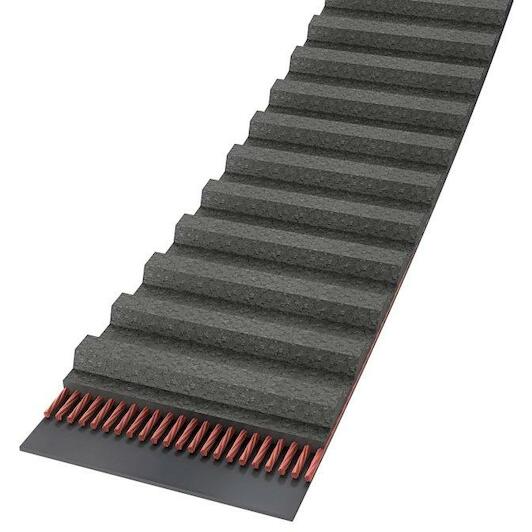

Synchronous power with the Conti Synchrobelt timing belt

Practical benefits

Positive non-slip power transmission: Featuring 84 precision-formed teeth and a 12.7 mm pitch, you achieve smooth and exact speed ratios without slipping.
Outstanding dimensional stability: High-strength glass fibre cords prevent stretching so you maintain consistent tension and dependable drive alignment.
Maintenance-free industrial operation: The durable, moderately oil-resistant rubber compound eliminates the need for relubrication or frequent readjustments.

In a nutshell

The right choise for

With the Conti Synchrobelt timing belt 420 h 200, you achieve dependable, quiet, and positive slip-free power transmission in industrial machinery and conveyor systems. Featuring 84 precision teeth with a 12.7 mm pitch, a 50.8 mm width, and a nominal length of 1067 mm, it delivers exact shaft synchronization and positioning accuracy. Its robust neoprene build with high-strength glass fibre cords prevents stretching to maintain consistent belt tension under load. Operating reliably in temperatures from -20 °C to +100 °C, this durable timing belt provides completely maintenance-free operation without lubrication.

Product information FAQ

€118.33

tax incl.

Key features according to our expert

Length: 420
Pitch: 12,7 mm
Width: 50,8 mm

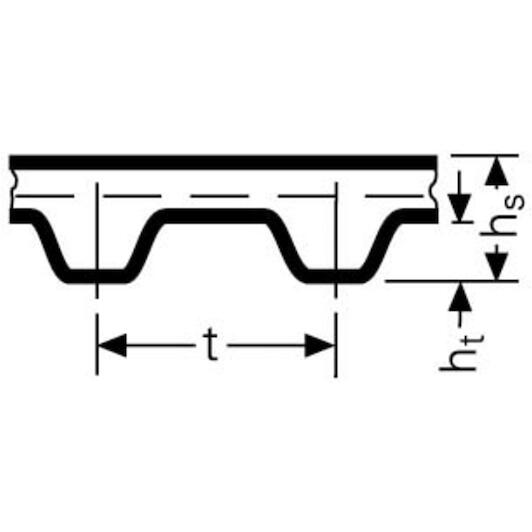

Profile (timing belt): H
Product line: CONTI SYNCHROBELT
Nominal length: 420 1/10 inch; 1067 mm
Number of teeth: 84

Product description:

Timing belts for the lower and medium power range

Properties:

Temperature range
Depending on application
From -20 °C to +100 °C
Conditionally resistant to oil
Ozone-resistant
Suitable for tropical climates
Aging-resistant
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 420
Pitch: 12,7 mm
Width: 50,8 mm
Profile (timing belt): H
Product line: CONTI SYNCHROBELT
Nominal length: 420 1/10 inch; 1067 mm
Number of teeth: 84

Brand CONTI
05110638
EAN
Supplier number CONTI 420H200

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of this timing belt?: It features a pitch length of 1067 mm (42 inches), a width of 50.8 mm (2 inches), and a tooth pitch of 12.7 mm.
How many teeth does the Conti Synchrobelt 420 H 200 have?: This timing belt has exactly 84 teeth with a trapezoidal H profile.
What does the code 420 H 200 indicate?: 420 represents a pitch length of 42.0 inches (1067 mm), H is the profile (12.7 mm pitch), and 200 denotes a belt width of 2.00 inches (50.8 mm).
What is the operating temperature range for this belt?: Depending on the application, this belt operates in temperatures ranging from -20 °C to +100 °C.
