What are the exact length measurements of this V-belt?

The inside length Li is 3250 mm (128 inches), the datum length Ld is 3309 mm, and the outside length La is 3338 mm.

What are the dimensions of this belt profile?

This belt features a classic C profile (22/C) with a top width of 22 mm and a height of 14 mm.

What does the L=L designation mean for Conti belts?

L=L designates matched-set manufacturing tolerances. You can use multiple belts together in multi-groove drives without prior sorting.

What material is used for the tension cord?

The cord is made of polyester (PE), providing high tensile strength and minimal stretch under drive loads.

What is the operating temperature range for this V-belt?

The belt operates reliably in temperatures ranging from -55 °C to +70 °C and is resistant to dust and conditionally to oil.

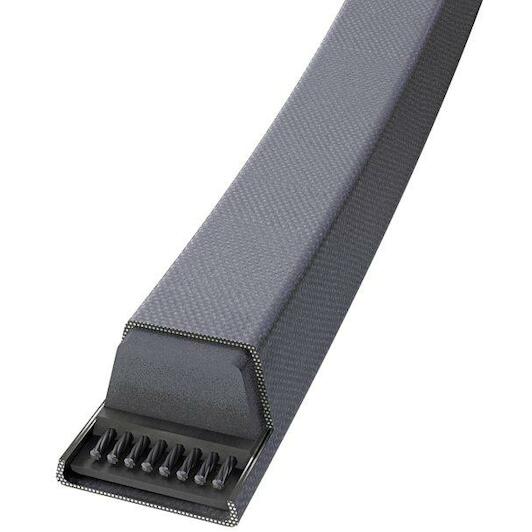

CONTI 22.0X3250 CONTI V belt 22.0X 3250 Li / 3309 Ld C 128

Name: CONTI 22.0X3250 CONTI V belt 22.0X 3250 Li / 3309 Ld C 128
Brand: CONTI
SKU: 05030417
Price: 152.8 EUR
Availability: InStock

Supplier number: CONTI 22.0X3250 | EAN 4010858223250

152.80 tax incl.

€126.28 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered tomorrow 20/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission by Conti

Practical benefits

Matched sets without sorting: Thanks to the L=L manufacturing tolerance, you can run multiple belts together without length discrepancies.
High tensile polyester cord: The integrated PE tension members provide exceptional strength, ensuring you experience minimal belt stretch under load.
Resilient in tough environments: You benefit from dependable drive operation with dust resistance and a wide temperature tolerance from -55 °C to +70 °C.

In a nutshell

The right choise for

With the Conti V V-belt C 128, you achieve dependable power transmission across industrial machinery, agricultural equipment, and conveyor systems. Featuring a classic C profile with a 22 mm top width and a datum length of 3309 mm (inside length 3250 mm), it transfers mechanical torque smoothly between pulleys. The durable pe tension cords ensure minimal belt stretch and maximum dimensional stability under heavy mechanical loads. Thanks to the L=L matched-set tolerance, you can install multiple belts in multi-groove drives without prior sorting. Operating reliably from -55 °C to +70 °C with dust-resistant properties, it keeps your drive systems running at peak performance.

Product information FAQ

€152.80

In stock - tax incl.

Key features according to our expert

Length: 128
Width: 22 mm
Height: 14 mm
Profile (V-belt): C
Reference length Ld: 3309 mm
Inner length (Li): 3250 mm; 128 inch
Outer length (La): 3338 mm
Material (cord): PE
Product line: CONTI V
RMA: C128
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 128
Width: 22 mm
Height: 14 mm
Profile (v-belt): C
Reference length ld: 3309 mm
Inner length (li): 3250 mm; 128 inch
Outer length (la): 3338 mm
Material (cord): PE
Product line: CONTI V
Rma: C128
Colour (manufacturer): Black

Brand CONTI
05030417
EAN 4010858223250
Supplier number CONTI 22.0X3250

Frequently asked questions about this product

Answered by specialists

What are the exact length measurements of this V-belt?: The inside length Li is 3250 mm (128 inches), the datum length Ld is 3309 mm, and the outside length La is 3338 mm.
What are the dimensions of this belt profile?: This belt features a classic C profile (22/C) with a top width of 22 mm and a height of 14 mm.
What does the L=L designation mean for Conti belts?: L=L designates matched-set manufacturing tolerances. You can use multiple belts together in multi-groove drives without prior sorting.
What material is used for the tension cord?: The cord is made of polyester (PE), providing high tensile strength and minimal stretch under drive loads.
What is the operating temperature range for this V-belt?: The belt operates reliably in temperatures ranging from -55 °C to +70 °C and is resistant to dust and conditionally to oil.
