What are the dimensions of this V-belt?

This belt features a C (22/C) profile with a top width of 22 mm and a height of 14 mm.

What are the length specifications for this model?

The inside length (Li) is 2057 mm (81 inches), the datum length (Ld) is 2116 mm, and the outside length (La) is 2145 mm.

What does the L=L designation mean?

It indicates matched set tolerances, allowing you to install multiple belts in a drive set without additional matching.

What material is used for the tension cord?

The internal tension member of the belt is made of polyester (PE).

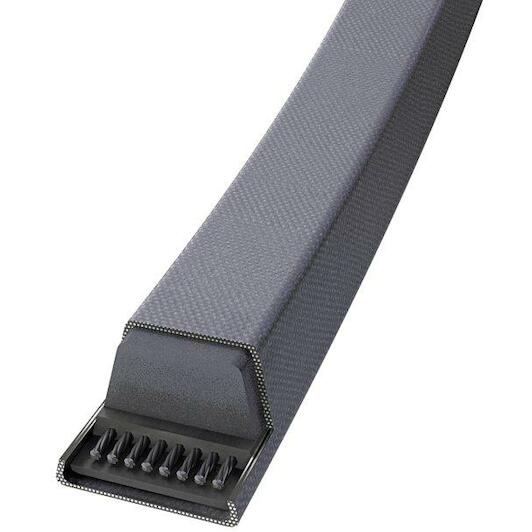

CONTI 22.0X2057 CONTI V belt 22.0X 2057 Li / 2116 Ld C 81

Name: CONTI 22.0X2057 CONTI V belt 22.0X 2057 Li / 2116 Ld C 81
Brand: CONTI
SKU: 05030390
Price: 96.82 EUR
Availability: InStock

Supplier number: CONTI 22.0X2057 | EAN 4010858422066

96.82 tax incl.

€80.01 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 21/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable power transmission for heavy-duty machinery

Practical benefits

Smooth high torque transmission: The classic C profile with a 22 mm width ensures you achieve uniform, vibration-free power transfer.
Durable PE tensile cord: Built with a resilient PE cord, the Conti V-belt resists stretching and keeps optimal operating tension.
Matched for multiple-belt drives: Consistent length tolerances let you install multiple belts across drives without uneven load distribution.

In a nutshell

The right choise for

With the Conti Conti-V V-belt C 81, you ensure reliable, smooth power transmission across heavy-duty industrial machinery. Its classic C profile, measuring 22 mm wide and 14 mm high, delivers stable, slip-free drive performance between pulleys. Thanks to the built-in pe tension cord, the belt resists stretching to maintain consistent operating tension over time. The L=L matched tolerance design allows you to install multiple belts across multi-groove drives without uneven load distribution or extra sorting. Featuring an inside length of 2057 mm (81 inches) and a datum length of 2116 mm, this belt provides a precise replacement for worn drives in conveyors, compressors, and agricultural equipment.

Product information FAQ

€96.82

In stock - tax incl.

Key features according to our expert

Length: 81
Width: 22 mm
Height: 14 mm
Profile (V-belt): C
Reference length Ld: 2116 mm
Inner length (Li): 2057 mm; 81 inch
Outer length (La): 2145 mm
Material (cord): PE
Product line: CONTI V
RMA: C81
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 81
Width: 22 mm
Height: 14 mm
Profile (v-belt): C
Reference length ld: 2116 mm
Inner length (li): 2057 mm; 81 inch
Outer length (la): 2145 mm
Material (cord): PE
Product line: CONTI V
Rma: C81
Colour (manufacturer): Black

Brand CONTI
05030390
EAN 4010858422066
Supplier number CONTI 22.0X2057

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This belt features a C (22/C) profile with a top width of 22 mm and a height of 14 mm.
What are the length specifications for this model?: The inside length (Li) is 2057 mm (81 inches), the datum length (Ld) is 2116 mm, and the outside length (La) is 2145 mm.
What does the L=L designation mean?: It indicates matched set tolerances, allowing you to install multiple belts in a drive set without additional matching.
What material is used for the tension cord?: The internal tension member of the belt is made of polyester (PE).
