What are the dimensions of this V-belt?

The belt has a top width of 17 mm, a height of 11 mm, an inside length of 2950 mm (116 inches), a datum length of 2995 mm, and an outside length of 3019 mm.

What profile does this V-belt have?

This V-belt features a classic B profile (also designated as 17/B).

What does the L=L designation mean?

The L=L marking indicates matched tolerance manufacturing, allowing you to use multiple belts together in multi-groove drives without manual matching.

What material is the tension cord made of?

The internal tension cord is made of polyester (PE).

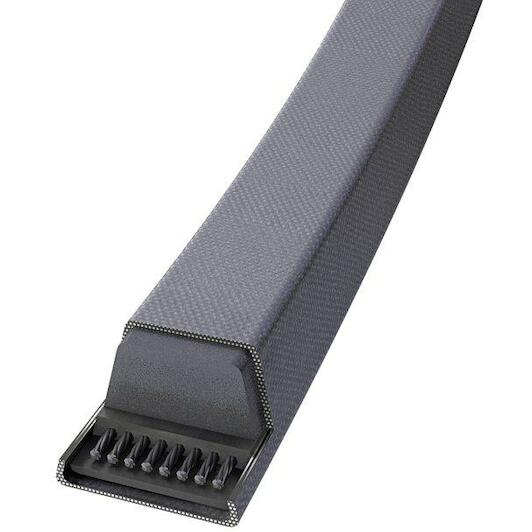

CONTI 17.0X2950 CONTI V-belt 17.0X 2950 Li / 2995 Ld B 116

Name: CONTI 17.0X2950 CONTI V-belt 17.0X 2950 Li / 2995 Ld B 116
Brand: CONTI
SKU: 05030313
Price: 98.59 EUR
Availability: InStock

Supplier number: CONTI 17.0X2950 | EAN 4010858162955

98.59 tax incl.

€81.48 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 09/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable power for drive systems

Practical benefits

Strong Conti V belt: You transfer machine torque smoothly and efficiently with a proven 17 mm wide profile B section built for demanding drives.
Minimal operational stretch: The integrated polyester tension cords keep belt elongation low, saving you time by preventing frequent retensioning during heavy operations.
Consistent dimensional fit: Designed with a 2995 mm reference length, you secure stable, slip-resistant engagement across industrial and agricultural equipment pulleys.

In a nutshell

The right choise for

With the Conti V B116 V-belt, you reliably transfer mechanical power across your industrial machinery, agricultural equipment, and ventilation systems. Built with a classic b profile measuring 17 mm wide and 11 mm high, it prevents slippage on standard pulley setups. Strong internal polyester tension cords minimize operational stretching, saving you maintenance time by eliminating frequent retensioning. With a datum length of 2995 mm and precision L=L matched manufacturing tolerances, you can easily install multiple belts in multi-groove drive systems while maintaining uniform load distribution.

Product information FAQ

€98.59

In stock - tax incl.

Key features according to our expert

Length: 116
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 2995 mm
Inner length Li: 2950 mm; 116 inch
Outer length La: 3019 mm
Material (cord): PE
Product line: CONTI V
RMA: B116
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 116
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 2995 mm
Inner length li: 2950 mm; 116 inch
Outer length la: 3019 mm
Material (cord): PE
Product line: CONTI V
Rma: B116
Colour (manufacturer): Black

Brand CONTI
05030313
EAN 4010858162955
Supplier number CONTI 17.0X2950

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: The belt has a top width of 17 mm, a height of 11 mm, an inside length of 2950 mm (116 inches), a datum length of 2995 mm, and an outside length of 3019 mm.
What profile does this V-belt have?: This V-belt features a classic B profile (also designated as 17/B).
What does the L=L designation mean?: The L=L marking indicates matched tolerance manufacturing, allowing you to use multiple belts together in multi-groove drives without manual matching.
What material is the tension cord made of?: The internal tension cord is made of polyester (PE).
