What are the dimensions of this V-belt?

This belt has a profile B (17/B), a top width of 17 mm, and a height of 11 mm.

What are the length measurements for this CONTI-V belt?

The inside length (Li) is 1930 mm (76 inches), the datum length (Ld) is 1975 mm, and the outside length (La) is 1999 mm.

What does the L=L designation mean?

L=L indicates matched belt tolerances, allowing you to use multiple belts together in matched sets without sorting.

What material is used for the tension cord?

The internal tension cord is made of polyester (PE) for stable power transmission.

How do you verify if profile B 76 fits your machine?

Compare the 17 mm width and the 1930 mm inside length with the specifications of your pulleys and existing belt.

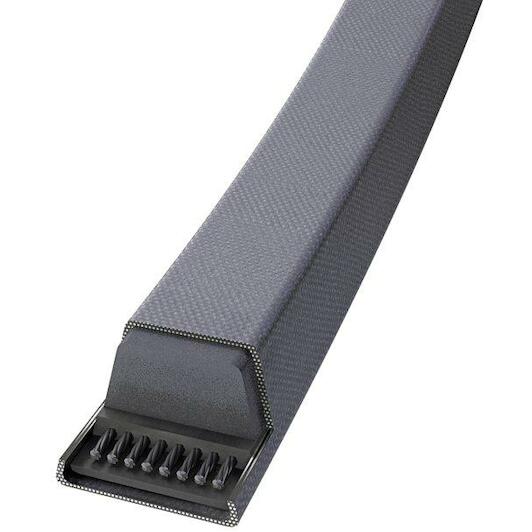

CONTI 17.0X1930 CONTI V belt 17.0X 1930 Li / 1975 Ld B 76

Name: CONTI 17.0X1930 CONTI V belt 17.0X 1930 Li / 1975 Ld B 76
Brand: CONTI
SKU: 05030277
Price: 64.33 EUR
Availability: InStock

Supplier number: CONTI 17.0X1930 | EAN 4010858911935

64.33 tax incl.

€53.17 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Ordered before 20:00 - delivered tomorrow 23/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable power delivery for demanding drives

Practical benefits

Perfectly matched set operation: The L=L manufacturing tolerance ensures you can run matched belt sets simultaneously without length differences or uneven load distribution.
Minimal stretch under load: Built with a high-strength PE tension cord, you get consistent tension retention and require fewer retensioning adjustments.
Durable Conti classic profile: The tough wrapped outer construction protects the core against surface wear, keeping your industrial machinery operating smoothly every day.

In a nutshell

The right choise for

With the Conti Conti-V V-belt b 76, you ensure dependable mechanical torque transmission across industrial machinery and agricultural equipment. This wrapped classical b profile (17/B) belt features a 17 mm top width and an inside length of 1930 mm (76 inches). Built with a durable pe tension cord, it prevents excessive stretching under load to maintain steady tension on electric motor drives, pumps, and conveyor systems. Thanks to tight L=L manufacturing tolerances, you can easily install matched belt sets that run in perfect balance without length differences.

Product information FAQ

€64.33

In stock - tax incl.

Key features according to our expert

Length: 76
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 1975 mm
Inner length (Li): 1930 mm; 76 inch
Outer length (La): 1999 mm
Material (cord): PE
Product line: CONTI V
RMA: B76
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 76
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 1975 mm
Inner length (li): 1930 mm; 76 inch
Outer length (la): 1999 mm
Material (cord): PE
Product line: CONTI V
Rma: B76
Colour (manufacturer): Black

Brand CONTI
05030277
EAN 4010858911935
Supplier number CONTI 17.0X1930

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This belt has a profile B (17/B), a top width of 17 mm, and a height of 11 mm.
What are the length measurements for this CONTI-V belt?: The inside length (Li) is 1930 mm (76 inches), the datum length (Ld) is 1975 mm, and the outside length (La) is 1999 mm.
What does the L=L designation mean?: L=L indicates matched belt tolerances, allowing you to use multiple belts together in matched sets without sorting.
What material is used for the tension cord?: The internal tension cord is made of polyester (PE) for stable power transmission.
How do you verify if profile B 76 fits your machine?: Compare the 17 mm width and the 1930 mm inside length with the specifications of your pulleys and existing belt.
