What are the exact dimensions of this V-belt?

This V-belt has a top width of 17 mm, a height of 11 mm, an inside length (Li) of 1175 mm (46 inches), and a datum length (Ld) of 1220 mm.

What does the L=L designation mean on Conti belts?

L=L indicates matched set tolerances. You can install multiple belts of the same size on multi-groove drives without manual matching.

Which profile standard does this belt fit?

This is a classical wrapped V-belt with profile B (also known as 17 or 17/B), complying with DIN 2215 and RMA B46 standards.

What material is used for the tension cord?

The internal tension cord is made of PE (polyester), providing low stretch and uniform power transmission.

What are the operating conditions and resistance properties of this belt?

It operates in temperatures from -55 °C to +70 °C, resists dust, is conditionally oil-resistant, and is antistatic according to ISO 1813.

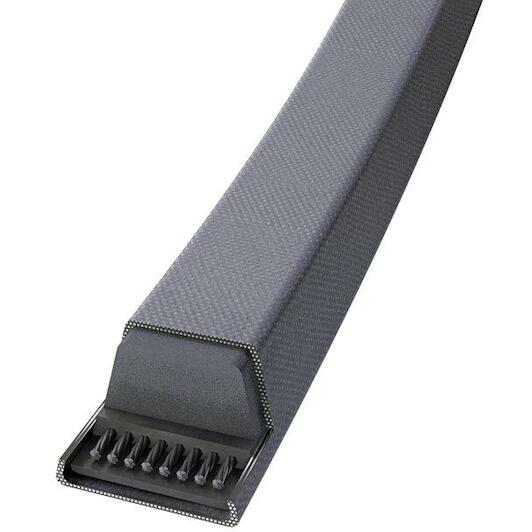

CONTI 17.0X1175 CONTI V-belt 17.0X 1175 Li / 1220 Ld B 46

Name: CONTI 17.0X1175 CONTI V-belt 17.0X 1175 Li / 1220 Ld B 46
Brand: CONTI
SKU: 05030238
Price: 40.9 EUR
Availability: InStock

Supplier number: CONTI 17.0X1175 | EAN 4010858361167

40.90 tax incl.

€33.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with B46

Practical benefits

Consistent and slip-free drive: The classic wrapped B profile ensures you achieve smooth mechanical power transfer without losing torque.
High resistance to harsh conditions: You can operate machinery reliably across tough environments thanks to resistance against dust, oil, and temperatures up to +70 °C.
Durable and low maintenance: High-strength PE cords absorb operational shock loads so you benefit from minimal belt stretch and reduced downtime.

In a nutshell

The right choise for

With the Conti Conti-V B46 V-belt, you ensure reliable, slip-free power transmission across industrial machinery, compressors, and workshop equipment. Featuring a classical b profile with a 17 mm width and 11 mm height, it seats securely in pulley grooves for smooth mechanical operation. High-strength internal pe tension cords easily absorb shock loads to prevent stretching, while the rugged wrapped construction withstands dust, oil, and temperatures from -55 °C to +70 °C. Thanks to the L=L manufacturing tolerance, you can install multiple belts on multi-groove drives without tension mismatch. Replace worn drive belts quickly and keep your machinery running efficiently with minimal maintenance.

Product information FAQ

€40.90

In stock - tax incl.

Key features according to our expert

Length: 46
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 1220 mm
Inner length Li: 1175 mm; 46 inch
Outer length La: 1244 mm
Material (cord): PE
Product line: CONTI V
RMA: B46
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 46
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 1220 mm
Inner length li: 1175 mm; 46 inch
Outer length la: 1244 mm
Material (cord): PE
Product line: CONTI V
Rma: B46
Colour (manufacturer): Black

Brand CONTI
05030238
EAN 4010858361167
Supplier number CONTI 17.0X1175

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: This V-belt has a top width of 17 mm, a height of 11 mm, an inside length (Li) of 1175 mm (46 inches), and a datum length (Ld) of 1220 mm.
What does the L=L designation mean on Conti belts?: L=L indicates matched set tolerances. You can install multiple belts of the same size on multi-groove drives without manual matching.
Which profile standard does this belt fit?: This is a classical wrapped V-belt with profile B (also known as 17 or 17/B), complying with DIN 2215 and RMA B46 standards.
What material is used for the tension cord?: The internal tension cord is made of PE (polyester), providing low stretch and uniform power transmission.
What are the operating conditions and resistance properties of this belt?: It operates in temperatures from -55 °C to +70 °C, resists dust, is conditionally oil-resistant, and is antistatic according to ISO 1813.
