What are the dimensions of this V-belt?

It has a width of 13 mm, a height of 8 mm, an inside length (Li) of 1930 mm (76 inches), a datum length (Ld) of 1960 mm, and an outside length (La) of 1980 mm.

What profile does this V-belt use?

The belt features a classic 13/A section profile (RMA code A76).

What material is the tension cord made of?

The internal tension cord is made of PE (polyester).

What does the L=L designation mean on this Conti belt?

L=L indicates matched-set manufacturing tolerances. This allows you to run multiple belts of the same size side by side on multi-groove drives without length discrepancies.

What applications is this classical V-belt suitable for?

It is designed for demanding drive applications in mechanical engineering, agricultural equipment, garden machinery, and conveyor systems according to DIN 2215.

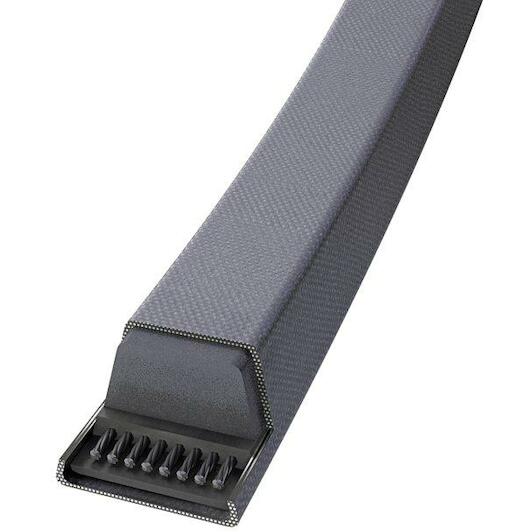

CONTI 13.0X1930 CONTI V belt 13.0X 1930 Li / 1960 Ld A 76

Name: CONTI 13.0X1930 CONTI V belt 13.0X 1930 Li / 1960 Ld A 76
Brand: CONTI
SKU: 05030158
Price: 44.04 EUR
Availability: PreOrder

Supplier number: CONTI 13.0X1930 | EAN 4010858901936

44.04 tax incl.

€36.40 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/11/2026

Ordered before 20:00 - delivered as of 10/11/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable power transmission for demanding drives

Practical benefits

Matched set precision fit: The exact L=L manufacturing tolerance allows you to run multiple belts in parallel without uneven tension.
High tensile strength core: The integrated PE cord prevents premature stretching, keeping your drive running smoothly and efficiently under heavy loads.
Resilient Conti V construction: The wrapped outer jacket offers strong wear resistance, giving you extended operating life in industrial machinery.

In a nutshell

The right choise for

Restore dependable mechanical power transmission in your machinery with the Conti Conti-V V-belt A76. Featuring a classic 13/A profile, 13 mm width, and a 1930 mm inside length (76 inches), this belt delivers consistent torque across industrial equipment, agricultural machinery, and conveyor drives. The robust pe tension cord resists stretching under heavy load, keeping your drive running smoothly and efficiently. Thanks to precise L=L matched-set manufacturing tolerances, you can easily pair multiple belts on multi-groove drives without uneven tension or length discrepancies. It is the practical choice to minimize maintenance downtime and maintain smooth machine operations.

Product information FAQ

€44.04

tax incl.

Key features according to our expert

Length: 76
Width: 13 mm
Height: 8 mm
Profile (V-belt): A
Reference length Ld: 1960 mm
Inner length (Li): 1930 mm; 76 inch
Outer length (La): 1980 mm
Material (cord): PE
Product line: CONTI V
RMA: A76
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 76
Width: 13 mm
Height: 8 mm
Profile (v-belt): A
Reference length ld: 1960 mm
Inner length (li): 1930 mm; 76 inch
Outer length (la): 1980 mm
Material (cord): PE
Product line: CONTI V
Rma: A76
Colour (manufacturer): Black

Brand CONTI
05030158
EAN 4010858901936
Supplier number CONTI 13.0X1930

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: It has a width of 13 mm, a height of 8 mm, an inside length (Li) of 1930 mm (76 inches), a datum length (Ld) of 1960 mm, and an outside length (La) of 1980 mm.
What profile does this V-belt use?: The belt features a classic 13/A section profile (RMA code A76).
What material is the tension cord made of?: The internal tension cord is made of PE (polyester).
What does the L=L designation mean on this Conti belt?: L=L indicates matched-set manufacturing tolerances. This allows you to run multiple belts of the same size side by side on multi-groove drives without length discrepancies.
What applications is this classical V-belt suitable for?: It is designed for demanding drive applications in mechanical engineering, agricultural equipment, garden machinery, and conveyor systems according to DIN 2215.
