BOSCH UniversalLevel 360 cross line laser green in soft storage case (4x LR06/AA battery) - 0603663E05

Supplier number: BOSCH 0603663E05 | EAN 4059952648071
This product has been discontinued.

Successor to this product

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.



Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 12 m
  • Tripod thread: 1/4"
  • Projection (laser beams): 1x 360° horizontal + 1 line vertical
  • Self-levelling range: 4,0000 °
  • Weight: 0,56 kg
  • With tripod: No
  • Supplied in: Case
  • Laser class: Class 2
  • Accuracy: 0,4 mm/m
  • Colour (laser beams): Green

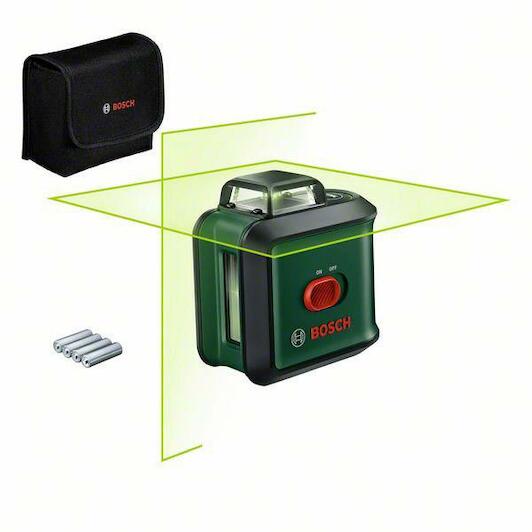

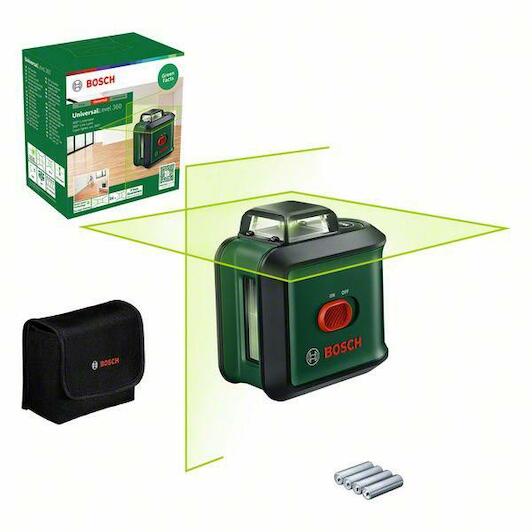

Scope of delivery

  • Alkaline (4x LR06/AA), bag

Product description

  • 360° line laser UniversalLevel 360 (Alkaline (4x LR06/AA), bag)

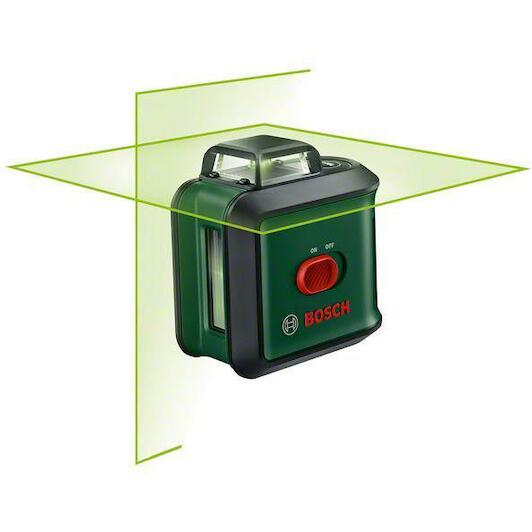

  • Combination of 360° horizontal line with one vertical line for simple, fast and precise alignment applications with maximum visibility
  • Green laser technology: up to 4 times better visibility, even in bright light

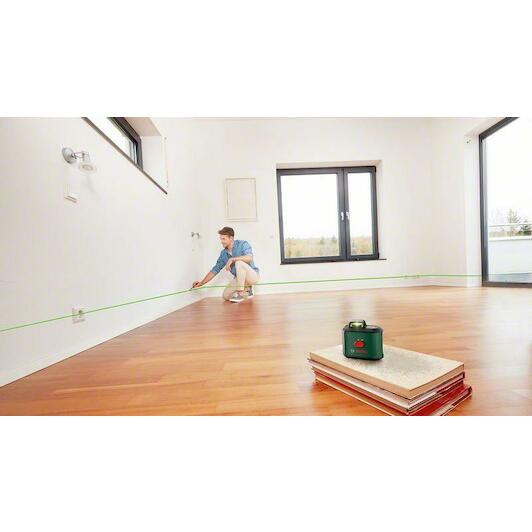

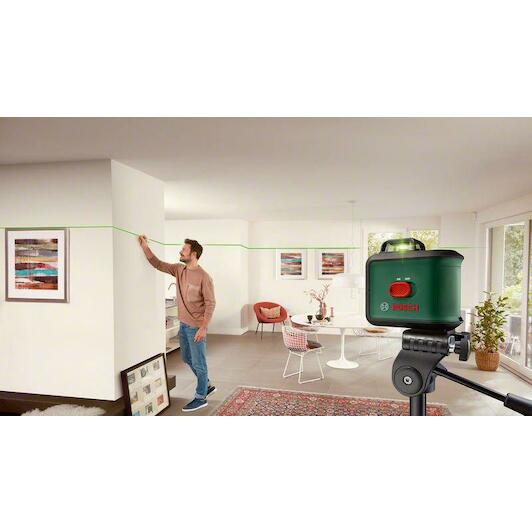

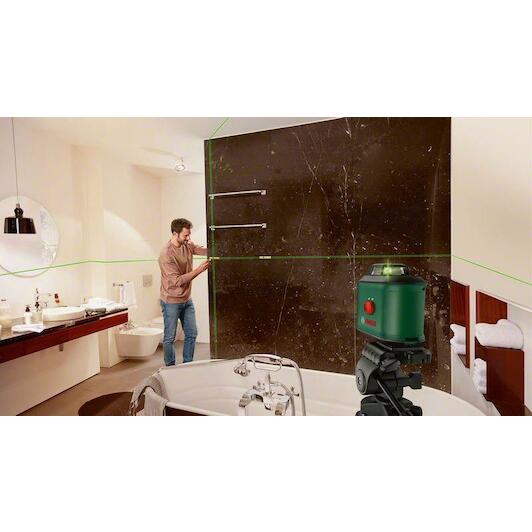

  • Perfect for mounting curtain rails, sockets and suspended ceilings

Advantages

  • With the self-levelling 360° line laser UniversalLevel 360 from Bosch, complicated alignment of objects in your home is a thing of the past.
  • Thanks to state-of-the-art laser technology and extremely simple operation, all your work can be carried out quickly and accurately.
  • What's more, the perfectly levelled horizontal or vertical line allows you to align objects flawlessly in the entire room.

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Max. range
12 m
Tripod thread
1/4"
Projection (laser beams)
1x 360° horizontal + 1 line vertical
Self-levelling range
4,0000 °
Weight
0,56 kg
With tripod
No
Supplied in
Case
Laser class
Class 2
Accuracy
0,4 mm/m
Colour (laser beams)
Green
Self-levelling time, typ.
4 s
Operating range diameter
24 m
Battery 4x
1,5 V
Levelling range +-
4 °
Tool dimensions (l x w x h)
114 x 66 x 111 mm
Opening angle
120 °
Laser diode laser line
500 - 540 Nm
Accuracy +-
0.4 mm/m
Laser diode laser tip
500 - 540 Nm
