BOSCH

BOSCH UniversalLevel 2 cordless cross line laser red with plumb line function in case (2x AA battery) - 0603663F00

Variant

BOSCH UniversalLevel 2 cordless cross line laser red with plumb line function in case (2x AA battery) - 0603663F00 BOSCH UniversalLevel 2 cordless cross line laser red with plumb line function in case (2x AA battery) - 0603663F00 BOSCH UniversalLevel 2 Set cordless cross line laser red with plumb line function + tripod 1.2m in storage case (2x AA battery) - 0603663F01 BOSCH UniversalLevel 2 Set cordless cross line laser red with plumb line function + tripod 1.2m in storage case (2x AA battery) - 0603663F01
Recommended Retail Price €98.55
77.50 tax incl.
€64.05 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/09/2026
each

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

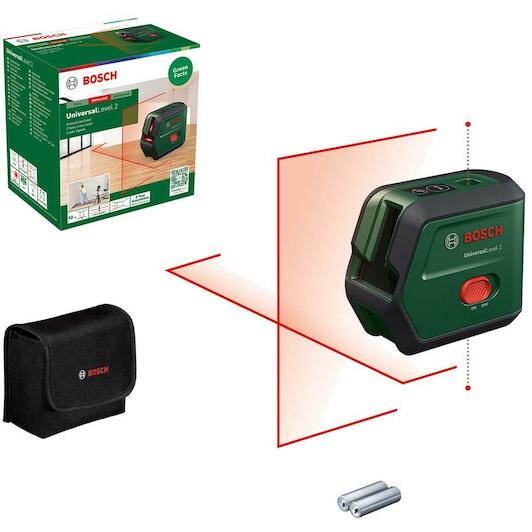

Scope of delivery

  • 2 x 1.5 V LR06 (AA) battery
  • Storage case

Product description

Brings your ideas precisely to the wall

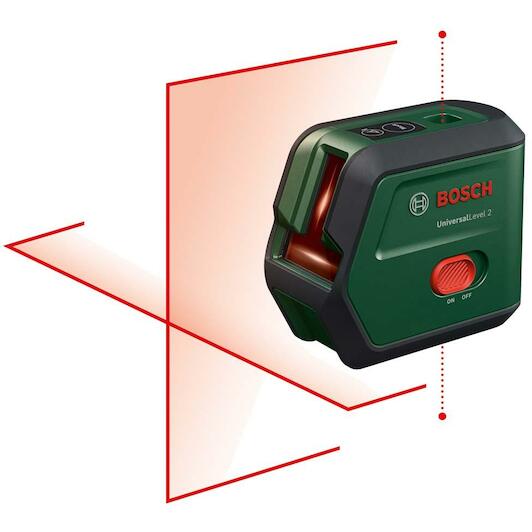

  • Precise projection of a laser cross with additional lead points above and below
  • Laser points and lines are automatically aligned and straight thanks to the self-levelling function
  • Slope function for outside work of self-levelling range with diagonal laser lines
  • High-quality, bright laser diodes with an accuracy of or ± 0.5 mm/m for precise results
  • Opening angle of 100° for long laser lines, even at short working distances
Key features according to our expert
  • Laser type: Cross line laser
  • Weight: 0,45 kg
  • Max. range: 12 m
  • With tripod: No
  • Tripod thread: 1/4"
  • Projection (laser beams): 1 horizontal, 1 vertical
  • Self-levelling range: 4,0000 °
  • Number of points: 2
  • Type of system case: Not applicable
  • Laser class: Class 2
  • Supplied in: Case
  • Accuracy: 0,5 mm/m
  • Colour (laser beams): Red
Specifications / All features
Laser type
Cross line laser
Weight
0,45 kg
Max. range
12 m
With tripod
No
Tripod thread
1/4"
Projection (laser beams)
1 horizontal, 1 vertical
Self-levelling range
4,0000 °
Number of points
2
Type of system case
Not applicable
Laser class
Class 2
Supplied in
Case
Accuracy
0,5 mm/m
Colour (laser beams)
Red
Opening angle
100 °
Laser diode, laser line of
630 Nm nm
Laser diode, laser line up to
640 Nm nm
Laser diode, laser tip of
650 Nm nm
Machine dimensions (length x width x height)
122 x 104 x 63 mm
Usage level
Universal
Laser diode, laser tip to
660 Nm nm
Accuracy**
± 0.5 mm/m
Battery type
1.5 V LR6 (AA)
Working range, approx.
12 m
Laser diode laser tip
650 - 660 nm
Electrical power supply
2 x 1.5 V LR6 (AA)
Working range laser line
12 m
Laser diode laser line
630 - 640 nm
Self-levelling time, typ.
4 s
Battery voltage
2 x 1.5 V LR6 (AA) V
Levelling range
± 4 °
