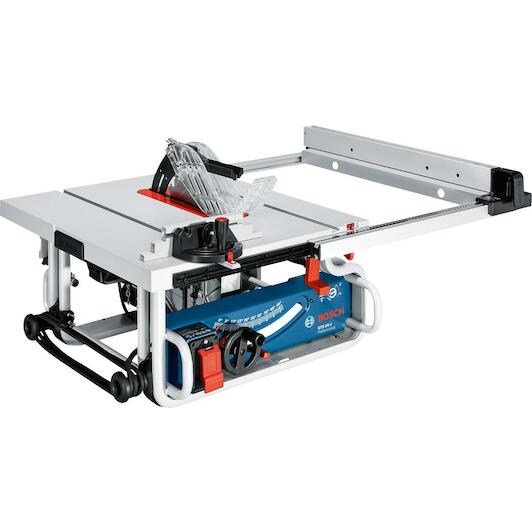

BOSCH GTS 10 J table saw 254 mm 1800 W - 0601B30500

This product has been discontinued.

Successor to this product

Scope of delivery

  • Angle stop (2 610 015 507)
  • Extraction adapter (2 610 015 509)
  • Parallel guide (2 610 016 853)
  • Push stick (2 610 015 022)
  • 1x circular saw blade, Optiline Wood, 254x 2.8/1.8x 30 mm (24 2 608 838 412)
  • Supplied in cardboard box

Product description

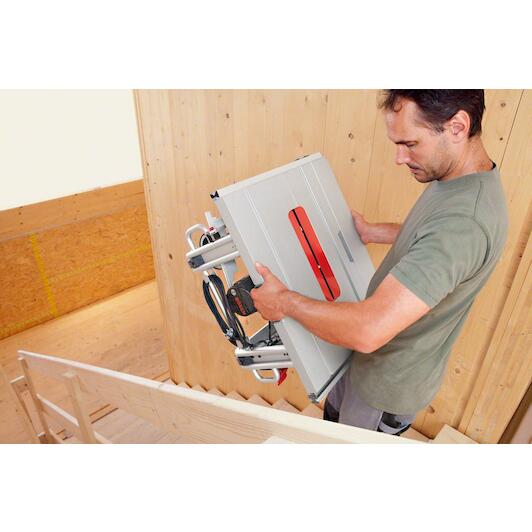

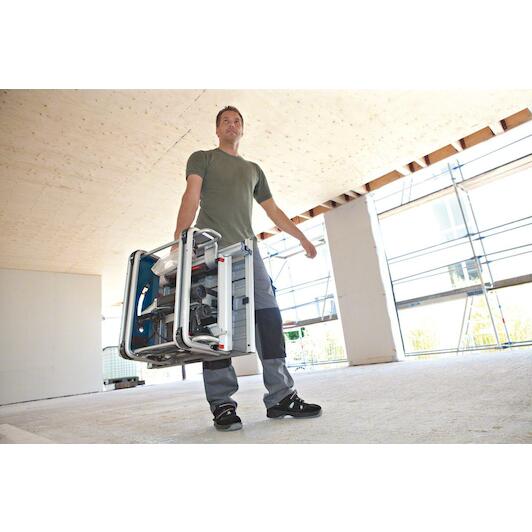

  • Compact design and multiple handle surfaces for easy and convenient transport
  • Powerful 1800 W motor ensures high processing speed
  • Tool-free insertable splitting knife allows quick adjustment for making hidden cuts

Key features

  • Easy accessory changes thanks to spindle lock
  • Two layers of insulation material around live parts or reinforced insulation. No ground connection required (earthing)
  • Click & Clean system - 3 major advantages: Clear view of the work surface: you work more accurately and faster - Harmful dust is immediately extracted: protects your health - Less dust: longer life of machine and accessories
  • Soft start-up while the load and torque of the motor are temporarily limited during start-up.
  • Dust extraction directly in the integrated dust bag on the machine and/or with universal hoover
Key features according to our expert
  • Power: 1800 W
  • Engine brake: Yes
  • Saw blade diameter: 254 mm
  • Weight: 27 kg
  • Max. cutting capacity (left): 255 mm
  • Max. cutting capacity (right): 635 mm
  • Adjustment (rip fence): Clamping lever on guide rail
  • With spindle lock: Yes
  • Variable speed: No
  • Constant speed control: No
  • Adjustable riving knife: Yes
  • Inrush current limiter: Yes
  • Max. no-load speed: 3650 rpm
  • Slide function: No
  • Max. cutting depth at 90°: 79 mm
  • Max. cutting depth at 45°: 56 mm
  • Max. cutting depth: 79 mm
  • With stand: No
  • Voltage: 230 V
  • Dust extraction position: Under the saw blade
Specifications / All features
Power
1800 W
Engine brake
Yes
Saw blade diameter
254 mm
Weight
27 kg
Max. cutting capacity (left)
255 mm
Max. cutting capacity (right)
635 mm
Adjustment (rip fence)
Clamping lever on guide rail
With spindle lock
Yes
Variable speed
No
Constant speed control
No
Adjustable riving knife
Yes
Inrush current limiter
Yes
Max. no-load speed
3650 rpm
Slide function
No
Max. cutting depth at 90°
79 mm
Max. cutting depth at 45°
56 mm
Max. cutting depth
79 mm
With stand
No
Voltage
230 V
Dust extraction position
Under the saw blade
Sound power level
105 dB(A)
Inclination setting r
1 °
Nominal power consumption
1800 W
Table size
642 x 634 mm
Saw blade bore diameter
30 mm
Inclination setting l
47 °
Machine dimensions (width x length x height)
705 x 640 x 325 mm
Uncertainty k
3 dB
Max. cutting capacity right
635 mm
Max. cutting capacity left
250 mm
Sound pressure level
92 dB(A)
No load speed
3650 o.p.m.
Cutting height 90°
79 mm
