BOSCH

BOSCH GRL 300 HVG rotation laser green + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061704

Variant

BOSCH GRL 300 HVG rotation laser green in case - 0601061700 BOSCH GRL 300 HVG rotation laser green in case - 0601061700 BOSCH GRL 300 HVG rotation laser green with laser receiver LR 1G in case - 0601061701 BOSCH GRL 300 HVG rotation laser green with laser receiver LR 1G in case - 0601061701 BOSCH GRL 300 HVG rotation laser green + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061704 BOSCH GRL 300 HVG rotation laser green + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061704 BOSCH GRL 300 HVG SET rotation laser green with tripod and measuring stick in case - 061599404B BOSCH GRL 300 HVG SET rotation laser green with tripod and measuring stick in case - 061599404B
Recommended Retail Price €1,143.93
903.10 tax incl.
€746.37 excl. VAT (incl. all environmental contributions)
On order: delivered from 31/08/2026
each

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

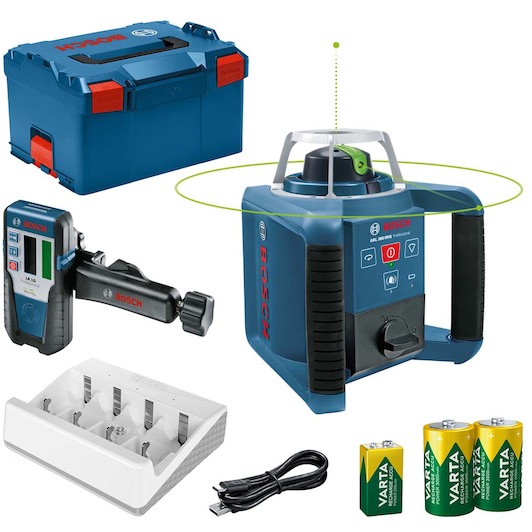

Scope of delivery

  • Laser receiver LR 1G Professional (order number: 0 601 069 700)
  • Holder (order number: 1 608 M00 70F)
  • L-BOXX 238 (order number: 1 600 A01 2G2)
  • 2 x 1.2 V HR20 (D) VARTA rechargeable battery
  • 1 x VARTA charger
  • 1 x 9V 7HR9V VARTA rechargeable battery

Product description

Excellent visibility for indoor applications

  • Green laser line: up to four times better visibility compared to a red line
  • Quickly deployable for horizontal and vertical applications due to automatic self-levelling of 8% (± 5°)
  • Switchable shock warning function prevents levelling errors in case of vibration or shocks

Functions and main features

  • Shock warning function triggers an alarm if tool is moved
  • Variable rotation speed: higher speed for working with receiver, lower speed for better visibility
  • Scanning mode for better visibility
  • Working range of up to 100m
Key features according to our expert
  • Laser type: Rotating laser
  • Weight: 1,8 kg
  • Max. range: 2x 50 m
  • With tripod: No
  • Tripod thread: 5/8"
  • Projection (laser beams): circle horizontal or vertical
  • Self-levelling range: 5,0000 °
  • Number of points: 1
  • Type of system case: L-BOXX
  • Laser class: Class 3R
  • Max. range with receiver: 2x 150 m
  • Supplied in: System case
  • Accuracy: 0,1 mm/m
  • Colour (laser beams): Green
  • Protection class IP: IP54
Specifications / All features
Laser type
Rotating laser
Weight
1,8 kg
Max. range
2x 50 m
With tripod
No
Tripod thread
5/8"
Projection (laser beams)
circle horizontal or vertical
Self-levelling range
5,0000 °
Number of points
1
Type of system case
L-BOXX
Laser class
Class 3R
Max. range with receiver
2x 150 m
Supplied in
System case
Accuracy
0,1 mm/m
Colour (laser beams)
Green
Protection class ip
IP54
Operating range with receiver up to (diameter)
300 m
Laser diode
532 Nm
Operating range without receiver up to (diameter)
100 m
Electrical power supply 2x
1,5 V
Levelling accuracy +-(*plus usage-dependent deviation)
3 mm
Leveling time
15 s
Colour laser line
Green Compatible laser receivers
Dust and splash water protection
IP 54
Self-levelling range +-
5 °
Rotation speed
150, 300, 600 min-1
