BOSCH

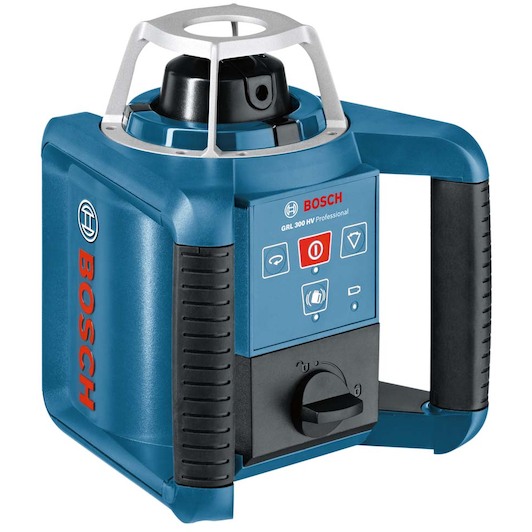

BOSCH GRL 300 HV rotation laser red + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061505

Variant

BOSCH GRL 300 HV rotation laser red + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061505 BOSCH GRL 300 HV rotation laser red + laser receiver in L-BOXX 238 (2x 1.2V 9Ah D-battery) - 0601061505 BOSCH GRL 300 HV SET rotation laser red with accessory set in case (1x 9V block battery) + laser receiver LR 1 + BT 170 HD construction tripod - 061599405U BOSCH GRL 300 HV SET rotation laser red with accessory set in case (1x 9V block battery) + laser receiver LR 1 + BT 170 HD construction tripod - 061599405U BOSCH GRL 300 HV rotation laser red with GR 240 measuring rod and BT 300 HD tripod in case - 061599403Y BOSCH GRL 300 HV rotation laser red with GR 240 measuring rod and BT 300 HD tripod in case - 061599403Y
Recommended Retail Price €1,038.66
794.90 tax incl.
€656.94 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/09/2026
each

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

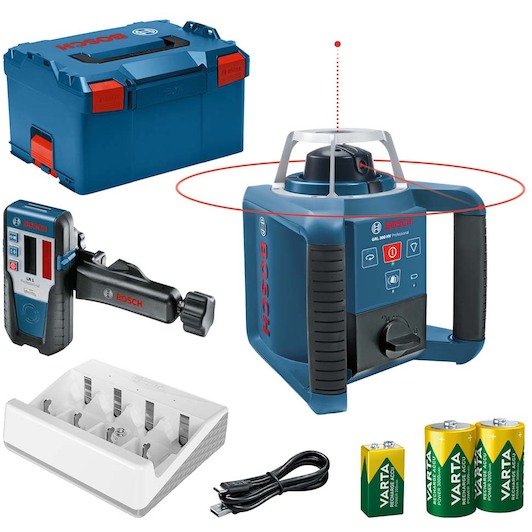

Scope of delivery

  • Laser receiver LR 1 Professional (order number: 0 601 015 400)
  • L-BOXX 238 (order number: 1 600 A01 2G2)
  • 2 x 1.2 V HR20 (D) VARTA rechargeable battery
  • 1 x VARTA charger
  • 1 x 9V 7HR9V VARTA rechargeable battery

Product description

Simple operation with horizontal and vertical self-levelling

  • Easy to operate thanks to one button per function and self-explanatory display
  • Quickly deployable for horizontal and vertical applications due to automatic self-levelling of 8% (± 5°)
  • Switchable shock-warning function prevents levelling errors due to vibrations and shocks

Functions and main features

  • Shock warning function triggers an alarm when tools are moved
  • Variable rotation speed: higher speed for working with receiver, lower speed for better visibility
  • Scanning mode for better visibility
  • IP54 dust and splash water protection
Key features according to our expert
  • Laser type: Rotating laser
  • Weight: 1,8 kg
  • Max. range: 2x 30 m
  • With tripod: No
  • Tripod thread: 5/8"

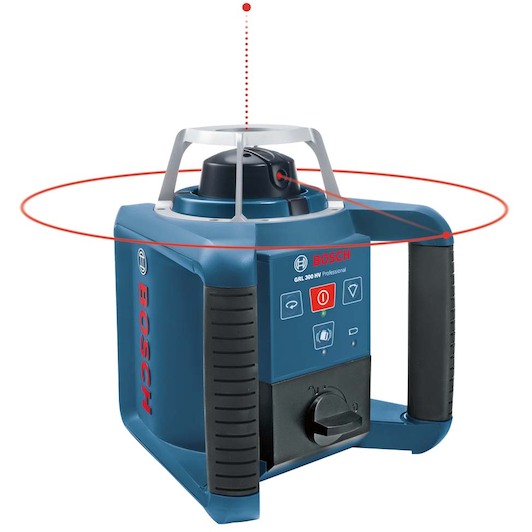

  • Projection (laser beams): circle horizontal or vertical
  • Self-levelling range: 5,0000 °
  • Number of points: 1
  • Type of system case: L-BOXX
  • Laser class: Class 3R
  • Max. range with receiver: 2x 150 m
  • Supplied in: System case
  • Accuracy: 0,1 mm/m
  • Colour (laser beams): Red
  • Protection class IP: IP54
Specifications / All features
Laser type
Rotating laser
Weight
1,8 kg
Max. range
2x 30 m
With tripod
No
Tripod thread
5/8"
Projection (laser beams)
circle horizontal or vertical
Self-levelling range
5,0000 °
Number of points
1
Type of system case
L-BOXX
Laser class
Class 3R
Max. range with receiver
2x 150 m
Supplied in
System case
Accuracy
0,1 mm/m
Colour (laser beams)
Red
Protection class ip
IP54
Operating range with receiver up to (diameter)
300 m
Laser diode
635 Nm
Operating range without receiver up to (diameter)
60 m
Electrical power supply 2x
1,5 V
Levelling accuracy +-(*plus usage-dependent deviation)
3 mm
Leveling time
15 s
Colour laser line
Red
Dust and splash water protection
IP 54
Self-levelling range +-
5 °
Rotation speed
150, 300, 600 min-1
