BOSCH

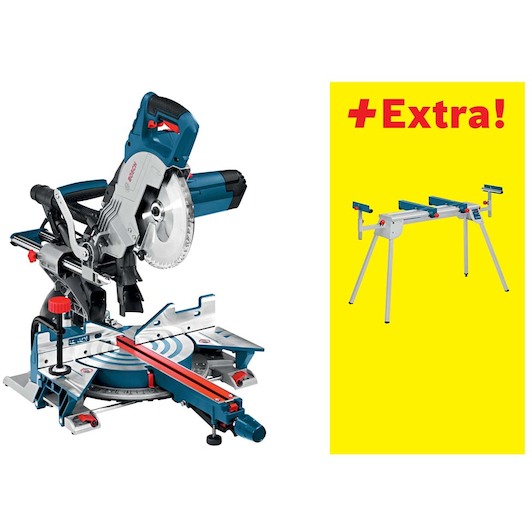

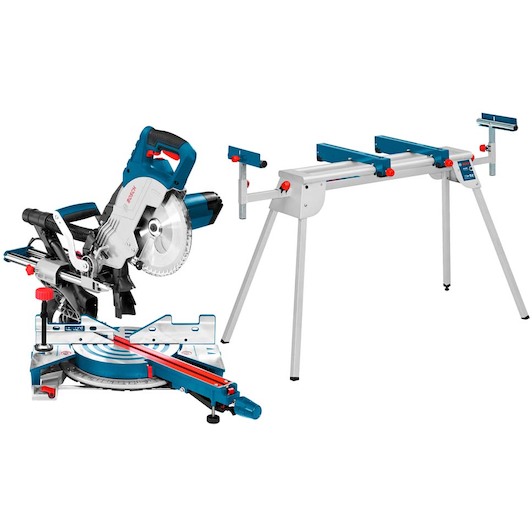

BOSCH GCM 8 SJL crosscut saw 216 mm 1600 W + GTA 2600 worktable - 0615990FV8

This product has been discontinued.

Is this mitre saw right for you?

Answer a few questions and see if this mitre saw is a perfect match for you.

Scope of delivery

  • Mitre saw GCM 8 SJL Professional - 0 601 B19 100
  • Worktable GTA 2600 Professional - 0 601 B12 300
  • Clamp
  • Circular saw blade 216 x 30 mm
  • Supplied in cardboard box

Product description

  • Cutting capacity of 70 mm vertically and 312 mm horizontally for cutting large workpieces
  • Dust extraction system at 2 points ensures optimised dust management
  • Light and compact design and one-handed transport handle ensure easy transportation

Key features

  • Click & Clean system - 3 major advantages: Clear view of the work surface: you work more accurately and faster - Harmful dust is extracted immediately: protects your health - Less dust: longer life of machine and accessories
  • Easy change of accessories thanks to spindle lock
  • Soft start-up while the load and torque of the motor are temporarily limited during start-up
  • Dust extraction directly in the integrated dust bag on the machine and/or with universal hoover
Key features according to our expert
  • Power: 1600 W
  • Cut line indicator: Laser
  • Saw blade diameter: 216 mm
  • Dust extraction position: Behind the saw blade and behind the workpiece
  • Max. width (workpiece): 312 mm
  • Max. height (workpiece): 70 mm
  • Cable length: 2,5 m
  • Adapter required for 35 mm vacuum cleaner hose: No
  • Tiltable left/right: Left only
  • With stand: Yes
  • Slide function: Yes
  • Bore size: 30 mm
  • Weight: 17,3 kg
  • Engine brake: No
Specifications / All features
Power
1600 W
Cut line indicator
Laser
Saw blade diameter
216 mm
Dust extraction position
Behind the saw blade and behind the workpiece
Max. width (workpiece)
312 mm
Max. height (workpiece)
70 mm
Cable length
2,5 m
Adapter required for 35 mm vacuum cleaner hose
No
Tiltable left/right
Left only
With stand
Yes
Slide function
Yes
Bore size
30 mm
Weight
17,3 kg
Engine brake
No
Machine dimensions (width x length x height)
910 x460 x630 mm
Miter setting r
60 °
Inclination setting l
47 °
Sawing capacity 45° mitre
70 x 214 mm
Mains voltage
230 V
Saw blade bore diameter
30 mm
Uncertainty k 2
3 dB
Nominal power consumption
1600 W
Packaging dimensions (width x length x height)
480 x 845 x 440 mm
Inclination setting r
2 °
Cutting capacity 45° inclination
48 x 312 mm
Uncertainty k
1.5 m/s²
Miter setting l
52 °
Overall vibration values (cutting wood)
2.5 m/s²
Sound power level
112 dB(A)
Cutting capacity 0°
70 x 312 mm
Sound pressure level
99 dB(A)
No load speed
5500 min-1
