What is the maximum range of the BOSCH GCL 25 combi laser?

The combi laser has a maximum range of 10 meters for the laser lines. The laser points have a maximum range of 30 meters horizontally, 5 meters downwards, and 10 meters upwards.

What types of laser projections does the BOSCH GCL 25 offer?

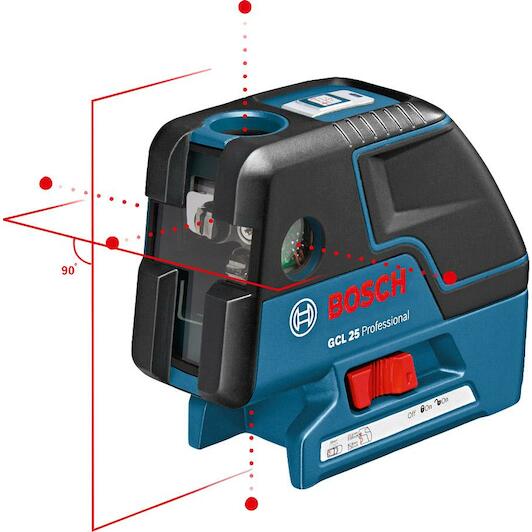

The BOSCH GCL 25 projects 1 horizontal and 1 vertical laser beam, and 5 laser points. This makes it a cross-line laser and point laser in one.

What is the accuracy of the BOSCH GCL 25 combi laser?

The accuracy of the laser lines and horizontal points is ± 0.3 mm/m. The vertical points have an accuracy of ± 0.5 mm/m.

Is the BOSCH GCL 25 combi laser self-levelling?

Yes, the combi laser has a self-levelling range of ± 4°. The levelling time is approximately 4 seconds.

What protection does the BOSCH GCL 25 offer against dust and splashing water?

The BOSCH GCL 25 has an IP54 protection class, meaning it is protected against dust and splashing water.

BOSCH GCL 25 combi laser red in storage case (4x 1.5V AA battery) - 0601066B00

Name: BOSCH GCL 25 combi laser red in storage case (4x 1.5V AA battery) - 0601066B00
Brand: BOSCH
SKU: 02289049
Price: 412.16 EUR
Availability: PreOrder

Supplier number: BOSCH 0601066B00 | EAN 3165140622356

Variant

This product has been discontinued.

✆ Talk to a specialist

Accurate and versatile with the Bosch GCL 25

Practical benefits

Multiple measurement options: The Bosch GCL 25 combilaser projects one horizontal and one vertical line, and five points, for versatile alignment and leveling tasks.
Durable and robust design: With an IP54 protection class, this combilaser is dust and splash-proof, making it suitable for demanding working conditions.
Fast and easy leveling: The self-leveling range of ± 4° and a leveling time of 4 seconds ensure quick and accurate setup.

In a nutshell

The right choise for

With the Bosch gcl 25 combilaser, you accurately project one horizontal and one vertical line, and five points, ideal for all your alignment and leveling tasks. The laser has a range of 10 meters for lines and up to 30 meters for points. Thanks to its IP54 protection class, this combilaser is dust and splash-proof, making it suitable for demanding working conditions. The self-leveling range of ± 4° and a leveling time of 4 seconds ensure quick and accurate setup. You receive the combilaser in a storage case, including 4x 1.5V aa batteries, an L-BOXX-inlay, and a laser target plate.

Product information FAQ

Key features according to our expert

Laser type: Cross line laser; Dot laser
Weight: 0,6 kg
Max. range: 10 m
With tripod: No
Tripod thread: 1/4"; 5/8"
Self-levelling range: 4,0000 °
Number of points: 5
Projection (laser beams): 1 horizontal, 1 vertical
Type of system case: Not applicable
IP rating: IP54
Laser class: Class 2
Accuracy: 0,2 mm/m
Colour (laser beams): Red
Supplied in: Case

Scope of delivery

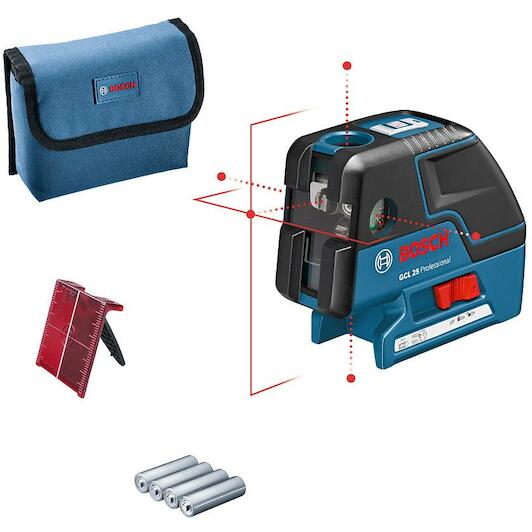

4x battery 1.5V LR6 (AA), L-BOXX inlay machine, laser target plate and storage case

Product description

Line and spot laser GCL 25 (4x battery 1.5V LR6 (AA), L-BOXX inlay machine, laser target plate and storage case)
Extremely versatile: cross line laser and 5-point laser in one
Easy operability thanks to intuitive user interface
Compact and ergonomic design

Advantages

The simple solution for all levelling and transfer tasks over short distances

All Features

Laser type: Cross line laser; Dot laser
Weight: 0,6 kg
Max. range: 10 m
With tripod: No
Tripod thread: 1/4"; 5/8"
Self-levelling range: 4,0000 °
Number of points: 5
Projection (laser beams): 1 horizontal, 1 vertical
Type of system case: Not applicable
Ip rating: IP54
Laser class: Class 2
Accuracy: 0,2 mm/m
Colour (laser beams): Red
Supplied in: Case
Projection: 2 lines / 5 points
Levelling accuracy vertical laser lines+-: 0.3 mm/m
Leveling time: 4 s
Operating time, max. in line and point mode: 12 h
Levelling accuracy laser lines and horizontal point beams+-: 0.3 mm/m
Electrical power supply (4xaa): 1,5 V
Levelling accuracy vertical point radii+-: 0.5 mm/m
Working range laser points, max (bottom): 5 m
Colour of lead points: red
Levelling accuracy horizontal laser line+-: 0.2 mm/m
Lead point accuracy (plus usage-dependent deviation) +-: 0.7 mm/m
Operating time, max. in 5-point mode: 24 h
Colour laser line: red
Working range laser points, max (above): 10 m
Working range laser points, max (horizontal): 30 m
Working range: 10 m
Dust and splash water protection: IP 54
Operating time, max. in line mode: 30 h

Brand BOSCH
02289049
EAN 3165140622356
Supplier number BOSCH 0601066B00
Warranty Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!

Frequently asked questions about this product

Answered by specialists

What is the maximum range of the BOSCH GCL 25 combi laser?: The combi laser has a maximum range of 10 meters for the laser lines. The laser points have a maximum range of 30 meters horizontally, 5 meters downwards, and 10 meters upwards.
What types of laser projections does the BOSCH GCL 25 offer?: The BOSCH GCL 25 projects 1 horizontal and 1 vertical laser beam, and 5 laser points. This makes it a cross-line laser and point laser in one.
What is the accuracy of the BOSCH GCL 25 combi laser?: The accuracy of the laser lines and horizontal points is ± 0.3 mm/m. The vertical points have an accuracy of ± 0.5 mm/m.
Is the BOSCH GCL 25 combi laser self-levelling?: Yes, the combi laser has a self-levelling range of ± 4°. The levelling time is approximately 4 seconds.
What protection does the BOSCH GCL 25 offer against dust and splashing water?: The BOSCH GCL 25 has an IP54 protection class, meaning it is protected against dust and splashing water.
