Scope of delivery

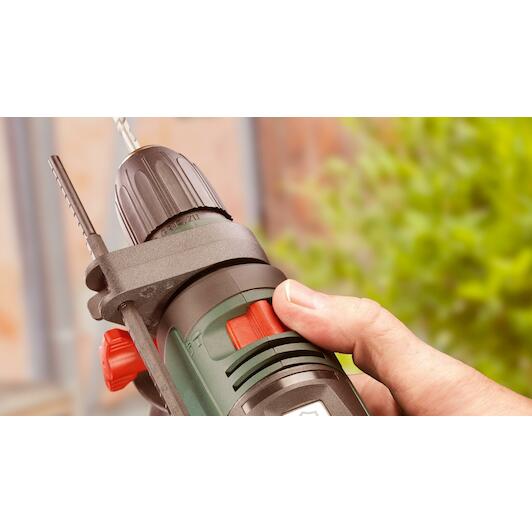

- Depth stop and additional handle
Product description

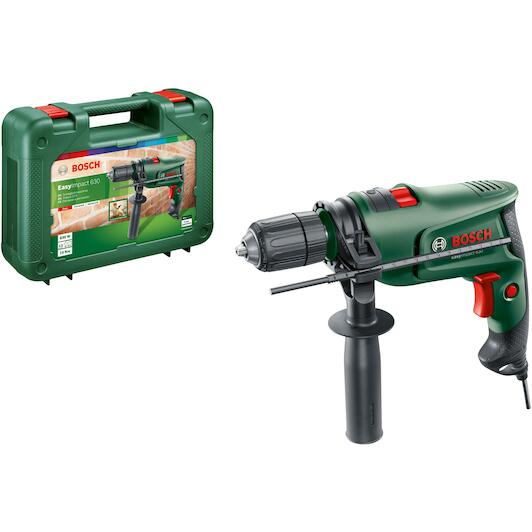

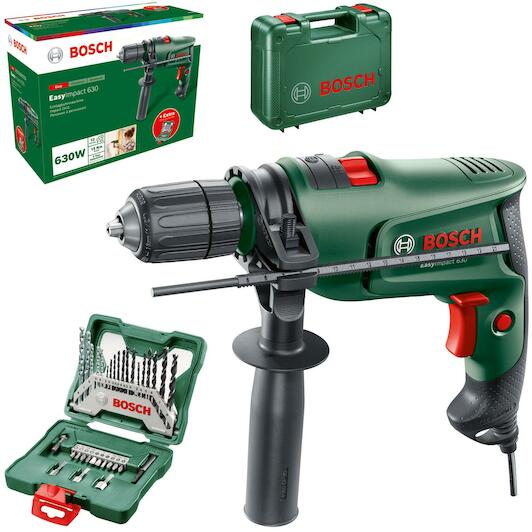

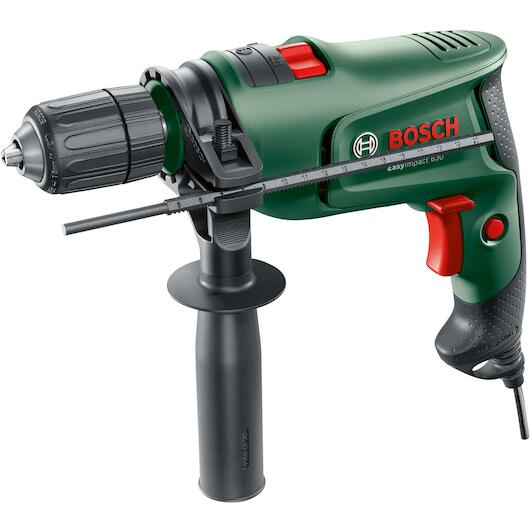

- Impact drill EasyImpact 630 (depth stop and additional handle)

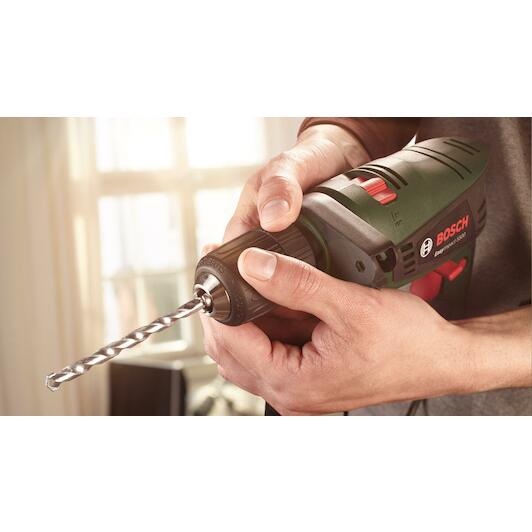

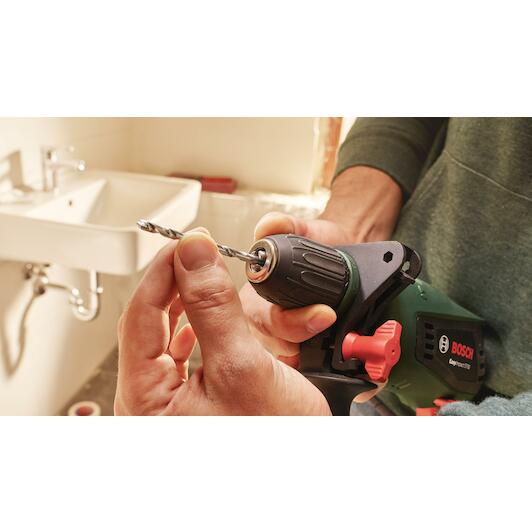

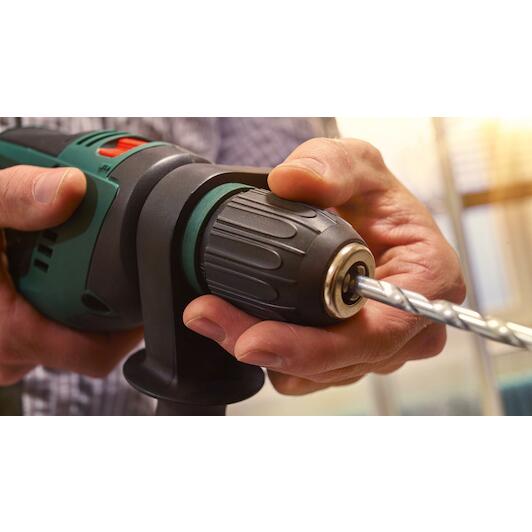

- Quick-action chuck with double sleeve for fast and easy bit changes
- Compact, lightweight and ergonomic for comfortable use
- Bosch Electronic Speed Control for easy speed control during drilling
Advantages
- Bosch's impact drill EasyImpact 630 offers strong drilling power and is ideal for simple drilling tasks.
- Its light weight and compact, ergonomic design make it easy to handle.
- The impact drill is suitable for all materials, even concrete.
Key features according to our expert
-
Input power: 630 W
-
Max. clamping capacity: 13 mm
-
Max. drilling diameter (masonry): 13 mm
-
Max. drilling diameter (wood): 25 mm
-
Max. drilling diameter (steel): 10 mm
-
Supplied in: Case
-
Type of system case: Not applicable
-
Weight: 1,7 kg
-
Min. clamping capacity: 2 mm
Specifications / All features
- Input power
- 630 W
- Max. clamping capacity
- 13 mm
- Max. drilling diameter (masonry)
- 13 mm
- Max. drilling diameter (wood)
- 25 mm
- Max. drilling diameter (steel)
- 10 mm
- Supplied in
- Case
- Type of system case
- Not applicable
- Weight
- 1,7 kg
- Min. clamping capacity
- 2 mm
- Uncertainty k (impact drilling in concrete)
- 2 m/s²
- Max. drill diameter in wood
- 25 mm
- Uncertainty k
- 3 dB
- Tool dimensions (l x w x h)
- 386 x 291 x 110 mm
- Max. drill diameter in steel
- 10 mm
- Vibration emission value ah (screws)
- 2.5 m/s²
- Sound pressure level
- 97 dB(A)
- Sound power level
- 108 dB(A)
- Power output, max.
- 370 W
- Vibration emission value ah (impact drilling in concrete)
- 28 m/s²
- Uncertainty k (drilling in metal)
- 1.5 m/s²
- No load speed
- 0 - 3000 min-1
- Uncertainty k (screws)
- 1.5 m/s²
- No-load torque in accordance with en 60745
- 15 Nm
- Vibration emission value ah (drilling in metal)
- 6.5 m/s²
- Rated torque
- 1.5 Nm
- Number of strokes
- 48000 min-1
- Power consumption
- 630 W
- Drill diameter in masonry
- 13 mm
