Product description

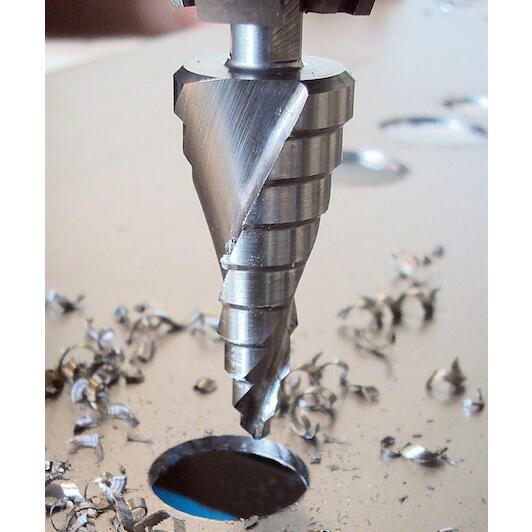

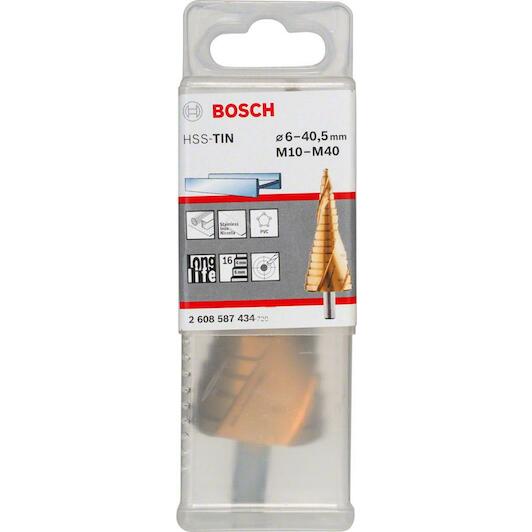

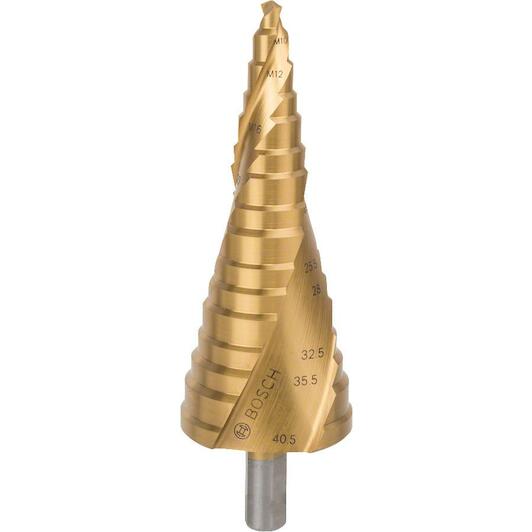

- Step drill bit HSS-TiN 10-40, 10 x 125.5 mm
- Smooth drilling of various diameters with one drill bit
- HSS-TiN step drills can produce smooth holes of various diameters with a single drill bit
- Pre-punching is unnecessary as the split tip enables easy drilling
Advantages
- Drilling various diameters - The HSS step drill bit can drill smooth, burr-free holes of various diameters with a single drill bit.
- The drill bit is ideal for deburring, drilling round holes and enlarging existing holes.
- Pre-punching is unnecessary as the split tip allows easy drilling.
- The CNC ground spiral groove offers optimised chip removal and reduced vibration for uniform drilling.
- Axial and radial back grinding ensure excellent cutting performance and absolute smoothness.
- This step drill is suitable for use on thin materials, such as non-ferrous metals, sheet plastic, sheet steel, plastic and stainless steel.
- The step drill is made of HSS (High-Speed Steel) and coated with TiN (titanium nitride).
- This ensures an exceptionally long service life when coolant is used.
- Using laser, the hole diameters in both spiral grooves are clearly visible and durably marked.
- In addition, the 3-surface shank prevents slipping in the chuck and ensures high torque transfer.
- 3-surface shank for drills.
Key features according to our expert
-
Smallest diameter: 10 mm
-
Largest diameter: 40 mm
-
Shank size: 10 mm
Specifications / All features
-
Brand:
BOSCH
-
02790255
-
EAN:
3165140630283
-
Supplier number:
BOSCH 2608587434
- Smallest diameter
- 10 mm
- Largest diameter
- 40 mm
- Shank size
- 10 mm
- Implementation
- HSS-TiN
- Overall length mm
- 125,5
- Shaft diameter mm
- 10
- Stair height mm
- 6/4
- Stair diameter (range) mm
- M10-M40
