Product description

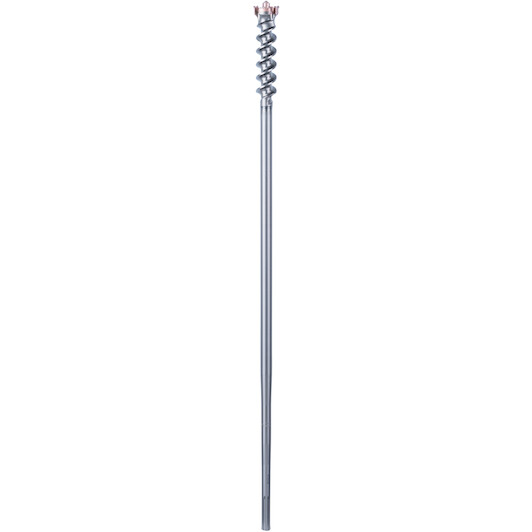

- Through drill bit SDS-Max-9, Break Through 45 x 850 x 1000 mm
- Standard drill bit for drilling large and deep holes in concrete
- Drill bit SDS max-9 Break Through is used as standard when drilling large and deep holes in concrete

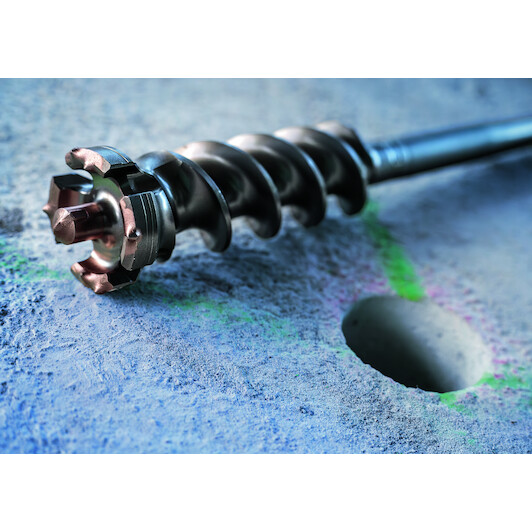

- Vacuum brazed and carbide tip with 3 cutters to break through large pieces of material
Advantages
- Deep holes in concrete - The SDS max-9 Break Through drill bit is used as standard when drilling large and deep holes in concrete.
- The fine-grained, carbide tip with 3 cutters is vacuum brazed and hardened for fast results and good removal of large pieces of grit.
- The drill bit's long, tapered shank allows piercing, while the U-shaped design with 2 spirals removes drilling dust well.

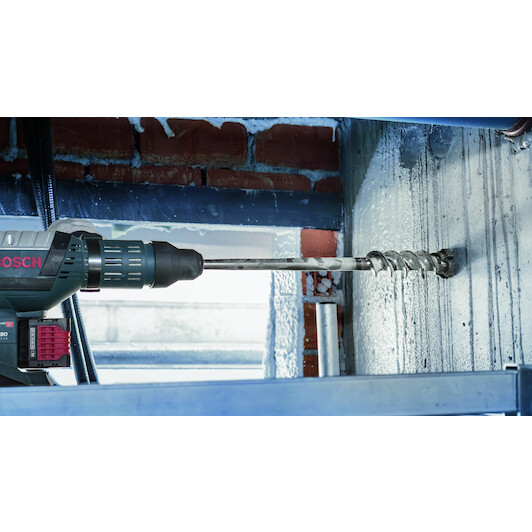

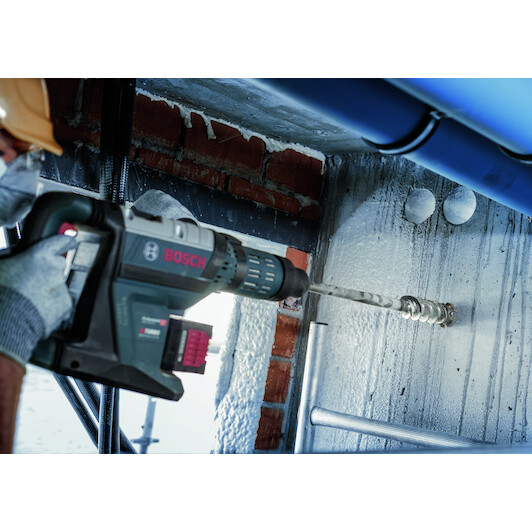

- The drill bit is suitable for piercing with a diameter of 45 to 80 mm in concrete, masonry and limestone for e.g. pulling cables and pipes outside.
- The drill bit is intended for use on rotary hammers.
- Note: When drilling through, always use a drill hammer with sufficient power to prevent overloading.
- Read the operating instructions first.

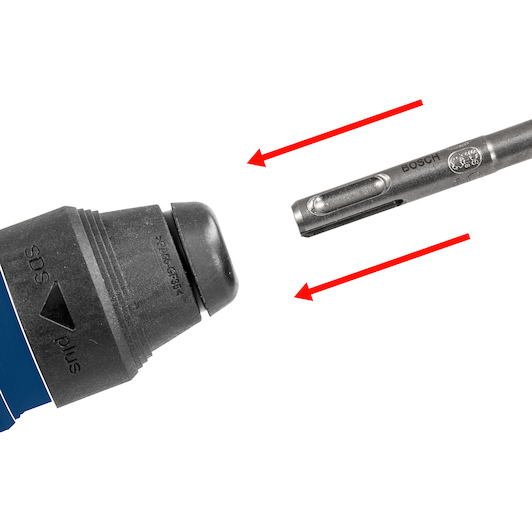

- Fits all SDS max rotary hammers.
Key features according to our expert
-
Diameter: 45 mm
-
Drill bit type: Hammer drill bit - Breakthrough drill bit
-
Overall length: 1000 mm
-
Shank type: SDS-max
-
Material (drill bit): Carbide tip
-
Number of cutting edges: 3 ea
-
Cutting length: 850 mm
Specifications / All features
-
Brand:
BOSCH
-
01049527
-
EAN:
3165140021968
-
Supplier number:
BOSCH 1618596456
- Diameter
- 45 mm
- Drill bit type
- Hammer drill bit - Breakthrough drill bit
- Overall length
- 1000 mm
- Shank type
- SDS-max
- Material (drill bit)
- Carbide tip
- Number of cutting edges
- 3 ea
- Cutting length
- 850 mm

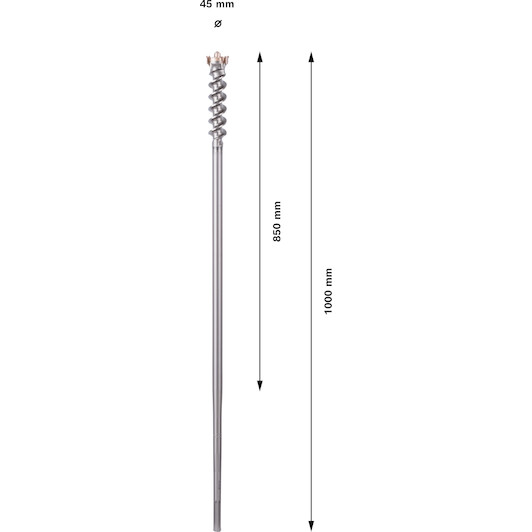

- Diameter (d) mm
- 45
- Overall length (l2) mm
- 1000
- Useful length (l1) mm
- 850
