Product description:
- Clamping force up to 11,000 N at a torque of 40 Nm
- Special heat-resistant pressure plate, rotatable up to 35°
Supplier number:
BESSEY GSM50
|
EAN
4008158035413
Recommended Retail Price
€143.17
96.20
tax incl.
€79.50 excl. VAT (incl. all environmental contributions)

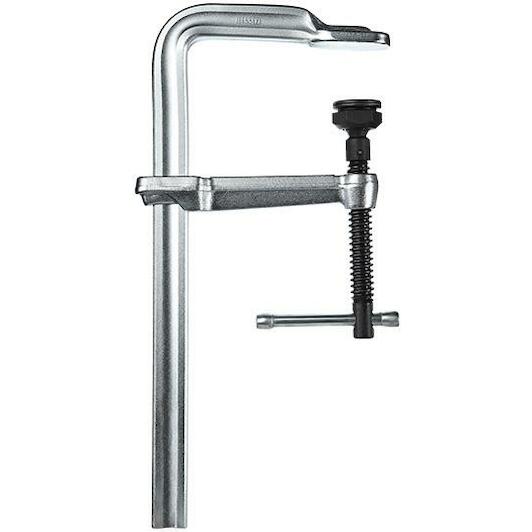

Heavy duty clamping by Bessey
Practical benefits- High clamping force of 11000N: You secure demanding metal or timber parts firmly with a robust clamping force of up to 11000 N.
- Wide span for fabrication: Benefit from a 500 mm clamping capacity and 140 mm throat depth to effortlessly hold large structures.
- Reliable tommy bar handle: The sliding tommy bar handle gives you excellent leverage to apply maximum pressure smoothly and safely.
In a nutshell

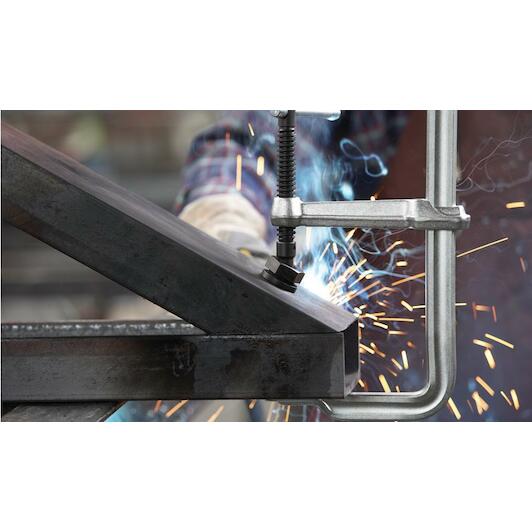

The right choise forWith the Bessey GSM50 heavy-duty clamp, you securely lock heavy steel profiles and thick workpieces during welding and fabrication work. Built entirely from durable steel, it delivers a powerful clamping force of up to 11000 n at a tightening torque of 40 Nm, preventing shifting or flexing under load. Its generous 500 mm clamping capacity and 140 mm throat depth allow you to fixture large structural beams easily across your welding table. The solid steel sliding T-bar handle gives you smooth leverage for controlled pressure application. Furthermore, the heat-resistant pressure pad tilts up to 35 degrees to accommodate angled workpieces, ensuring dependable stability and precision throughout demanding jobs.
Product information
Key features according to our expert
- Max. clamping height: 500 mm
- Depth: 140 mm
- Type of chuck: F
- Clamping tool handle type: Clampign lever
- Clamping force: 11000 N
- Weight: 3,4 kg
- Product Range: Bessey ClassiX GS
All Features
- Max. clamping height
- 500 mm
- Depth
- 140 mm
- Type of chuck
- F
- Clamping tool handle type
- Clampign lever
- Clamping force
- 11000 N
- Weight
- 3,4 kg
- Product range
- Bessey ClassiX GS
- Brand BESSEY
- EAN 4008158035413
- Supplier number BESSEY GSM50
Frequently asked questions about this product
Answered by specialists
- What is the maximum clamping force of this clamp?
- The Bessey GSM50 delivers a clamping force of up to 11000 N with a tightening torque of 40 Nm.
- What are the clamping capacity and throat depth?
- This heavy-duty clamp features an opening capacity of 500 mm and a throat depth of 140 mm.
- What type of handle is fitted on this clamp?
- It is equipped with a steel sliding T-bar handle for powerful and controlled clamping.
- Can the pressure pad tilt on angled workpieces?
- Yes, the heat-resistant pressure pad tilts up to 35° to adapt securely to the workpiece.
- How much does this clamp weigh?
- This all-steel clamp weighs 3,4 kg.
