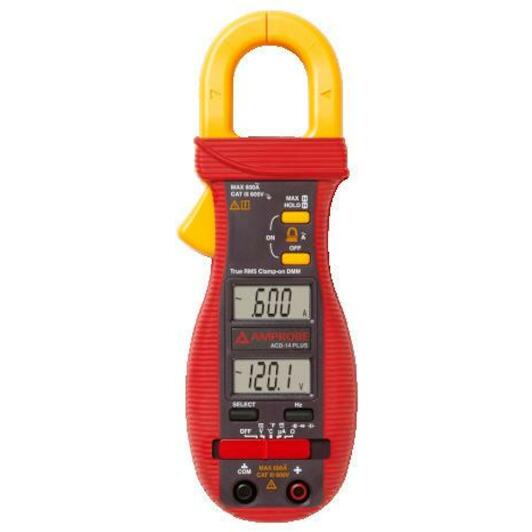

BEHA-AMPROBE ACD-14 PLUS AC current clamp with dual display 600 A, resistance, jaw 25 mm - 3086905

Scope of delivery:

• ACD-14 PLUS
• Test leads
• Battery (installed)
• Soft carrying pouch
• Type-K thermocouple with banana plug

Product Description:

• The ACD-14 PLUS clamp meter works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple.
• The dual displays show amps and volts simultaneously, useful for measuring voltage drop under load.
• The thinner jaws of this digital clamp multimeter enable access to tight measurement areas and still handles conductors up to 1" (25 mm).
• Dual displays permit simultaneous reading of amps and volts
• Measures AC Current to 600A and AC/DC Voltage to 600 V
• Measures frequency, capacitance to 3000 µF, and resistance to 40 MOhm
• Measures temperature with K-type thermocouple probe
• Includes micro amps measurement for testing flame sensors
• Diode test quickly finds voltage drops
• Continuity beeper detects opens and shorts
• Auto ranging instantly selects correct range
• Hold and maximum reading functions
• New thin jaws, 5 mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
• Accommodates conductors up to 1.0" (25 mm) in diameter
• Auto power off and low battery indication helps you make the most of battery life
• Rubber, over-molded case absorbs shock
