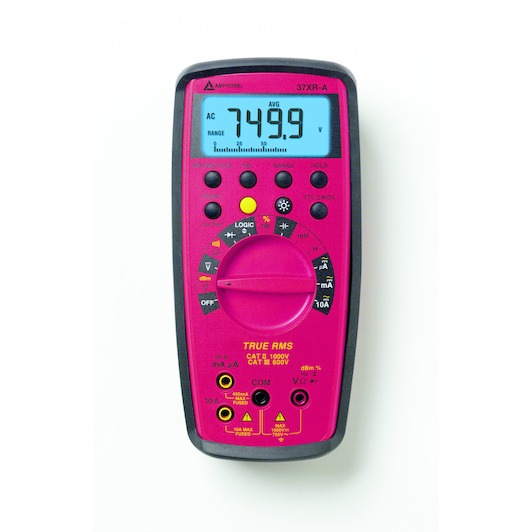

BEHA-AMPROBE 37XR-A professional digital multimeter TRMS with component logic test - 2727808

Name: BEHA-AMPROBE 37XR-A professional digital multimeter TRMS with component logic test - 2727808
Brand: BEHA-AMPROBE
SKU: 02910898
Price: 288.62 EUR
Availability: PreOrder

Supplier number: BEHA-AMPROBE 2727808 | EAN 0095969365390

Recommended Retail Price €377.65

288.62 tax incl.

€238.53 excl. VAT (incl. all environmental contributions)

On order: delivered from 16/10/2026

Ordered before 20:00 - delivered as of 16/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Reliable diagnostics with Beha-amprobe

Practical benefits

Accurate True RMS testing: You obtain precise readings on distorted waveforms with support for up to 750 V AC, 1000 V DC, and 10 A current.
Advanced logic and components: You can easily troubleshoot TTL and CMOS digital circuits while measuring components with capacitance up to 400 µF and resistance to 40 MOhm.
Safe and handsfree operation: The included Magne-Grip magnetic holster keeps your hands free on the job, while an audible warning alerts you if test leads are misconnected.

In a nutshell

The right choise for

With the Beha-amprobe 37XR-A digital multimeter, you troubleshoot electrical panels, industrial machinery, and electronic circuits with complete confidence. True rms testing delivers dependable accuracy for ac voltage up to 750V and DC voltage up to 1000V, even on distorted waveforms. You can easily diagnose digital ttl and cmos logic circuits while measuring components with capacitance up to 400 µF and resistance up to 40 MOHM. The included Magne-Grip holster with magnetic hanging strap lets you work hands-free in metal enclosures, while an audible warning alerts you to misconnected test leads. Complete with test leads, alligator clips, spare fuse, and 9V battery, you are ready to tackle every diagnostic job.

Product information FAQ

€288.62

tax incl.

Key features according to our expert

Max. voltage AC/DC: 1000 V
Measurement temperature: No
Digital: Yes
Battery size: 9V
Low battery message: Yes
Automatic shut-off: Yes
With current clamp: No
Diode test: Yes
Continuity test: Yes
Max. current AC/DC: 10 A
Measurement Lo-Z: No
Measurement of noise: No
Measurement of electrical capacity: Yes
Measurement frequency: Yes
Measurement resistance: Yes
Current measurement: Yes
Measurement voltage: Yes
Max. electrical capacity: 400 µF
Max. frequency: 10000 kHz
Max. resistance: 40 MOhm

Scope of delivery

37XR-A multimeter
Test leads with threaded alligator clips
9 V battery (installed)
Magne-Grip Holster with magnetic hanging strap
Spare fuse

Product Description

The Amprobe 37XR-A Digital Multimeter offers True-rms measurement along with component and logic testing for troubleshooting electronics at the bench or on the job site.
Backlight, True-rms with component and logic test
Inductance to 40 H, frequency to 40 MHz, capacitance to 400 µF, logic to 20 MHz
Input warning tone when test leads are in wrong jack
10 Amps AC/DC, fully safety fused
Continuity beeper
Min/max, average, relative, peak, and data hold
Auto power off to save battery life
Separate door for easy battery and fuse access
Magne-Grip Holster with magnetic hanging strap
Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph
Display Update Rate: 2/sec, nominal
Power Battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
Operating temperature: 0 °C to 45 °C at < 70 % R.H

All Features

Max. voltage ac/dc: 1000 V
Measurement temperature: No
Digital: Yes
Battery size: 9V
Low battery message: Yes
Automatic shut-off: Yes
With current clamp: No
Diode test: Yes
Continuity test: Yes
Max. current ac/dc: 10 A
Measurement lo-z: No
Measurement of noise: No
Measurement of electrical capacity: Yes
Measurement frequency: Yes
Measurement resistance: Yes
Current measurement: Yes
Measurement voltage: Yes
Max. electrical capacity: 400 µF
Max. frequency: 10000 kHz
Max. resistance: 40 MOhm

Brand BEHA-AMPROBE
02910898
EAN 0095969365390
Supplier number BEHA-AMPROBE 2727808

Frequently asked questions about this product

Answered by specialists

What are the primary measurement functions of the Beha-Amprobe 37XR-A?: It measures TRMS AC/DC voltage up to 1000V, current up to 10A, resistance up to 40 MO hm, capacitance up to 400 µF, frequency, inductance, and logic signals.
Can this instrument perform component and logic testing?: Yes, this model is designed for testing electronic components, diodes, continuity, and logic circuits.
What safety rating does this digital multimeter have?: The meter is rated for CAT III 600V and CAT II 1000V safety standards for secure electrical testing.
What power source is required for operation?: It operates on a single included 9V battery and features an automatic power-off function to preserve battery life.
What is included in the package with the 37XR-A?: You receive the 37XR-A multimeter, test leads with threaded alligator clips, Magne-Grip holster with magnetic hanging strap, spare fuse, and 9V battery.
