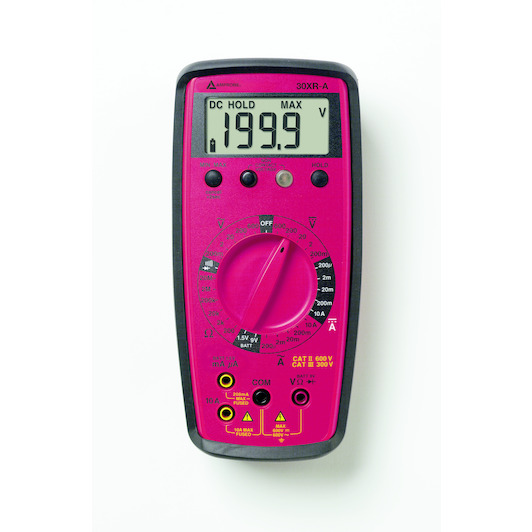

Scope of delivery 30XR-A multimeter Test leads (TL36A) 9 V battery (installed) Magne-Grip Holster with magnetic hanging strap Spare fuse Product Description For non-contact voltage testing, Amprobe 30XR-A Digital Multimeter offers Voltect non-contact voltage technology built into the 30XR-A along with a full complement of measurement functions. Non-contact voltage detector Separate door for easy battery and fuse access Manual ranging; display: 3-1/2 digit LCD, 1999 counts Display update rate: 2.5/sec, nominal Power battery: 9 V NEDA 1604, JIS 006P, IEC 6F22 Operating temperature: 0 °C to 45 °C at < 70 % R.H. Storage temperature: -20 °C to 60 °C, 0 to 80 % R.H. with battery removed from meter Low battery indication Overrange indication Min/max and data Hold
Key features according to our expert
Max. voltage AC/DC: 500 V
Measurement temperature: No
Digital: Yes
Battery type: 9V
Low battery message: Yes
Automatic shut-off: No
With current clamp: No
Diode test: Yes
Continuity test: Yes
Max. current AC/DC: 10 A
Measurement Lo-Z: No
Measurement of noise: No
Measurement of electrical capacity: No
Measurement frequency: No
Measurement resistance: Yes
Current measurement: Yes
Measurement voltage: Yes
Max. resistance: 20 MOhm
Specifications / All features
Brand:
BEHA-AMPROBE
02910896
EAN:
0095969365369
Supplier number:
BEHA-AMPROBE 2727774
Max. voltage ac/dc
500 V
Measurement temperature
No
Digital
Yes
Battery type
9V
Low battery message
Yes
Automatic shut-off
No
With current clamp
No
Diode test
Yes
Continuity test
Yes
Max. current ac/dc
10 A
Measurement lo-z
No
Measurement of noise
No
Measurement of electrical capacity
No
Measurement frequency
No
Measurement resistance
Yes
Current measurement
Yes
Measurement voltage
Yes
Max. resistance
20 MOhm
