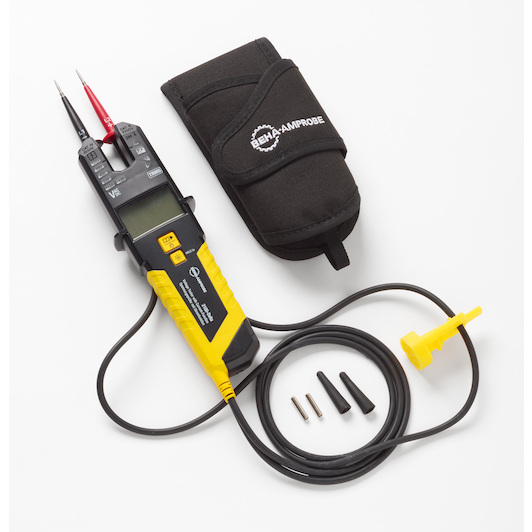

Scope of delivery
- 1x current/voltage tester
- 2x GS 28 caps
- 2x 4 mm extension piece for probe
- 2x AAA alkaline batteries
- 1x user manual

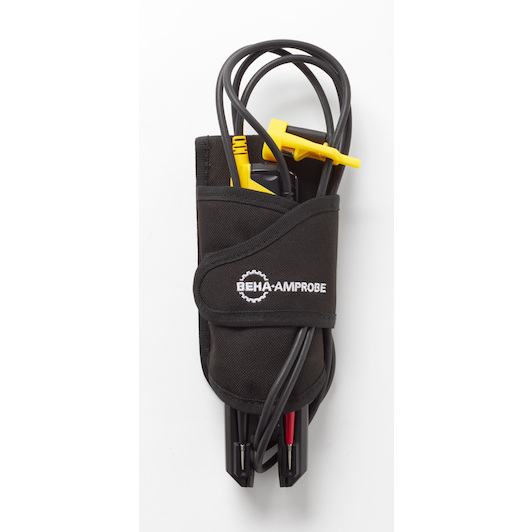

- 1x holster
Product description
- Splash and dust proof (IP64), allowing the instrument to be used in humid conditions
- LCD display and LED indicators
- Polarity indicator
- Automatic ON/OFF switching and ON/OFF button
- Self-test function for checking all LEDs, torch, buzzer, vibration, all symbols on LCD and backlighting
- Buzzer and vibration function during voltage measurements
- TRMS
- Open jaws for quick and easy current measurement
- Safety specification CAT III 1000 V / CAT IV 600 V
- Built according to IEC 61243-3:2014, NEN-EN-IEC 61243-3:2014, DIN VDE 0682-401:2015
- GS quality mark from TÜV Rheinland
- Data Hold
- Flashlight/illumination of the measuring area for work in poorly lit environments with white LED
Functions
- TRMS voltage and polarity test up to 1000 V AC / 1500 V DC
- Current measurement TRMS up to 200 A AC - the perfect instrument for maintenance and troubleshooting
- Voltage mode for measuring AC/DC voltage up to 1 V
- Single-pole phase test for determining the phase conductor
- Continuity test (Rx) for checking the wiring
- Low resistance indication (L Rx) (<20 Ohm) - the key instrument for checking wiring in contactor and relay applications without influence of the coils
- Phase rotation indication with two probes - no third hand required. Separate indicators for rotation "right" and "left"
- Resistance measurement up to 100 kOhm
- Frequency measurement up to 800 Hz
- Diode test

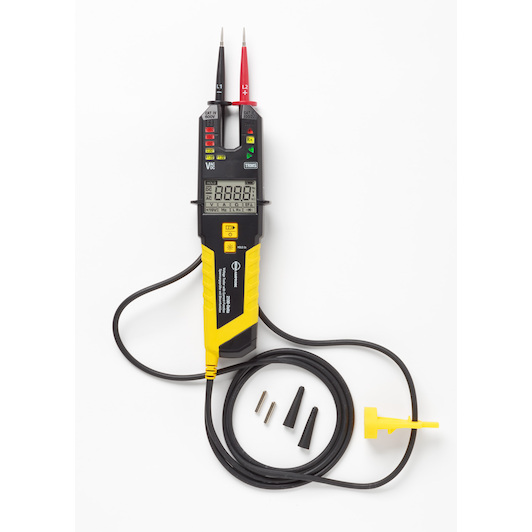

Beha-Amprobe completes the 2100 series of voltage testers with the 2100-Delta, a robust TRMS voltage tester with extended functions and a current function. Safety specification up to CAT III 1000 V / CAT IV 600 V, making it the ideal solution for fault finding in industrial and commercial environments. Use it to check voltage, current, resistance, continuity and frequency, all in one instrument. While testing for voltage, securely connect the measuring probes to the top of the instrument's housing, giving you an extra hand. The 2100-Delta checks current up to 200 A AC by sliding the fixed jaw around the conductor without interrupting the circuit. And of course, like the 2100-Alpha, 2100-Beta and 2100-Gamma, the 2100-Delta is equipped with reinforced components for reliable performance. The 2100-Delta meets protection class IP 64, is built to EN 61243-3:2014 standard for (voltage) testers and is GS-approved.
