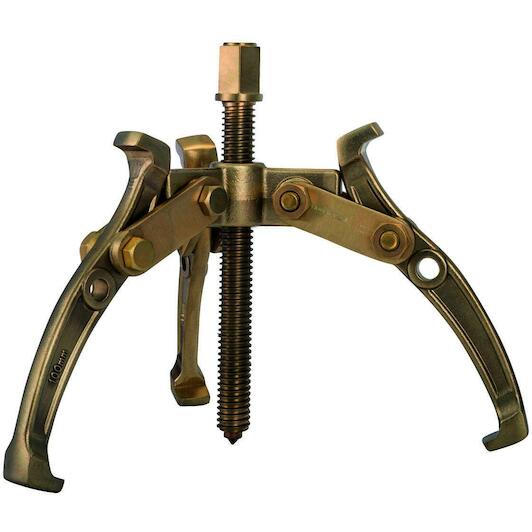

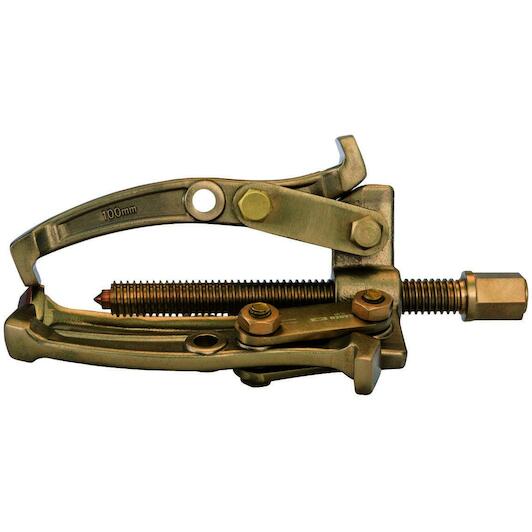

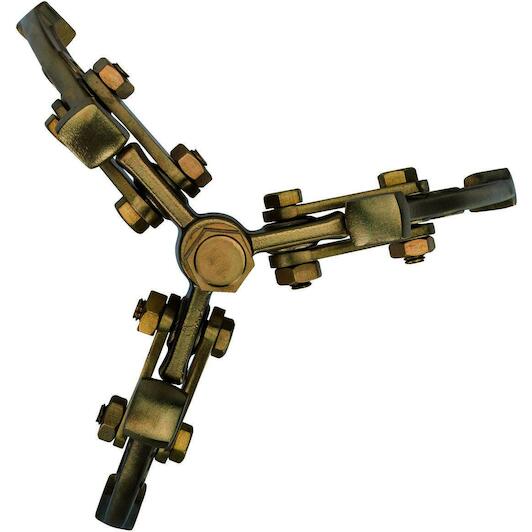

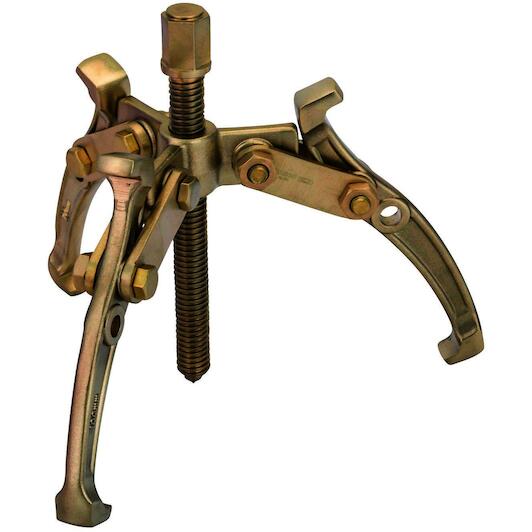

BAHCO NS810-350 trigger reversible 3-arm sparkproof aluminium bronze 80-350 mm

Supplier number: BAHCO NS810-350 | EAN 7314150318698
Recommended Retail Price €3,028.70
1,849.95 tax incl.
€1,528.88 excl. VAT (incl. all environmental contributions)
On order: delivered from 13/10/2026



€1,849.95
tax incl.

Product information

Key features according to our expert

  • Max. width: 350 mm
  • Hydraulical: No
  • Number of hooks: 3
  • Max. height: 320 mm

Product description:

  • Spark-free 3-jawed reversible trigger made of aluminium bronze, 80-350 mm

Features:

  • Made of aluminium bronze (softer and magnetic)
  • Especially for pulling ball bearings, pulleys and gears etc. in confined spaces
  • Forged
  • Spark-free tool designed for use in explosive environments, where 'traditional' steel tools can cause sparks

All Features

Max. width
350 mm
Hydraulical
No
Number of hooks
3
Max. height
320 mm
Length mm (l)
80-350 mm
Weight g
9070 g
Width mm (a)
80-350 mm
Width extractor mm
80-350 mm
Maximum loading capacity kn
40 kN
Extractor height mm
320 mm
Maximum loading capacity to
4 to
Arm length mm
320 mm
Hexagon size mm
26 mm
Spare spindle type & size mm
M24x2,5x355 mm
