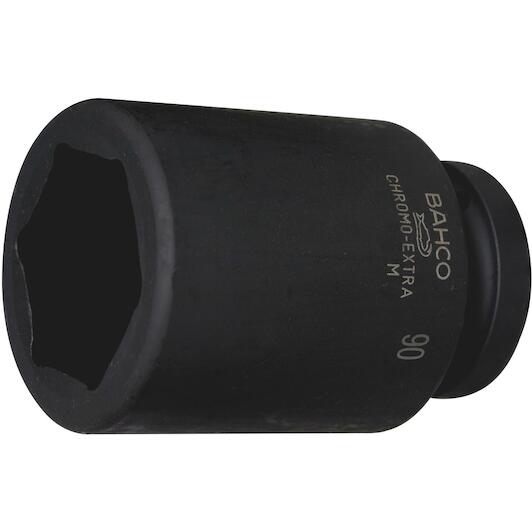

BAHCO K9806Z-2.3/8 percussion cap 1.1/2" long hexagon phosphated 2-3/8"

Show more features

Socket size

2 3/8"

Connection size

1 1/2"

Length

133,4 mm

Type of drive profile (socket)

Hexagonal

Hexagon size inch

2 3/8 in

Clamping spring

K560F-8

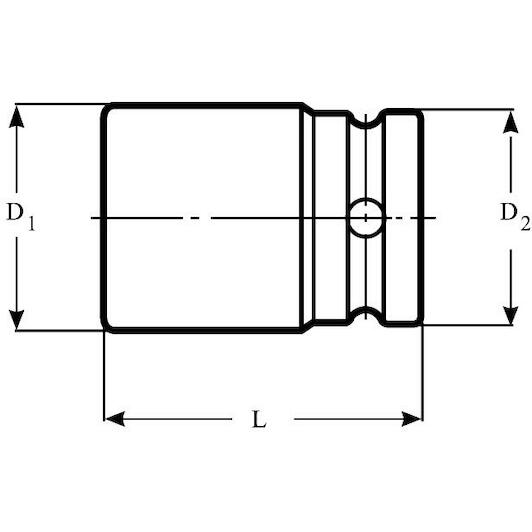

Socket width mm (d1)

93,7 mm

Square drive width mm (d2)

82,6 mm

Length mm (l)

133.4 mm

Depth female hexagon drive mm (t)

39,8 mm

Norms

DIN 3129 / ISO 2725 / DIN 3121-H 40 / ISO 1174

Weight g

4300 g
